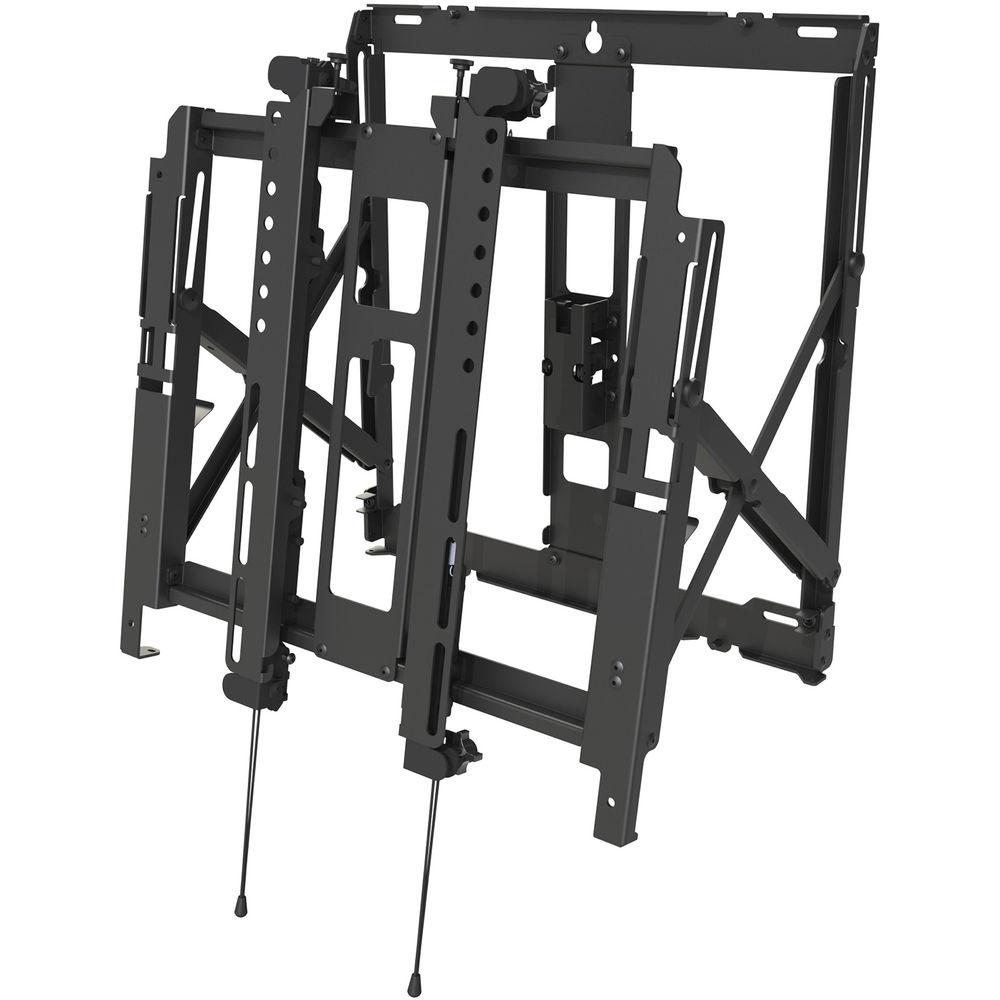

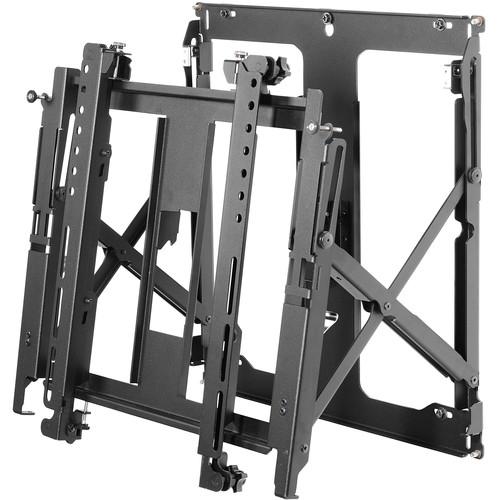

User Manual for Peerless-AV Full-Service Quick Release Thin Video Wall Mount for 40 to 65" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV Full-Service Quick Release Thin Video
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
 |
User manual for the Peerless-AV Full-Service Quick Release Thin Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

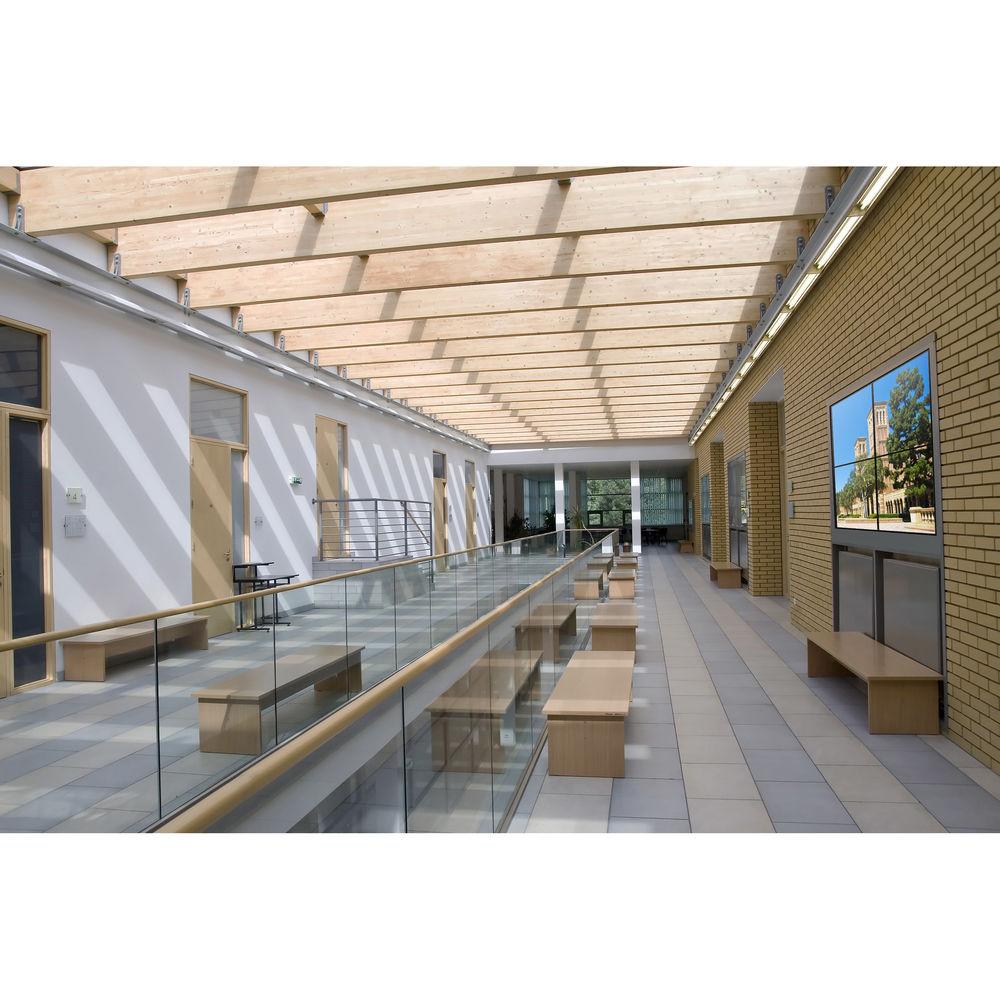

Product description Provided by third party: The DS-VW755S slim full service video wall mount with quick release offers an easy to install and service ADA compliant solution for both landscape and portrait displays that measure 2" deep or less. Designed for quick service access in recessed video wall applications, the DS-VW755S provides versatility demanded by today's integrator. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. Featuring tool-less micro adjustment at eight points, the mounts can overcome uneven walls to create a seamless video wall display. To aid in set up and service, the mount extends the display from the wall in a negative tilt position, providing convenient access to the bottom of the display. In addition, reusable custom wall plate spacers eliminating the guesswork and on-site installation calculations and measurement reducing installation time and cost. With no-tool-required micro-adjustments and easy display access for quick serviceability, it's the ultimate video wall mounting solution. UPC: 735029302438 In the Box Peerless-AV Full-Service Quick Release Thin Video Wall Mount for 40 to 65" Displays 5 Year Limited Warranty Brochure PDF 311.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Full-Service Quick Release Thin Video Wall Mount for 40 to 65" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DS-VW755S Specs | | | Device Supported | Flat Panel Display | | Maximum Load Capacity | 80 lb | | Minimum Screen Size Supported | 40" | | Maximum Screen Size Supported | 65" | | Features | Adjustable
Articulating
Cable Management
Extendable
Quick Release Mechanism
Tilt | | | | Color | Black | | VESA Mount Compatible | Yes | | VESA Mount Standard | 200 x 200
400 x 400 | | Height | 20" | | Width | 20" | | Depth | 2.6" | | Weight (Approximate) | 20 lb | | | | Certifications & Standards | ADA | | Environmentally Friendly | Yes | | Environmental Certification | RoHS | | Country of Origin | United States | | | | Package Weight | 25.6 lb | | Box Dimensions (LxWxH) | 22.5 x 22.0 x 5.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
