User Manual for Peerless-AV Full-Service Video Wall Mount for 40 to 65" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV Full-Service Video Wall Mount for
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
 |
User manual for the Peerless-AV Full-Service Video Wall Mount for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

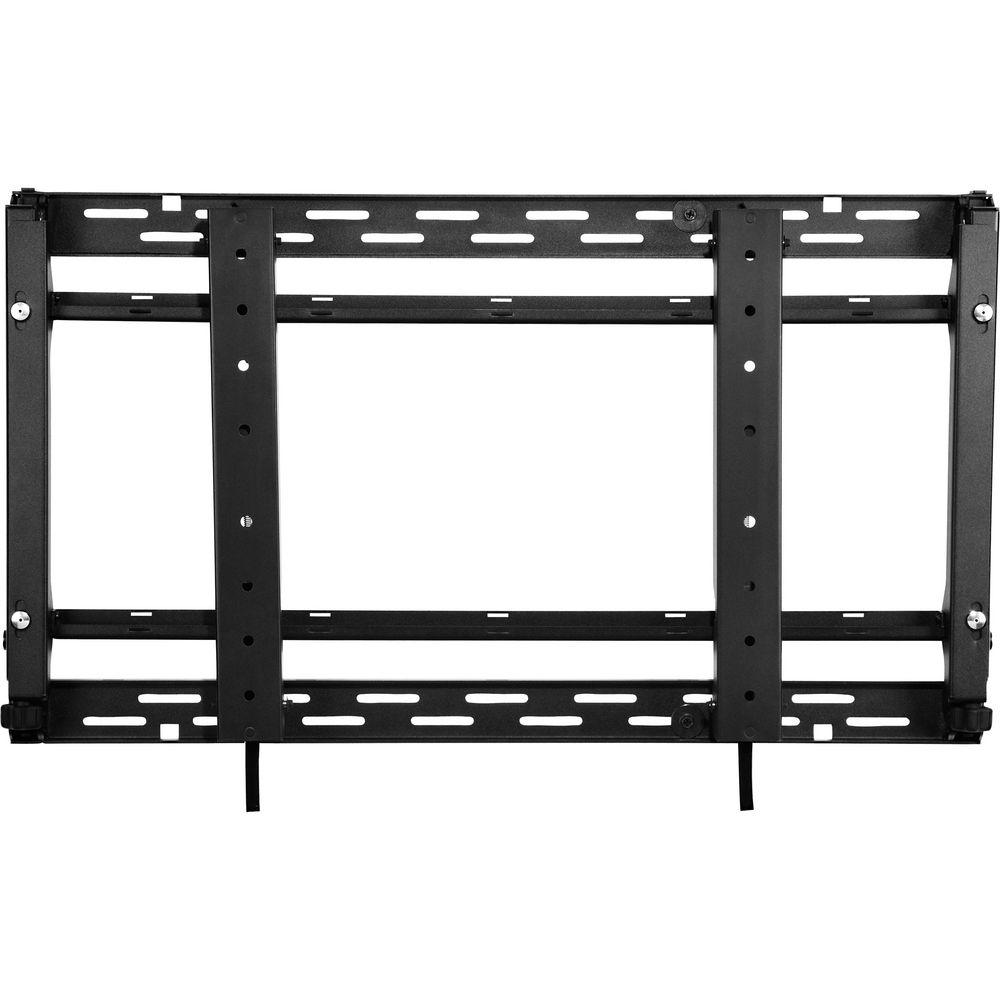

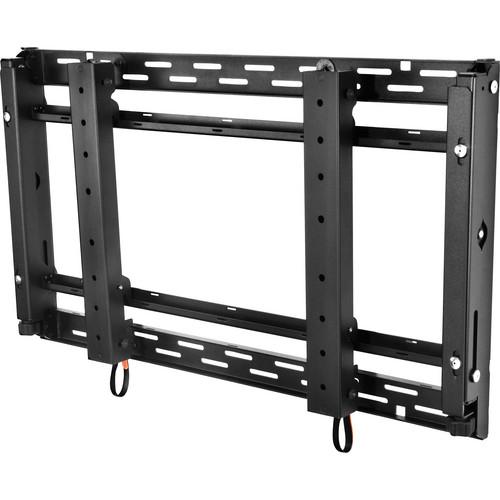

Product description The Peerless Industries Full-Service Video Wall Mount for 40 to 65" Displays holds flat-panel displays up to 150 lb (68 kg) in landscape display orientation to form a perfectly spaced video wall.
An innovative pull-out/prop-open hinge mechanism provides rapid service access to individual displays in a video wall, while the spring-loaded mechanism smoothly places the display back in place. Custom wall plate spacers ensure easy and quick installation of additional mount on the wall, saving tedious measurement time. The Full-Service Mount offers tool-less micro-adjustments at 8 points for precise and effortless alignment of the displays. Displays and mounts can sit flush against the wall, providing a neat look to the setup. Note: Wall Plate Spacers sold separately. - Video Wall Mounting
-
- Provides best viewing positions to flat-panel displays ranging from 40 to 65" (102 to 165 cm)
- Can hold displays up to 150 lb (68 kg)
- Allows you to create video walls in any number of configurations
- Landscape display position
- Quick Screen Access
-

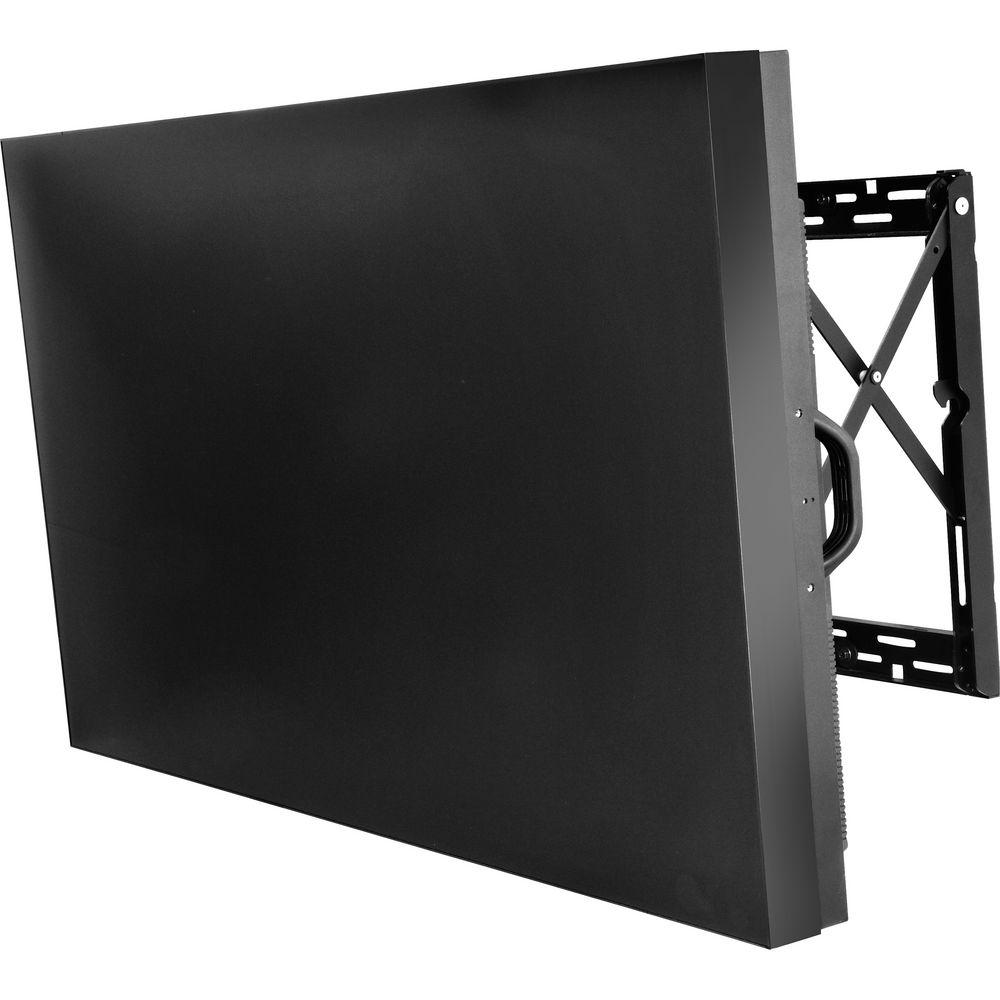

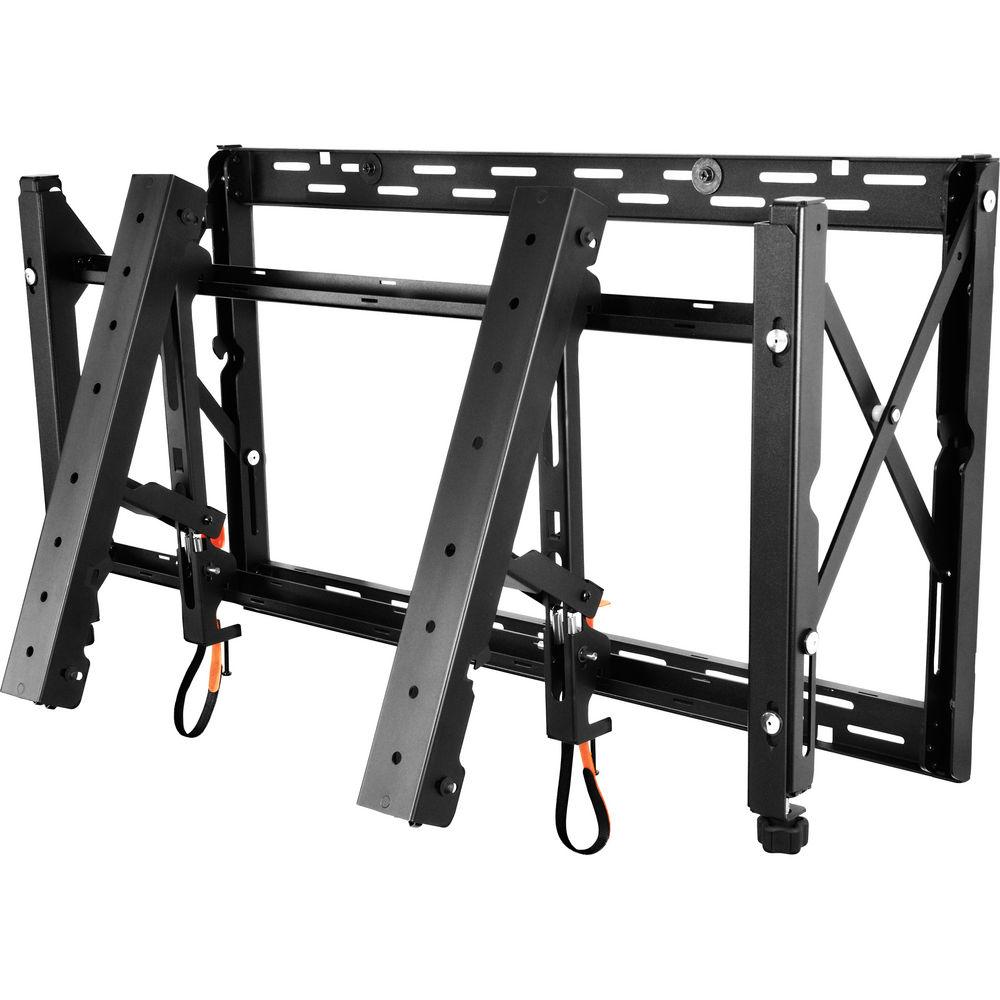

- Pull-out/prop-open hinge mechanism provides rapid service access to individual displays in a video wall
- Spring-loaded mechanism smoothly places the display back in place
- Easy Setup
-
- Custom wall plate spacers (not included) save tedious measurement time

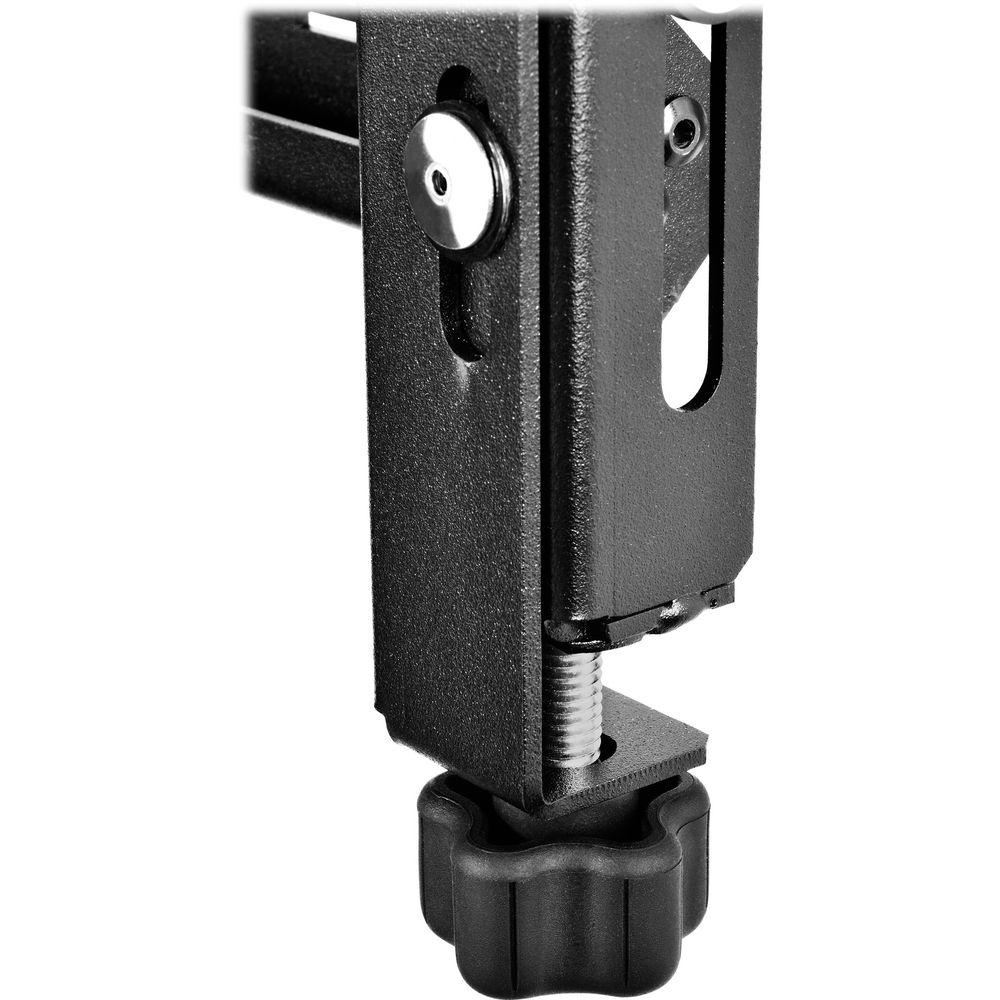

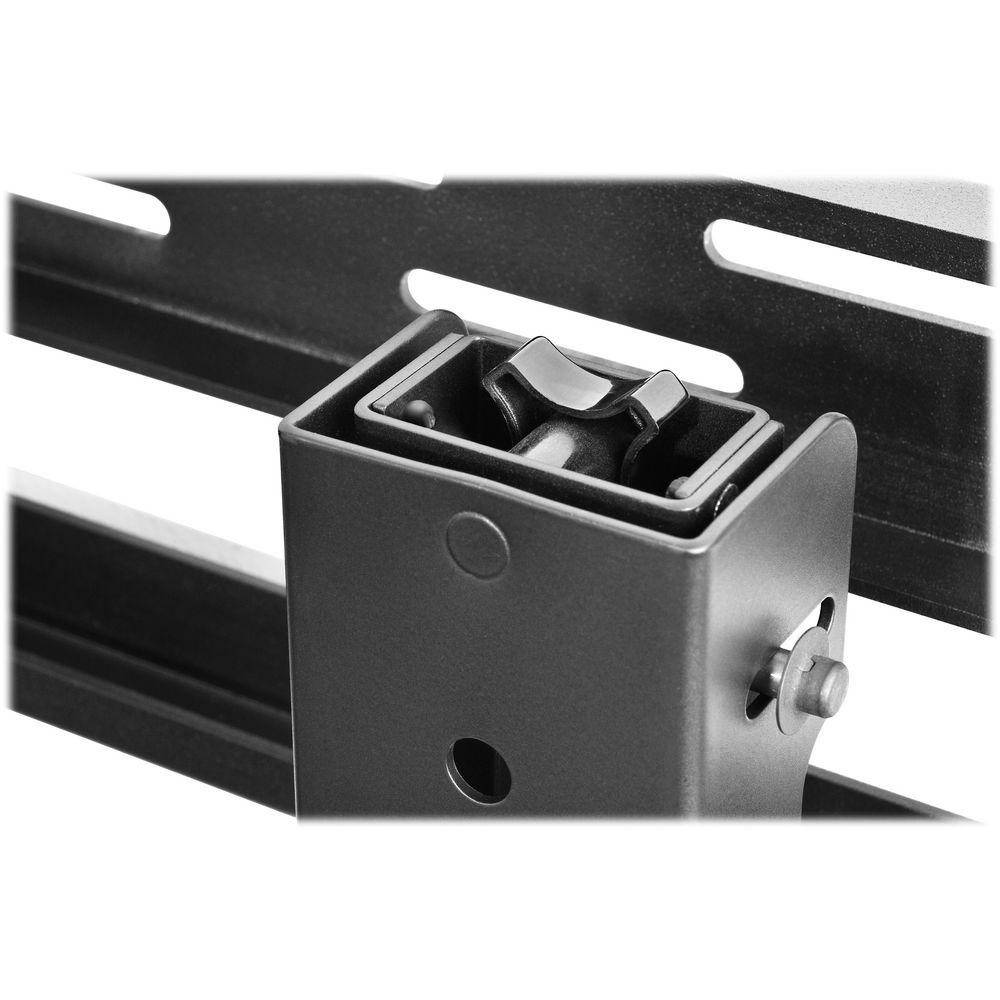

- Tool-less micro-adjustments at 8 points for precise and effortless alignment of the displays
- Clutter-free Look
-
- Displays and mounts can sit flush against the wall, providing a neat look to the setup
- Open wall plate architecture offers increased electrical and cable management options
- Integrated cable management tie-backs organize cables
- Monitor Mounting
-
- Adjustable VESA mounting hole patterns in 100 mm increments, starting at 200 x 200 mm up to 700 x 400 mm
- Additional VESA patterns are supported with adapter plates
- Security hardware for preventing the mount from extending out from the wall
UPC: 735029278771 In the Box Peerless-AV Full-Service Video Wall Mount for 40 to 65" Displays Wall Mount Assembly Mounting Attachment Rails Fasteners 5-Year Limited Warranty Brochure PDF 304.8kbbcwvzqrezys Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Full-Service Video Wall Mount for 40 to 65" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DS-VW765-LAND Specs | | | Supported Screen Sizes | 40 to 65" / 102.0 to 165.0 cm | | Supported Weight Capacity | 150 lb / 68.2 kg | | Number of Displays Supported | 1 | | | | Distance from Mounting Surface | 3.1 to 3.8" / 7.8 to 9.7 cm | | Dimensions | 35 x 20 x 3.1" / 89 x 50.8 x 7.8 cm | | Weight | 39.0 lb / 18.0 kg | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 36.0 x 22.0 x 3.6" |
