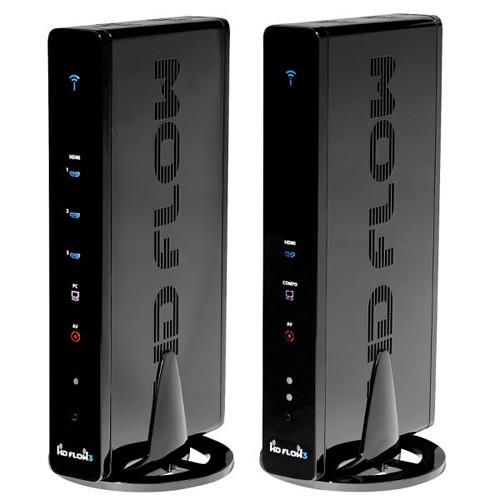

User Manual for Peerless-AV HDS300 PeerAir Pro Wireless A V Multi-Display System Click to enlarge the picture
Contents of the user manual for the Peerless-AV HDS300 PeerAir Pro Wireless A
- Product category: Wireless A/V Transmitters & Receivers Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Wireless A/V Transmitters & Receivers
|
User manual for the Peerless-AV HDS300 PeerAir Pro Wireless A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description Wirelessly stream your HD content with the Peerless-AV HDS300 PeerAir Pro Wireless A/V Multi-Display System. It supports up to 1080p at 60 Hz and will transmit up to 210' on its own Wi-Fi network, so it won't interfere with or bog down your network. It can also transmit via Ethernet. The transmitter has three HDMI inputs and the receiver has one HDMI output. It includes one receiver but can transmit to up to six receivers at a time. - Full HD 1080p (60 Hz, 24/30 fps) and passive 3D signal flow, suitable for fast signal streaming
- Streaming up to 210' with no reduction of picture quality
- Multicast to up to six PeerAir Pro wireless receivers
- Transmits through walls and ceilings for multi-room streaming capability
- The PeerAir Pro (802.11n) creates its own network without interfering with existing Wi-Fi networks
- Built-in IR does not require line-of-sight placement to control source devices such as a DVR/ set-top box, satellite box, Blu-ray/DVD player, media server, VCR, or game console
- Plug and play setup requires no software or driver installation
UPC: 735029305026 In the Box Peerless-AV HDS300 PeerAir Pro Wireless A/V Multi-Display System Transmitter Receiver Remote Control and Battery Component Video Adapter IR Flasher IR Extender 2 x Stands 2 x Power Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV HDS300 PeerAir Pro Wireless A V Multi-Display System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV HDS300 Specs | Transmission Format | Wi-Fi IEEE 802.11n | | Wireless Frequency Range | 5.18 to 5.25 and 5.75 to 5.81 GHz | | Wireless Range | 210' (64 m) | | Broadcasting Number of Locations | 1 transmitter to up to 6 receivers | | Security | WPA2 Personal and AES | | Antenna Type | Transmitter: 2 x Internal antennas
Receiver: 2 x Internal antennas
MIMO interface | | Latency | 40 ms | | Supported Resolutions | Up to 1080p, 60 Hz | | Audio Support | 2-channel linear PCM
Analog, 48 kHz, 16-bit ADC | | Encoding | H.264 Baseline Profile with Level 4.2
HDCP compliant | | Transmitter Input/Output | 3 x HDMI in
1 x HDMI out (pass-through for local display from HDMI 1 input)
1 x VGA in (supports component and composite video with included adapter)
1 x 1/8" (3.5 mm) computer audio in
1 x 1/8" (3.5 mm) IR out
1 x Ethernet LAN
1 x USB in for service | | Receiver Input/Output | 1 x HDMI out
1 x RCA composite video out
1 x RCA component video out
1 x 1/8" (3.5 mm) audio out
1 x 1/8" (3.5 mm) IR in
1 x Ethernet LAN
1 x USB in for service | | IR Flashers | 3 | | IR Frequency Range | 31, 38, 47, 58 kHz | | LEDs | Transmitter: 5 x Port IDs
1 x Power
1 x Link
Receiver: 3 x Port IDs
1 x Power
1 x Link | | Remote Control | 17-button IR remote | | Housing | Plastic | | Finish | Black gloss | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | 12 VDC, 2 A | | Dimensions | Transmitter: 1.25 x 7.63 x 4.5" (31 x 193 x 114 mm)
Receiver: 1.25 x 7.63 x 4.5" (31 x 193 x 114 mm) | | Weight | Transmitter: 1.36 lb (0.62 kg)
Receiver: 1.36 lb (0.62 kg) | | | | Package Weight | 3.16 lb | | Box Dimensions (LxWxH) | 10.1 x 6.9 x 4.95" |
