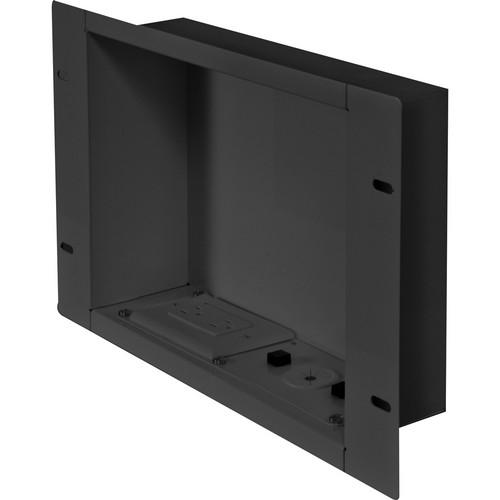

Product description The gloss black Peerless-AV In-Wall Cable Management and Storage Box with Surge-Protected Duplex Receptacle is designed to create additional storage space behind the TV to conceal power and A/V cables. With its in-wall design, it can be placed behind your flat panel TV, amplifier, or other A/V devices to manage low-voltage cables such as HDMI or RCA routed through the wall. When placed vertically, the box can be installed between 16" wood-stud centers of drywall.
The box's cold-rolled steel construction is designed to provide durability and offers a maximum load capacity of 25 lb. It includes a receptacle knock-out and a surge-protected duplex power module as well as cable ties and a grommet to provide an organized look. - 15A / 125V duplex receptacle power source featuring surge protection with NEMA 5-15R
- Low-profile design fits behind thin mounts and flat-panel displays
- Cables routed inside the wall
- Installs between 16" wood stud centers when positioned vertically
- Makes outside cable covers unnecessary
- Creates more usable space behind the screen for cable and power management
- Cold-rolled steel construction
- Cable ties and grommet included for an organized finish
- Position horizontally or vertically for your preferred look
- Includes Leviton Smart Grid tamper-resistant surge outlet and galvanized outlet box
- Removable outlet receptacle and cable management access plate
UPC: 735029275817 In the Box Peerless-AV In-Wall Cable Management and Storage Box with Surge-Protected Duplex Receptacle (Gloss Black) Leviton Duplex Power Receptacle Galvanized Outlet Box with Knockouts Mounting Hardware Cable Management Ties Grommet Limited 5-Year Warranty Brochure PDF 199.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV In-Wall Cable Management and Storage Box with Surge-Protected Duplex Receptacle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV IBA2AC Specs | | | Load Capacity | 25 lb (11.33 kg) | | Installation | Between 16" (406 mm) wood stud centers when positioned vertically | | Construction Material | Cold-rolled steel | | Finish | Scratch-resistant fused epoxy | | Dimensions (W x H x D) | Usable Space: 13.1 x 9.6 x 3.76" (33 x 244 x 96 mm)
Overall, Without Power Receptacle: 17.42 x 11 x 3.76" (442 x 279 x 96 mm)
Overall, With Power Receptacle: 17.42 x 12.25 x 3.76" (442 x 311 x 96 mm) | | Weight | 6.5 lb (2.94 kg) | | | | Voltage | 125 V | | Amperage | 15 A | | Joule Rating | 720 | | Dielectric Withstanding Voltage Test | 2000 V per UL498B | | Maximum Surge Current | L-N: 18 kA
L-G: 9 kA
N-G: 9 kA | | SCCR Rating | 5000 A | | Operating Voltage | Maximum Continuous: 150 | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 20.3 x 12.2 x 4.8" |
