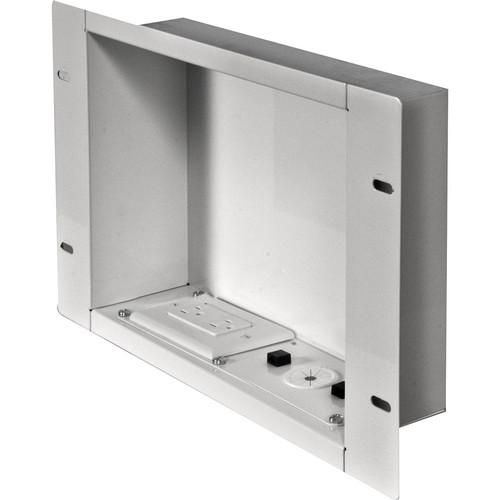

User Manual for Peerless-AV In-Wall Cable Management and Storage Box with Surge-Protected Duplex Receptacle Click to enlarge the picture
Contents of the user manual for the Peerless-AV In-Wall Cable Management and Storage
- Product category: Mount Add-Ons Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Mount Add-Ons
|
User manual for the Peerless-AV In-Wall Cable Management and Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The white Peerless-AV In-Wall Cable Management and Storage Box with Surge-Protected Duplex Receptacle is designed to create additional storage space behind the TV to conceal power and A/V cables. With its in-wall design, it can be placed behind your flat panel TV, amplifier, or other A/V devices to manage low-voltage cables such as HDMI or RCA routed through the wall. When placed vertically, the box can be installed between 16" wood-stud centers of drywall.
The box's cold-rolled steel construction is designed to provide durability and offers a maximum load capacity of 25 lb. It includes a receptacle knock-out and a surge-protected duplex power module as well as cable ties and a grommet to provide an organized look. - 15A / 125V duplex receptacle power source featuring surge protection with NEMA 5-15R
- Low-profile design fits behind thin mounts and flat-panel displays
- Cables routed inside the wall
- Installs between 16" wood stud centers when positioned vertically
- Makes outside cable covers unnecessary
- Creates more usable space behind the screen for cable and power management
- Cold-rolled steel construction
- Cable ties and grommet included for an organized finish
- Position horizontally or vertically for your preferred look
- Includes Leviton Smart Grid tamper-resistant surge outlet and galvanized outlet box
- Removable outlet receptacle and cable management access plate
UPC: 735029275831 In the Box Peerless-AV In-Wall Cable Management and Storage Box with Surge-Protected Duplex Receptacle (White) Leviton Duplex Power Receptacle Galvanized Outlet Box with Knockouts Mounting Hardware Cable Management Ties Grommet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV In-Wall Cable Management and Storage Box with Surge-Protected Duplex Receptacle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV IBA2AC-W Specs | | | Load Capacity | 25 lb (11.33 kg) | | Installation | Between 16" (406 mm) wood stud centers when positioned vertically | | Construction Material | Cold-rolled steel | | Finish | Scratch-resistant fused epoxy | | Dimensions (W x H x D) | Usable Space: 13.1 x 9.6 x 3.76" (33 x 244 x 96 mm)
Overall, Without Power Receptacle: 17.42 x 11 x 3.76" (442 x 279 x 96 mm)
Overall, With Power Receptacle: 17.42 x 12.25 x 3.76" (442 x 311 x 96 mm) | | Weight | 6.5 lb (2.94 kg) | | | | Voltage | 125 V | | Amperage | 15 A | | Joule Rating | 720 | | Dielectric Withstanding Voltage Test | 2000 V per UL498B | | Maximum Surge Current | L-N: 18 kA
L-G: 9 kA
N-G: 9 kA | | SCCR Rating | 5000 A | | Operating Voltage | Maximum Continuous: 150 | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 14.6 x 12.7 x 3.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
