User Manual for Peerless-AV MOD-FCS2KIT300-B Modular Series Dual Pole Floor-to-Ceiling Kit for 46 to 90" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV MOD-FCS2KIT300-B Modular Series Dual Pole
- Product category: Monitor Floor Stands Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Floor Stands
|
User manual for the Peerless-AV MOD-FCS2KIT300-B Modular Series Dual Pole contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

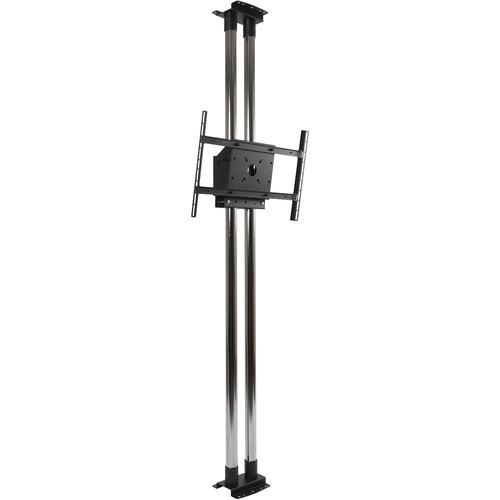

Product description The Peerless Industries MOD-FCS2KIT300-B Modular Series Dual Pole Floor-to-Ceiling Kit includes two flat ceiling/floor plates, two 9.8’ extension poles, single display mount, display stacking clamp, and a large universal adapter. The kit features a full range of products to mount 46 to 90" displays with a limited number of components. The universality of the components allows you to configure your own custom flat-panel display or projector mounting solution for different applications.The 2" diameter support poles can be easily cut to length on the jobsite making it suitable for new projects as well as for upgrading existing installations. The MOD-FCS2KIT300-B Floor-to-Ceiling Mount Kit helps you create precise installations. - Heavy-duty flat floor/ceiling plate securely mounts to wood or concrete ceilings and floors
- Included universal display adapter for 46 to 90" displays with VESA mounting patterns from 200 x 200 to 600 x 400mm
- Display can be positioned at any point along the height of the poles
- Modular design allows additional displays to be stacked on the dual poles
- Integrated cable management allows cables to run through poles with open access at both ends for ease-of-use
- Dual poles provide added stability with heavier and larger displays
- Black colored poles match your décor
- Quick connect design Includes simple hook-on feature, with 20° to -5° tilt and locks at every 5° increment
UPC: 735029301776 In the Box Peerless-AV MOD-FCS2KIT300-B Modular Series Dual Pole Floor-to-Ceiling Kit for 46 to 90" Displays (Black Poles) 2 x Flat Ceiling/Floor Plate 2 x 9.8' (3.0m) Extension Pole Single Display Mount Display Stacking Clamp Large Universal Adapter Limited 5-Year Warranty Brochure PDF 285.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV MOD-FCS2KIT300-B Modular Series Dual Pole Floor-to-Ceiling Kit for 46 to 90" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV MOD-FCS2KIT300-B Specs | Weight Capacity | 211 lb (96 kg) per display For multi-screen applications the max system load is 411 lb (192 kg) with a maximum of 3 displays positioned on one side of the poles or 6 displays back to back. | | Screen Size | 46 to 90" (117 to 229 cm) | | Mounting Pattern | 600 x 400 mm | | VESA Pattern | 200, 300 x 200, 300, 400 x 200, 400 x 300, 400, 600 x 400 | | Tilt | 20°/-5° | | Dimensions | 24.6 x 120.9 x 7.5" (62.4 x 307.1 x 19.0 cm)
Pole Diameter: 2.0" (5.1 cm)
Pole Length: 9.8' (3.0 m) | | Weight | 51.1 lb (23.2 kg) | | | | Package Weight | 56.0 lb | | Box Dimensions (LxWxH) | 122.3 x 13.0 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
