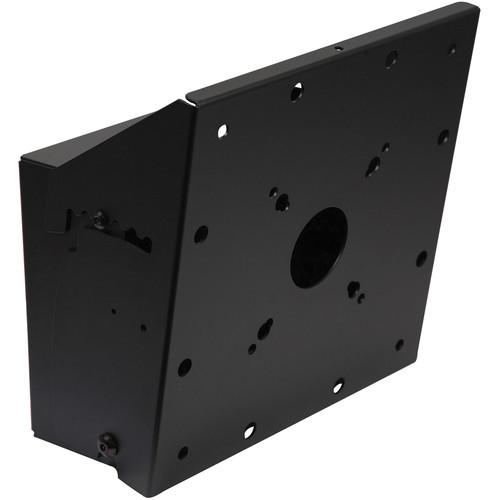

User Manual for Peerless-AV MOD-FPMS2 Modular Dual Pole Tilt Box Click to enlarge the picture
Contents of the user manual for the Peerless-AV MOD-FPMS2 Modular Dual Pole Tilt
- Product category: Monitor Pole & Truss Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Pole & Truss Mounts
|
User manual for the Peerless-AV MOD-FPMS2 Modular Dual Pole Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The black MOD-FPMS2 Modular Dual Pole Tilt Box from Peerless Industries was developed with the professional AV installer in mind. Designed around a 2" diameter pole, the box is the ideal solution for mounting a display. Once installed, a display can be mounted in landscape or portrait orientation. - Single display mounting solution for 46-90" displays (MOD-UNL2 may be required)
- VESA pattern 200 x 200mm compliant (Requires ACC925 display mounting hardware)
- Accommodates Peerless-AV PLP adapter plate mounting
- +20/-5° tilt lockable in 5° increments
- Internal cable management
- Display can be mounted in landscape or portrait orientation
UPC: 735029301158 In the Box Peerless-AV MOD-FPMS2 Modular Dual Pole Tilt Box (Black) Tilt Box Tilt Plate 4 x M8 x 15mm Socket Pin Screw 2 x Support Collar 4 x M5 x 10mm Self-Tapping Screw 4mm Allen Wrench Limited 5-Year Warranty Brochure PDF 208.8kbwrrfxxxsaactuyrdrsvwdd Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV MOD-FPMS2 Modular Dual Pole Tilt Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV MOD-FPMS2 Specs | Number of Displays | 1 | | Mounting-Hole Pattern | 200 x 200 mm | | Maximum Screen Size | 90" / 228.6 cm | | Minimum Screen Size | 46" / 116.8 cm | | Bracket Load Capacity | 211 lb / 95.7 kg | | Tilt Adjustment | -5 to 20° | | Maximum Extension | None | | Dimensions (W x H x D) | 10.4 x 9.6 x 4.0" / 264.1 x 243.8 x 101.6 mm | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 12.5 x 10.1 x 4.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
