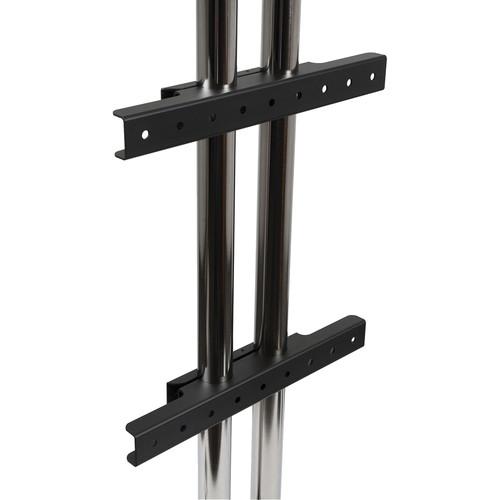

User Manual for Peerless-AV Modular Dual Pole Fixed Display Mount Wall Mount Interface Click to enlarge the picture
Contents of the user manual for the Peerless-AV Modular Dual Pole Fixed Display
- Product category: Monitor Pole & Truss Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Pole & Truss Mounts
|
User manual for the Peerless-AV Modular Dual Pole Fixed Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The black MOD-AWM2 Modular Dual Pole Fixed Display Mount / Wall Mount Interface from Peerless Industries is designed around a 2" diameter pole. The MOD-AWM2 provides modular support for standard flat, tilt, and wide wall mount wall plates. It also has VESA 200, 300, and 400 mounting holes for usage as mount without other hardware. - 211 pounds max weight capacity when used as a display mount
- VESA 200, 300, and 400 mounting holes
- Allows fitment of flat, tilt and video wall mounts onto the modular dual pole system
- When used as a display mount, displays can be mounted in portrait or landscape orientation
UPC: 735029301097 In the Box Peerless-AV Modular Dual Pole Fixed Display Mount / Wall Mount Interface (Black) 2 x Support Clamp 2 x Clamp Adapter 4 x M6 Hex Nut 4 x M5 x 16mm Self Tapping Screw 4 x M6 x 12mm Hex Head 4 x M6 x 40mm Bolt 4mm Allen Wrench Limited 5-Year Warranty Brochure PDF 240.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Modular Dual Pole Fixed Display Mount Wall Mount Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV MOD-AWM2 Specs | Number of Displays | 1 | | Mounting-Hole Pattern | 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm | | Maximum Screen Size | 90" / 228.6 cm | | Minimum Screen Size | 46" / 116.8 cm | | Bracket Load Capacity | 211 lb / 95.7 kg | | Maximum Extension | None | | Dimensions (W x H x D) | 18.0 x 2.0 x 3.4" / 457.2 x 50.8 x 86.3 mm | | Weight | 6.5 lb / 3.0 kg | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 25.0 x 4.0 x 4.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
