User Manual for Peerless-AV Modular Series Ceiling Mount Kit for 39 to 75" Flat-Panel Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV Modular Series Ceiling Mount Kit
- Product category: Monitor Ceiling Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Ceiling Mounts
 |
User manual for the Peerless-AV Modular Series Ceiling Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

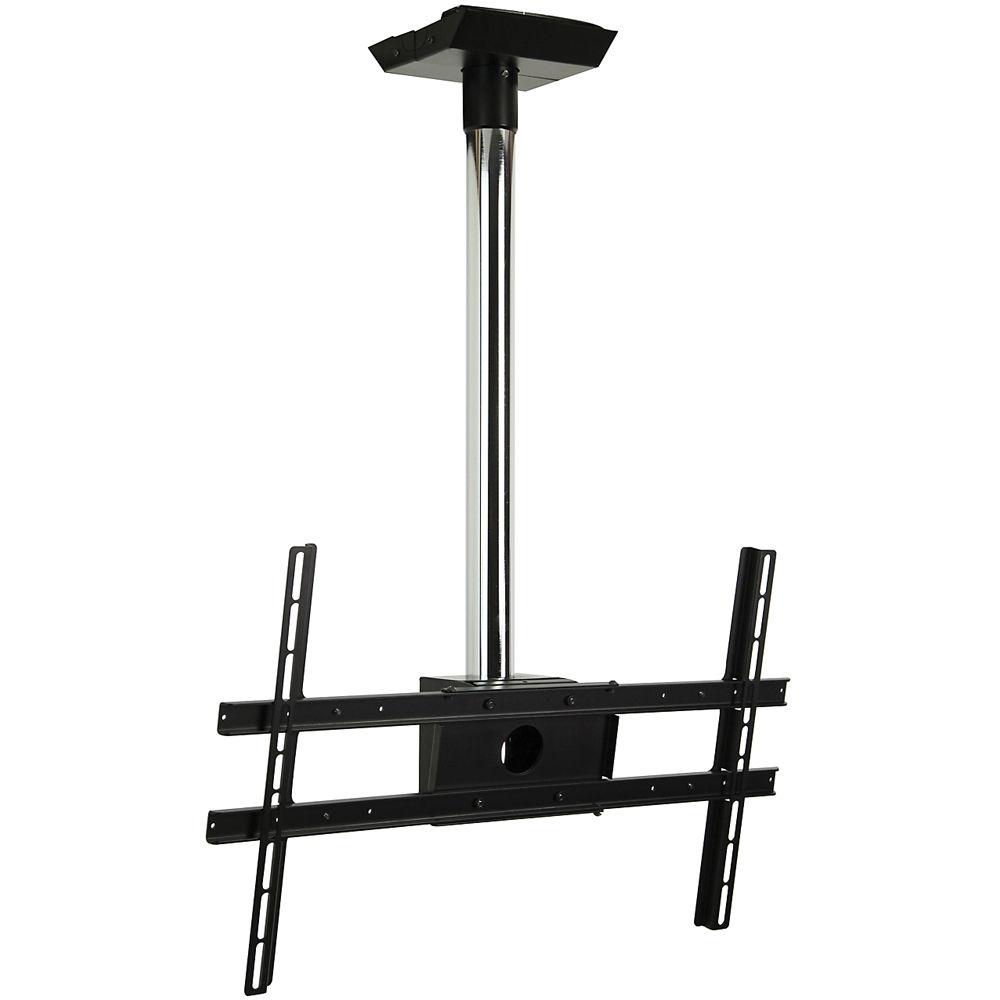

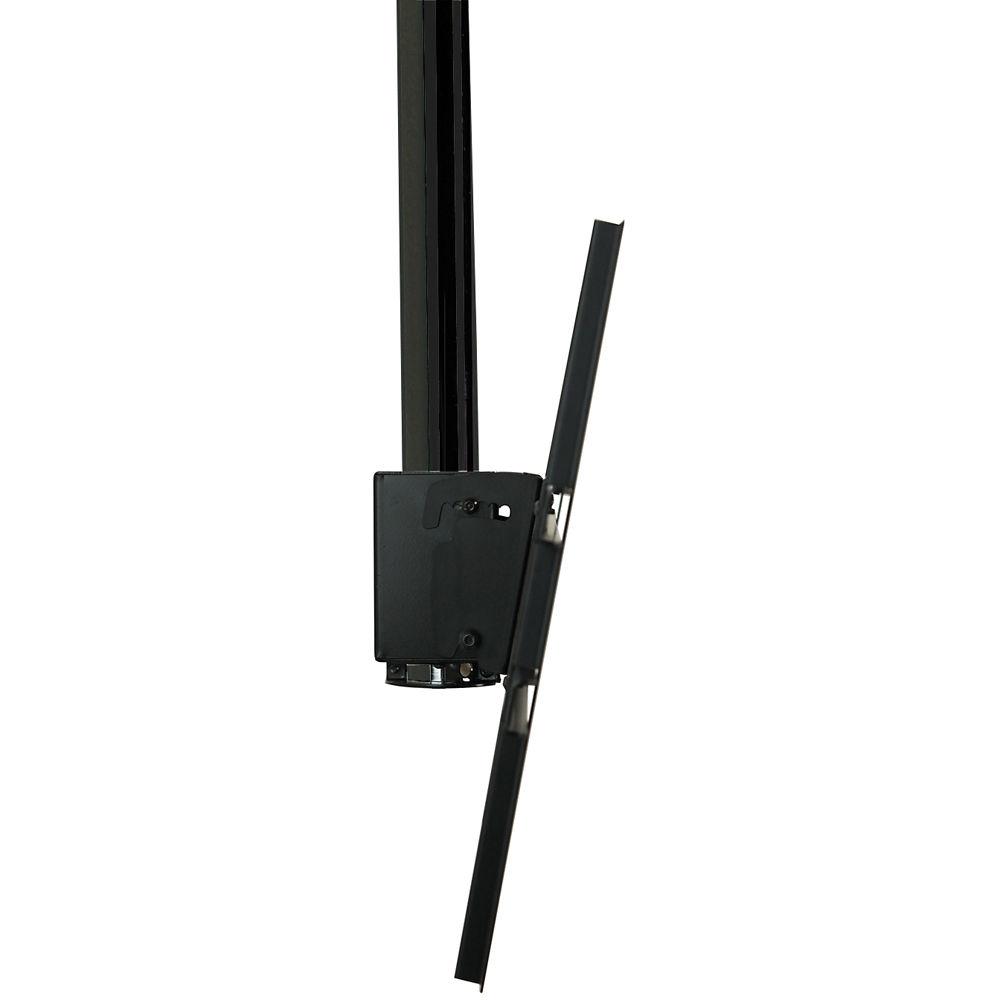

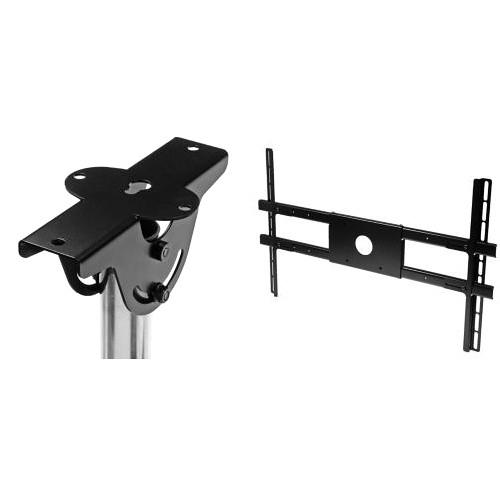

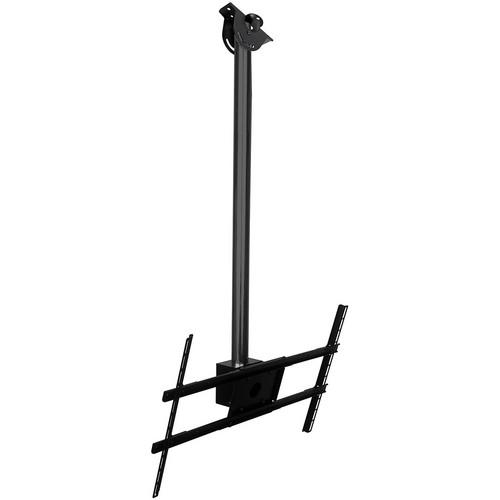

Product description Mount your 39 to 75" display to the ceiling with the 5' black Peerless-AV Modular Series Ceiling Mount Kit. It supports displays weighing up to 132 lb with mounting patterns up to 600 x 400mm. It provides -5 to 20° of tilt and 360° of rotation to position your display at your preferred viewing angle. - Cathedral Ceiling Plate for Modular Series Flat Panel Display & Projector Mounts (Black) The black Cathedral Ceiling Plate for Modular Series Flat Panel Display & Projector Mounts from Peerless Industries can be mounted on the concrete and wood joist ceilings. It can also be installed on truss or pipes via the MOD-AUB accessory clamp kit (sold separately), allowing for angled ceiling installations.
- Can be angled up to ±60° for use with vaulted or sloping ceilings
- Can withstand maximum weight capacity of up to 264 lb
- Mounts to concrete and wood joist ceilings
- Can also be installed on to truss or pipes via the MOD-AUB Accessory Clamp Kit (sold separately)
- Features a black powder coat finish
UPC: 735029269946 - 59" Extension Pole for Modular Series Flat Panel Display & Projector Mounts (Black) The black colored 59" Extension Pole for Modular Series Flat Panel Display & Projector Mounts from Peerless Industries is designed for use with the Peerless-AV Modular Series Mounts. It offers a suitable solution for tailoring each installation with custom cut-to-length poles.
- For use with 2" (50mm) diameter poles
- You can cut the pole to the desired length
- Features a polished chrome powder coat finish
UPC: 735029290216 - Single Display Mount for 10 to 65" Modular Series Flat Panel Display Mounts (Black) The black Single Display Mount from Peerless Industries is suitable for mounting a single display that is installed using the Modular series line of mounts (sold separately). This mount is used for 10 to 65" displays. Note: This is a security hardware.
- For use with Modular series flat panel display mounts
- Single display mounting solution for 10 to 65" displays
- VESA pattern 75/100mm compliant
- +20/-5° tilt, lockable in 5° increments
- Internal cable management
UPC: 735029269977 - Large Universal Adapter for Modular Series Flat Panel Display Mounts This Peerless Industries Large Universal Adapter serves as an adapter plate for the Peerless Modular series mounts for flat panel displays.
- For 39 to 75" flat panel screens
- Expands from 7.87-27.55" wide
- VESA 600 x 400 mounting pattern
UPC: 735029269991 In the Box Bundle Items Cathedral Ceiling Plate for Modular Series Flat Panel Display & Projector Mounts (Black) dsvqzyxqacxawyuraraudcxxuxuarwzbasyd - Limited 5-Year Warranty on Parts & Labor
59" Extension Pole for Modular Series Flat Panel Display & Projector Mounts (Black) - Limited 5-Year Warranty on Parts & Labor
Single Display Mount for 10 to 65" Modular Series Flat Panel Display Mounts (Black) dsvqzyxqacxawyuraraudcxxuxuarwzbasyd Large Universal Adapter for Modular Series Flat Panel Display Mounts dsvqzyxqacxawyuraraudcxxuxuarwzbasyd Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Modular Series Ceiling Mount Kit for 39 to 75" Flat-Panel Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cathedral Ceiling Plate for Modular Series Flat Panel Display & Projector Mounts (Black)
| Compatibility | 2" (50 mm) diameter poles | | Load Capacity | 264.0 lb (119.7 kg) | | Dimensions (W x H x D) | 8.85 x 4.64 x 3.93" (225.00 x 118.00 x 100.00 mm) | | Weight | 1.5 lb (0.60 kg) | | | | Box Dimensions (LxWxH) | 9.6 x 6.4 x 6.1" | - 59" Extension Pole for Modular Series Flat Panel Display & Projector Mounts (Black)
| Compatibility | 2" (50 mm) diameter poles | | Dimensions (W x H x D) | 2 x 59 x 2" (50 x 1,493 x 50 mm) | | Weight | 6.4 lb (2.9 kg) | | | | Box Dimensions (LxWxH) | 61.0 x 3.0 x 3.0" | - Single Display Mount for 10 to 65" Modular Series Flat Panel Display Mounts (Black)
| Number of Displays | 1 | | Mounting-Hole Pattern | 75 x 75 mm, 100 x 100 mm | | Maximum Screen Size | 65" / 165.1 cm | | Minimum Screen Size | 10" / 25.4 cm | | Bracket Load Capacity | 220 lb / 100 kg | | Swivel Adjustment | 360° | | Tilt Adjustment | -5 to 20° | | Maximum Extension | None | | Dimensions (W x H x D) | 3.5 x 5.1 x 4.8" / 89.9 x 130.0 x 123.9 mm | | Weight | 2.1 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 9.6 x 6.5 x 6.1" | - Large Universal Adapter for Modular Series Flat Panel Display Mounts
| Compatibility | Compatible with Peerless Industries MOD-FPMD and MOD-FPMS | | Supported Screen Sizes | 39 to 75" (99 to 190 cm) | | Load Capacity | 132 lb (59.8 kg) | | Finish | Scratch-resistant, black fused epoxy | | VESA Mount | 600 x 400 | | Dimensions | 28.5 x 0.7 x 16.53" (72 x 2 x 42 cm) | | Weight | 5.3 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 34.7 x 7.2 x 2.6" |
