User Manual for Peerless-AV Modular Series Floor-to-Ceiling Kit for 32 to 60" Display Click to enlarge the picture
Contents of the user manual for the Peerless-AV Modular Series Floor-to-Ceiling Kit for
- Product category: Monitor Floor Stands Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Floor Stands
 |
User manual for the Peerless-AV Modular Series Floor-to-Ceiling Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

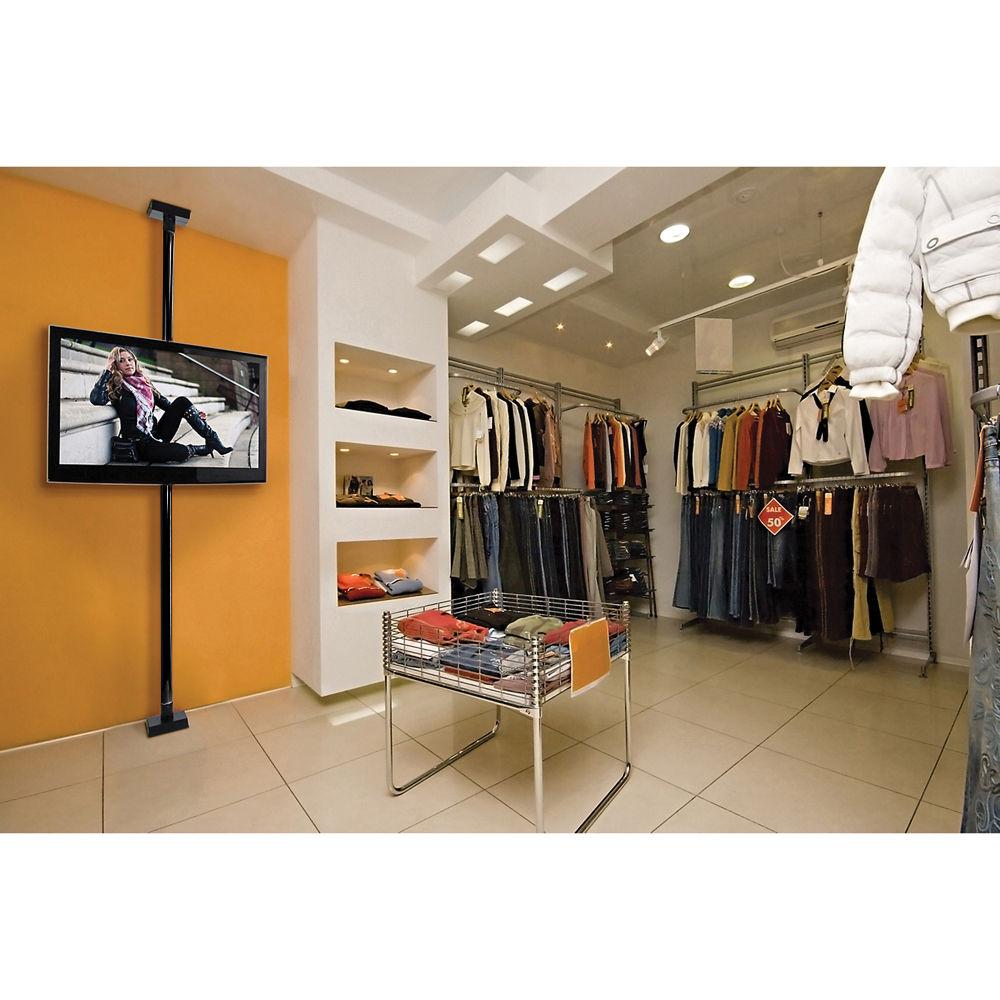

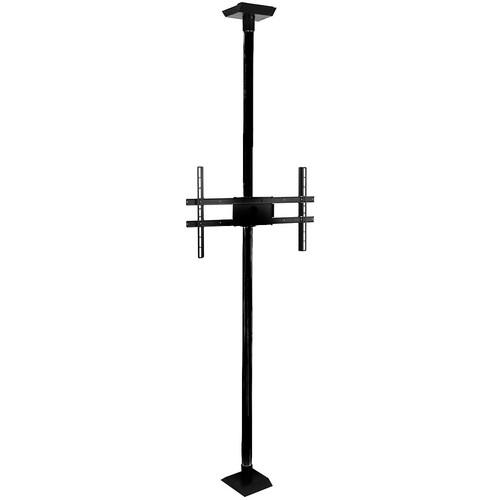

Product description The black Modular Series Floor-to-Ceiling Kit from Peerless Industries comes with all the components required to mount a 32 to 60" flat panel display between the floor and ceiling. It includes 2 Heavy-Duty MOD-CPF Flat Square Ceiling Plates, an MOD-P300-B 9'.8" (3m) Extension Pole, MOD-FPMS Single Display Flat Panel Mount, MOD-ASC Screen Stacking Clamp, and MOD-UNL Large Universal Adapter. Designed for installation around a 2" (50mm) diameter pole, the kit is well-suited for new projects as well as for upgrading existing installations. The Flat Square Ceiling Plates help in direct mounting to concrete and wood joists. The MOD-P300 9.8’ Extension Pole is used with the Peerless-AV Modular Series mounts and can be cut to the desired length. The MOD-UNL Large Universal Adapter serves as an adapter plate for 32 to 60" displays with VESA mounting patterns up to 700 x 400mm. The MOD-FPMS Single Display Flat Panel Mount allows the addition of a single screen mounting adapter, with the quick connect feature delivering -5 to +20° tilt and an incremental lock at every 5° interval. The MOD-ASC Screen Stacking Clamp serves as solution for stacking signal or dual displays on a single pole.The kit enables easy, single display installation between the floor and ceiling measuring up to 9.8’ (3m) in height. Being a part of the Modular series, the system can be expanded with additional Modular series accessories (sold separately) to accommodate virtually any configuration to achieve the desired custom mounting solution. - Modular Series MOD-CPF Flat Square Ceiling Plate (Black) The Modular Series MOD-CPF Flat Square Ceiling Plate from Peerless Industries can be mounted directly onto concrete and wood joists. It can be used for mounting Modular Series Flat Panel Display and Projector Mounts.
- Heavy-duty flat ceiling plate
- Mounts to concrete and wood joist ceilings
- Maximum weight capacity of 374 lb
- Can be mounted directly on concrete and wood joists or on truss/pipes via the MOD-AUB Clamp Kit (sold separately)
- Features a black powder coat finish
UPC: 735029269939 - 118" Extension Pole for Modular Series Flat Panel Display & Projector Mounts (Black) The black colored 118" Extension Pole for Modular Series Flat Panel Display & Projector Mounts from Peerless Industries is designed for use with the Peerless-AV Modular Series Mounts. It offers a suitable solution for tailoring each installation with custom cut-to-length poles.
- For use with 2" (50mm) diameter poles
- You can cut the pole to the desired length
- Features a polished chrome powder coat finish
UPC: 735029290230 - MOD-ASC Display Stacking Clamp for Modular Series Flat Panel Display Mounts (Black) The black MOD-ASC Display Stacking Clamp for Modular Series Flat Panel Display Mounts from Peerless Industries serves as a solution for stacking single or dual displays on a single pole. Designed to fit around a 2" (50mm) diameter pole, the clamp is suitable for new projects as well as for upgrading existing installations.
- Clamps around the extension pole to stack multiple single or dual back-to-back screens on a single pole
- Secondary safety screw provided to secure the mount into place
- 187 lb (85kg) maximum weight capacity

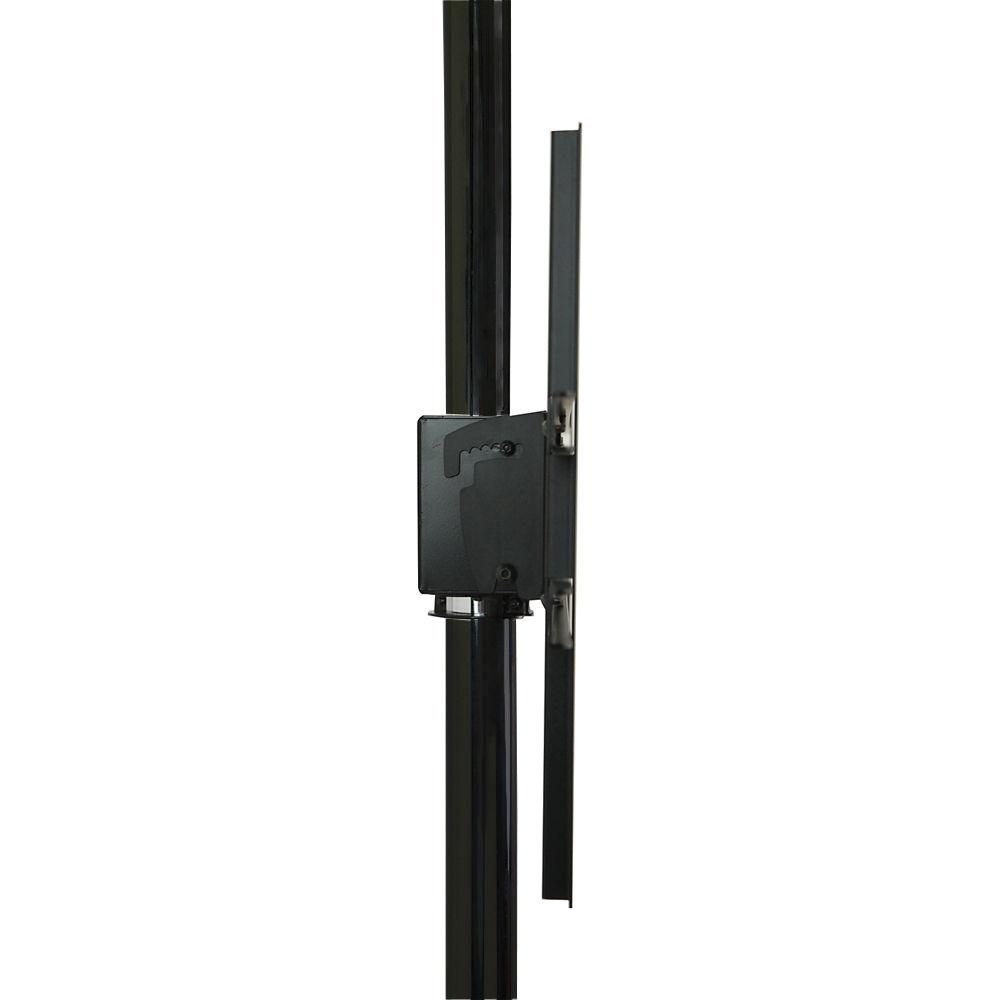

UPC: 735029270010 - Single Display Mount for 10 to 65" Modular Series Flat Panel Display Mounts (Black) The black Single Display Mount from Peerless Industries is suitable for mounting a single display that is installed using the Modular series line of mounts (sold separately). This mount is used for 10 to 65" displays. Note: This is a security hardware.
- For use with Modular series flat panel display mounts
- Single display mounting solution for 10 to 65" displays
- VESA pattern 75/100mm compliant
- +20/-5° tilt, lockable in 5° increments
- Internal cable management
UPC: 735029269977 - Large Universal Adapter for Modular Series Flat Panel Display Mounts This Peerless Industries Large Universal Adapter serves as an adapter plate for the Peerless Modular series mounts for flat panel displays.
- For 39 to 75" flat panel screens
- Expands from 7.87-27.55" wide
- VESA 600 x 400 mounting pattern
UPC: 735029269991 In the Box Bundle Items 2 x Modular Series MOD-CPF Flat Square Ceiling Plate (Black) bqqawrabxbaaufbewtsfcdcyassdq - Limited 5-Year Warranty on Parts & Labor
118" Extension Pole for Modular Series Flat Panel Display & Projector Mounts (Black) bqqawrabxbaaufbewtsfcdcyassdq - Limited 5-Year Warranty on Parts & Labor
MOD-ASC Display Stacking Clamp for Modular Series Flat Panel Display Mounts (Black) - Limited 5-Year Warranty on Parts & Labor
Single Display Mount for 10 to 65" Modular Series Flat Panel Display Mounts (Black) Large Universal Adapter for Modular Series Flat Panel Display Mounts
Also Includes Brochure PDF 283.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Modular Series Floor-to-Ceiling Kit for 32 to 60" Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Modular Series MOD-CPF Flat Square Ceiling Plate (Black)
| Compatibility | 2" (50 mm) diameter poles | | Load Capacity | 374 lb (170 kg) | | Dimensions (W x H x D) | 6.89 x 3.93 x 7.48" (175.00 x 100.00 x 190.00 mm) | | Weight | 2.5 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 12.5 x 10.4 x 4.3" | - 118" Extension Pole for Modular Series Flat Panel Display & Projector Mounts (Black)
| Compatibility | 2" (50 mm) diameter poles | | Dimensions (W x H x D) | 2 x 118 x 2" (50 x 2,999 x 50 mm) | | Weight | 13.8 lb (6.2 kg) | | | | Box Dimensions (LxWxH) | 121.1 x 3.5 x 3.5" | - MOD-ASC Display Stacking Clamp for Modular Series Flat Panel Display Mounts (Black)
| Security | Non-security hardware | | Weight Capacity | 187 lb (85 kg) | | Dimensions (H x W x D) | 3.06 x 3.03 x 0.79" (77.72 x 77.00 x 20.07 mm) | | Weight | 0.20 lb (0.09 kg) | | | | Box Dimensions (LxWxH) | 7.795 x 3.307 x 3.228" | - Single Display Mount for 10 to 65" Modular Series Flat Panel Display Mounts (Black)
| Number of Displays | 1 | | Mounting-Hole Pattern | 75 x 75 mm, 100 x 100 mm | | Maximum Screen Size | 65" / 165.1 cm | | Minimum Screen Size | 10" / 25.4 cm | | Bracket Load Capacity | 220 lb / 100 kg | | Swivel Adjustment | 360° | | Tilt Adjustment | -5 to 20° | | Maximum Extension | None | | Dimensions (W x H x D) | 3.5 x 5.1 x 4.8" / 89.9 x 130.0 x 123.9 mm | | Weight | 2.1 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 9.6 x 6.5 x 6.1" | - Large Universal Adapter for Modular Series Flat Panel Display Mounts
| Compatibility | Compatible with Peerless Industries MOD-FPMD and MOD-FPMS | | Supported Screen Sizes | 39 to 75" (99 to 190 cm) | | Load Capacity | 132 lb (59.8 kg) | | Finish | Scratch-resistant, black fused epoxy | | VESA Mount | 600 x 400 | | Dimensions | 28.5 x 0.7 x 16.53" (72 x 2 x 42 cm) | | Weight | 5.3 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 34.7 x 7.2 x 2.6" |
