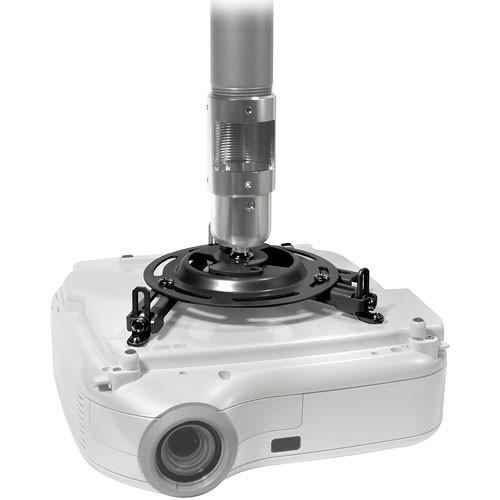

User Manual for Peerless-AV PJF2-45 Vector Pro II Projector Mount with Large Universal Clamp Style Bracket Click to enlarge the picture
Contents of the user manual for the Peerless-AV PJF2-45 Vector Pro II Projector
- Product category: Projector Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Projector Mounts
|
User manual for the Peerless-AV PJF2-45 Vector Pro II Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description Peerless Industries' PJF2-45 Vector Pro II Projector Mount with Large Universal Clamp Style Bracket (Black) is a fully-assembled mount that fits most large projectors measuring 10.75-18.75" wide and 5.5-10.0" high (27.3-47.6 x 14.0-25.4 cm). It can be flush mounted, installed using threaded rods or NPT pipe, or even wall mounted using a projector wall arm (accessories not included). The universal clamp-style adapter plate separately adjusts height and width to securely enclose your projector.
Theft-resistant armor protects your investment, while a cord access hole permits clean cable management. Two thumb screws make it easy to remove the projector for maintenance or cleaning. Flexible roll, pitch, and yaw adjustments also let you point the picture where you want it. (Note that some large projectors might restrict roll and pitch angles when flush mounted).
The mount is available in both Black and Silver. Available accessories (sold separately) include: - EXT Fixed Length Extension Columns (Varying Sizes)
- ADJ Height Adjustable Extension Columns (Varying Sizes)
- ACC 810 Threaded Rod Adapter
- PWA-14 Wall Arm
- ACC 852 and ACC 856 Black External Cord Wraps
- ACC 203 and ACC 205 Concrete Anchors
- ACC 021 Armor Lock Plus Security Cable
- ACC 020 Armor Lock Plus Security Cable with Kensington Lock
- CMJ 455 Lightweight Suspended Ceiling Plate
- ACC 840 and ACC 845 Anti-Vibration Ceiling Plates
- ACC 830 Side to Side Adjuster
- ACC 640 Escutcheon Ring
- ACC 050 Extension Column Stabilizer
- Fixed and Adjustable Height NPT Options
- The Vector Pro II Projector Mount includes a standard 1.5" (3.81 cm) threaded pipe connector that lets you suspend your projector using custom fixed or adjustable NPT columns (sold separately). You can also flush mount it without buying any additional parts.
- Many Mounting Possibilities
- Other mounting options include the ability to use 0.5" (1.27 cm) threaded rods along with the ACC 810 Adapter, wall mounting with the WMA-14 Adapter, and even horizontally offset installation using the ACC 830 Side to Side Adjuster.
- Armor Lock Security
- The Vector Pro II has a sturdy aluminum ball and socket joint reinforced by a steel bolt. Brass inserts at the adapter plate deter prying and prevent stripping while enlarged serrated washer head security screws further deter tampering. For further protection, consider buying the optional ACC 020 or ACC 021 Armor Lock Plus accessories.
- Adjustable Angle
- The mount's ball and socket connector lets you quickly angle the projector toward your screen. ±180° yaw even lets you aim the projector at side walls or the back of the room as needed.
- Easy Projector Access
- Dismounting the projector for maintenance is easy thanks to two thumb screws. The PJF2 is also designed to allow quick access to lamps and filters without disconnection, with most projectors.
- Cable Routing
- Cables can be passed conveniently through the extension column to hide and shield them from intrusion.
UPC: 735029235194 In the Box Peerless-AV PJF2-45 Vector Pro II Projector Mount with Large Universal Clamp Style Bracket (Black) Ceiling Plate Mount Clamp-Style Universal Adapter Plate Cable Management Extension Column Connector Mounting Hardware 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV PJF2-45 Vector Pro II Projector Mount with Large Universal Clamp Style Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV PJF2-45 Specs | | | Depth From Mounting Source | Flush Mounted: 3.125" (7.94 cm)
With NPT Adapter: 6.25" (15.88 cm) | | Max Equipment Size | 18.75 x 10.0" (47.6 x 25.4 cm) | | Adjustments | Roll: ±15°
Pitch: ±15°
Yaw: 360° | | | | Construction | Mount: Aluminum
Connector: Nylon
Securing Bolt: Steel
Adapter Plate: Steel | | Dimensions | 11.75-20.0 x 8.38-17.25 x 8.9" (29.9-50.8 x 21.29-43.82 x 22.61 cm) | | Weight Capacity | 50.0 lb (22.7 kg) | | Weight | 7.7 lb (3.5 kg) |
