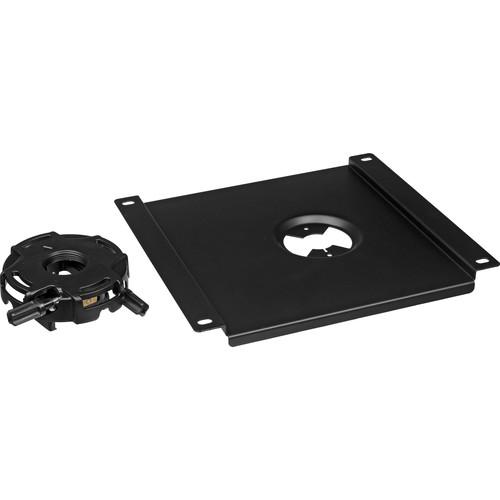

User Manual for Peerless-AV Precision Gear Projector Mount Click to enlarge the picture
Contents of the user manual for the Peerless-AV Precision Gear Projector Mount
- Product category: Projector Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Projector Mounts
|
User manual for the Peerless-AV Precision Gear Projector Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The Peerless Industries Precision Gear Projector Mount holds most JVC DLA projectors weighing up to 50 lb (22 kg) and offers ± 20° tilt, ± 10° roll, and 360° swivel. It includes a Spider Universal Adapter Plate that extends up to 17.63" (448 mm) to fit most projector models.
Take advantage of the ImageLock alignment feature offered by the precision gear to accurately hold image position and simultaneously eliminate any sag or drift. The gear will stay securely in place and not shift during projector maintenance, bulb replacement, or loosen or change alignment due to vibration, accidental bumping, etc. To further enhance user experience, the Precision Gear Projector Mount has 2 adjustment knobs that help you control tilt and roll image alignment. - Mounts most JVC DLA projectors weighing up to 50 lb (22 kg)
- Offers ± 20° tilt, ± 10° roll, and 360° swivel
- Spider Universal Adapter Plate extends up to 17.63" (448 mm) to fit most projector models
- 2 adjustment knobs control tilt and roll image alignment
- Pre-installed security screws offer optional tilt and roll lock to restrict tampering with adjustment knobs
- ImageLock alignment feature of the precision gear holds image position and simultaneously eliminates any sag or drift
- Cable management allows cables to be routed through projector mount discretely
- Pre-assembled design for reducing installation time
- Horizontal wrench access slots ease the process of installation
- Security hardware ensures protection against theft
UPC: 735029276456 In the Box Peerless-AV Precision Gear Projector Mount 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Precision Gear Projector Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV PRG-JVC-DLA Specs | Load Capacity | Up to 50 lb (22 kg) | | Adjustments | Tilt: ± 20°
Roll: ± 10°
Swivel: 360° | | Color | Black | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 15.4 x 15.3 x 7.8" |
