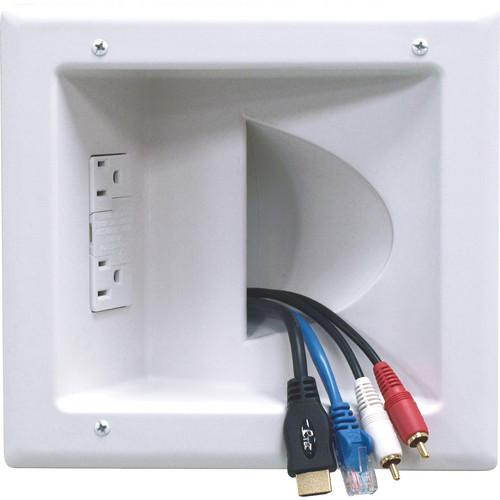

User Manual for Peerless-AV Recessed Low Voltage Media Plate with Duplex Surge Suppressor Click to enlarge the picture
Contents of the user manual for the Peerless-AV Recessed Low Voltage Media Plate
- Product category: Other Mount Accessories Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Other Mount Accessories
|
User manual for the Peerless-AV Recessed Low Voltage Media Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The Recessed Low Voltage Media Plate with Duplex Surge Suppressor from Peerless Industries provides a smart solution for routing low voltage component cables, such as HDMI or RCA cables, behind your flat-panel display, amplifier, or any other A/V device. Surge suppression is provided via the integrated Copper Wiring Devices SurgeBloc unit. A 15A/125V duplex receptacle is provided and enables you to discreetly power your devices from behind the flat panel display mount.
The plate's low profile design allows you to install it behind slim mounts and flat panels. All component cables are routed from inside the wall, giving your A/V equipment a clean look. The plate also incorporates surge suppression capabilities that protect your equipment from power surges due to lightning strikes, motor loads, as well as RFI (Radio Frequency Interference). A built-in alarm alerts you to surge suppression failure.
Owing to the slim design, there is no need for cable covers. With molded mounting wings that attach directly to your dry wall, you do not need additional low voltage mounting brackets. Installation is aided by the included installation template as well as a design that requires minimum tools for installation.
The Recessed Low Voltage Media Plate with Duplex Surge Suppressor is manufactured from ABS plastic and sports a white color. - Provides a smart solution for routing low voltage component cables such as HDMI or RCA behind your flat panel display, amplifier, or any other audio / video device
- Provides surge protection via the integrated Copper Wiring Devices SurgeBloc unit
- Integrates a 15A / 125V duplex receptacle that allows you to discreetly power your devices from behind the flat panel display mount
- Allows installation behind the slimmest mounts and flat panels owing to a low profile design
- Routs all component cables from inside the wall, thus providing your audio / video equipment a clean look
- Incorporates surge suppression capabilities that protect your audio / video equipment from power surges due to lightning strikes, motor loads, as well as RFI (Radio Frequency Interference)
- Eliminates need for cable covers owing to a slim design
- Eliminates need for low voltage cable mounting brackets via molded mounting wings that directly attach to your dry wall
- Aids installation via included installation template
- Integrates an ABS plastic construction
UPC: 735029275886 In the Box Peerless-AV Recessed Low Voltage Media Plate with Duplex Surge Suppressor Mounting Plate Mounting Template Limited 5 Year Warranty Brochure PDF 166.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Recessed Low Voltage Media Plate with Duplex Surge Suppressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV IBA5-W Specs | Copper Wiring Devices SurgeBloc | - Total Maximum Surge Dissipation – 340 Joules
- Maximun Surge Current – 12,000 Amps
- Peak Surge Suppression Voltage – 1,000 Volts
- Surge Protection – Hot/Neutral, Hot/Ground, Neutral/Ground
- Clamping Response Time – 1 Nanosecond
| | Finish | ABS Plastic | | Color | White | | Dimensions | 8.10 x 7.58 x 3.68" (206 x 193 x 93 mm) | | Weight | 1 lb (0.45kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.0 x 10.0 x 4.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 00 owners. Add your rating and experience with the product.
