User Manual for Peerless-AV Short Throw Projector Arm & Mount Click to enlarge the picture
Contents of the user manual for the Peerless-AV Short Throw Projector Arm &
- Product category: Projector Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Projector Mounts
 |
User manual for the Peerless-AV Short Throw Projector Arm & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

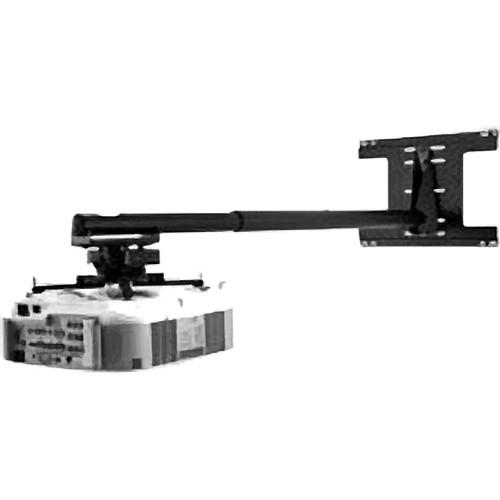

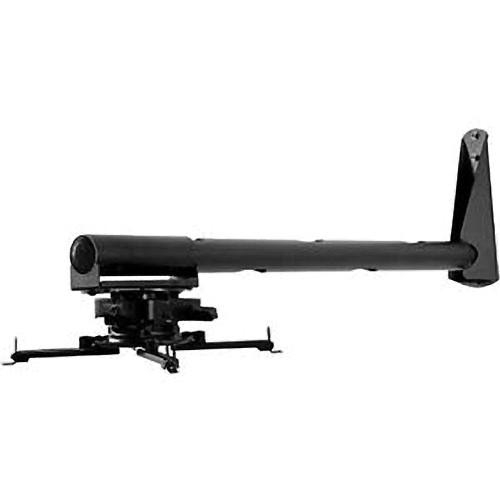

Product description The Peerless PSTK-028 Short Throw Projector Arm & Mount is a universal solution for maximizing the benefits of virtually any short-throw projector. The PSTK-028 arm mounts in single or double stud configurations, as well as cinder block or concrete walls. The included wall plate provides up to 6" of lateral travel for precise placement. Included in the kit is the PRG-UNV projector mount, which adds tilt, roll and swivel movements, as well as precision geared adjustments. The mount has a travel range of 0-28" (0-77 cm) along the arm. Internal cable management ensures a clean installation. - Sliding carriage design allows projector mount to glide into place at any location on the short throw arm
- Access slots allow for all internal cable management
- Double stud wall plate (optional) allows for 6" (15.2 cm) of lateral adjustment for precise alignment of the short-throw projector
- Pre-installed security screws lockdown short-throw arm and prevent tampering
- Kitted with Peerless' Universal Precision Gear Projector Mount (PRG-UNV), patent-pending precision gears that provide exact projector image alignment
UPC: 735029263043 In the Box Peerless-AV Short Throw Projector Arm & Mount (Black) PRG-UNV Universal Projector Mount Wall Plate Mounting Hardware Installation Guide 5 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Short Throw Projector Arm & Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV PSTK-028 Specs | | | Depth From Mounting Source | 0-28" (0-77 cm) | | Max Equipment Size | Video Projector Size Not Specified | | Adjustments | Travel: 29-55" 0-28" (0-77 cm)
Tilt: +/-20°
Roll: +/-10°
Swivel: +/-15°
Lateral adjustment: (6" 15.2 cm) | | | | Construction | Aluminum, steel | | Dimensions | 3.93 x 11 x 36.6" (10 x 28 x 93 cm) | | Weight Capacity | 50 lbs (22 Kg) | | Weight | 16 lbs (7 Kg) | | | | Package Weight | 23.4 lb | | Box Dimensions (LxWxH) | 46.0 x 18.0 x 5.0" |
