User Manual for Peerless-AV SmartMount Articulating Wall Arm for 39 to 75" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV SmartMount Articulating Wall Arm for
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
 |
User manual for the Peerless-AV SmartMount Articulating Wall Arm for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

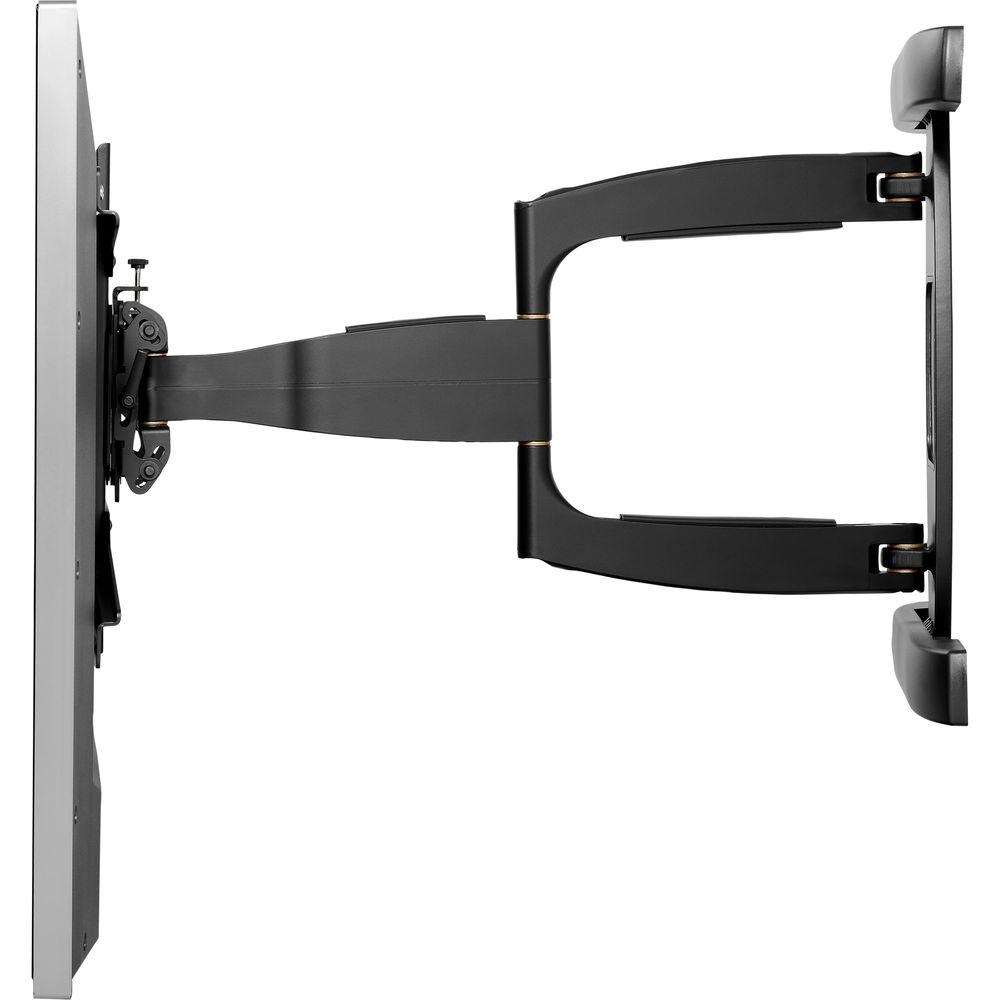

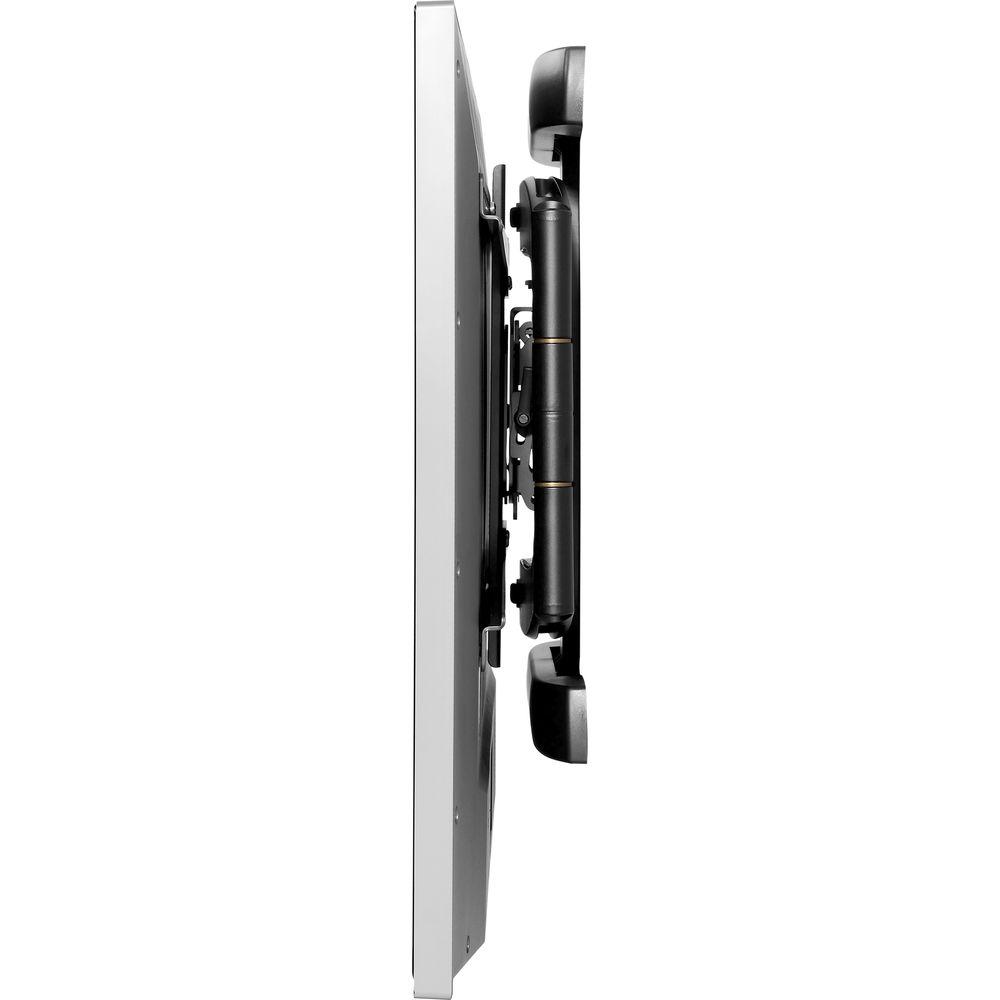

Product description Designed to fit flat-panel displays measuring 39 to 75" and weighing up to 125 lb, the SmartMount Articulating Wall Arm from Peerless-AV offers versatile installation and mounting options. It will extend up to 26.60" from the wall, and fold back to 3.10". Supporting mounting patterns ranging from 200 x 100 to 600 x 400mm, it provides -5 to 15° tilt adjustment, ±90° pivot adjustment, ±5° roll adjustment, and ±0.5" height adjustment. - Retracts to hold display just 3.10" from the wall, and extends up to 26.60"
- ±90° of pivot allows for preferred positioning of your display
- ±5° of leveling after display installation
- Post-installation height adjustment of ±0.5" allows you to fine tune your display's position

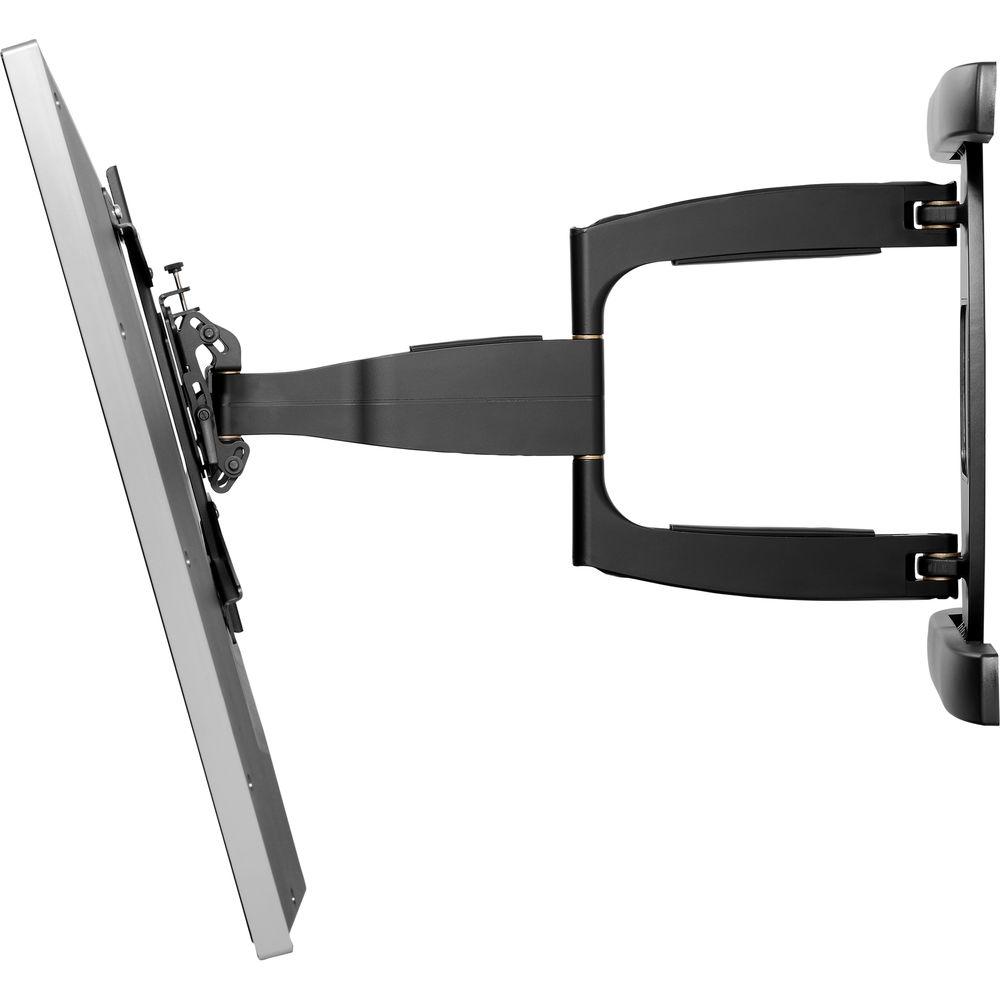

- One-Touch tilt of -5 to 15° for your preferred viewing angle
- Hook-and-Hang one-person installation

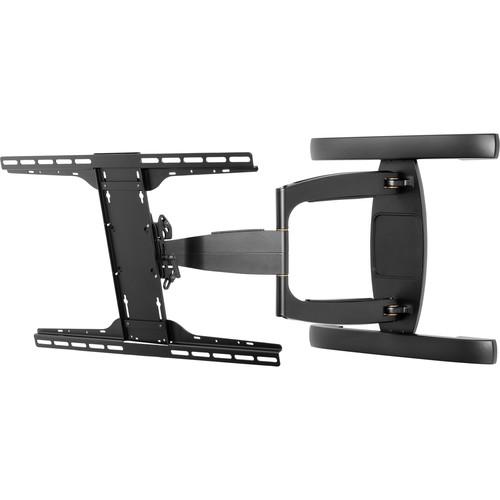

- The I-shaped adapter plate's design won't block connections on the back of your display

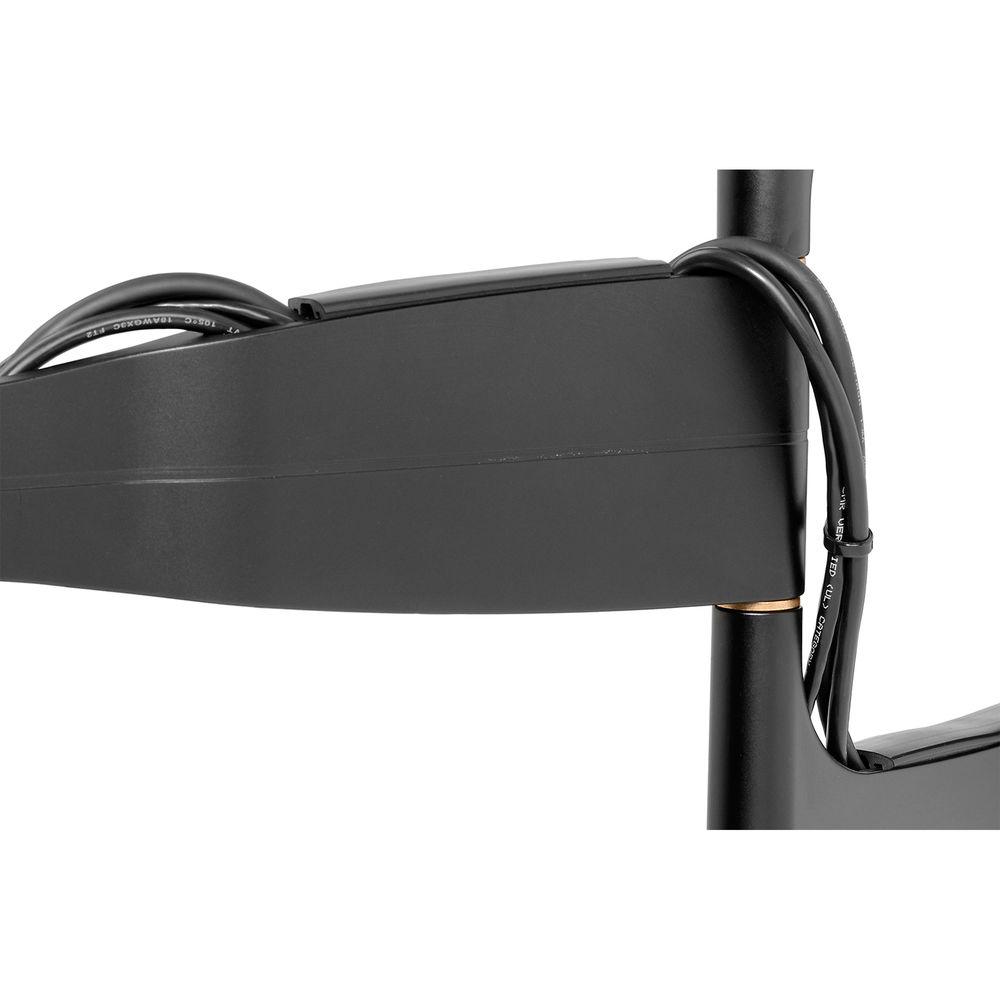

- Integrated cable management protects, contains, and conceals cables for a clean-looking installation
- Universal mount fits displays with mounting patterns ranging from 200 x 100 to 600 x 400 mm
- Landscape or portrait mounting options increases display versatility
- Mounts to wood studs, concrete, cinder blocks, or breeze blocks for added versatility
- Open wall plate design increases electrical and cable management options
- Removable cover for wall plate knockout included
- Includes all necessary wall and display attachment hardware
In the Box Peerless-AV SmartMount Articulating Wall Arm for 39 to 75" Displays Assembly Hardware Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV SmartMount Articulating Wall Arm for 39 to 75" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV SA761PU-NEW Specs | | | Supported Screen Sizes | 39 to 75" / 99.1 to 190.5 cm | | Supported Weight Capacity | 125 lb / 56.8 kg | | Mounting-Hole Pattern | 200 x 100 to 600 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -5 to +15
