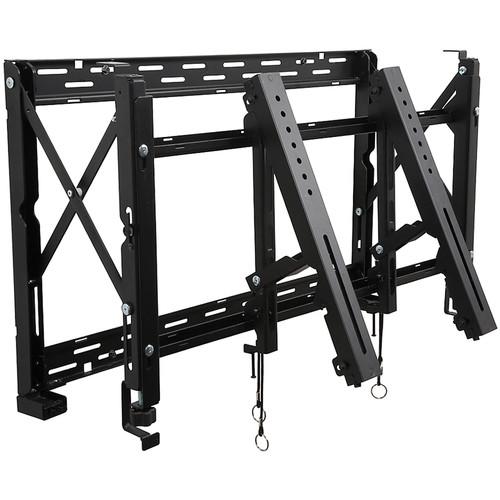

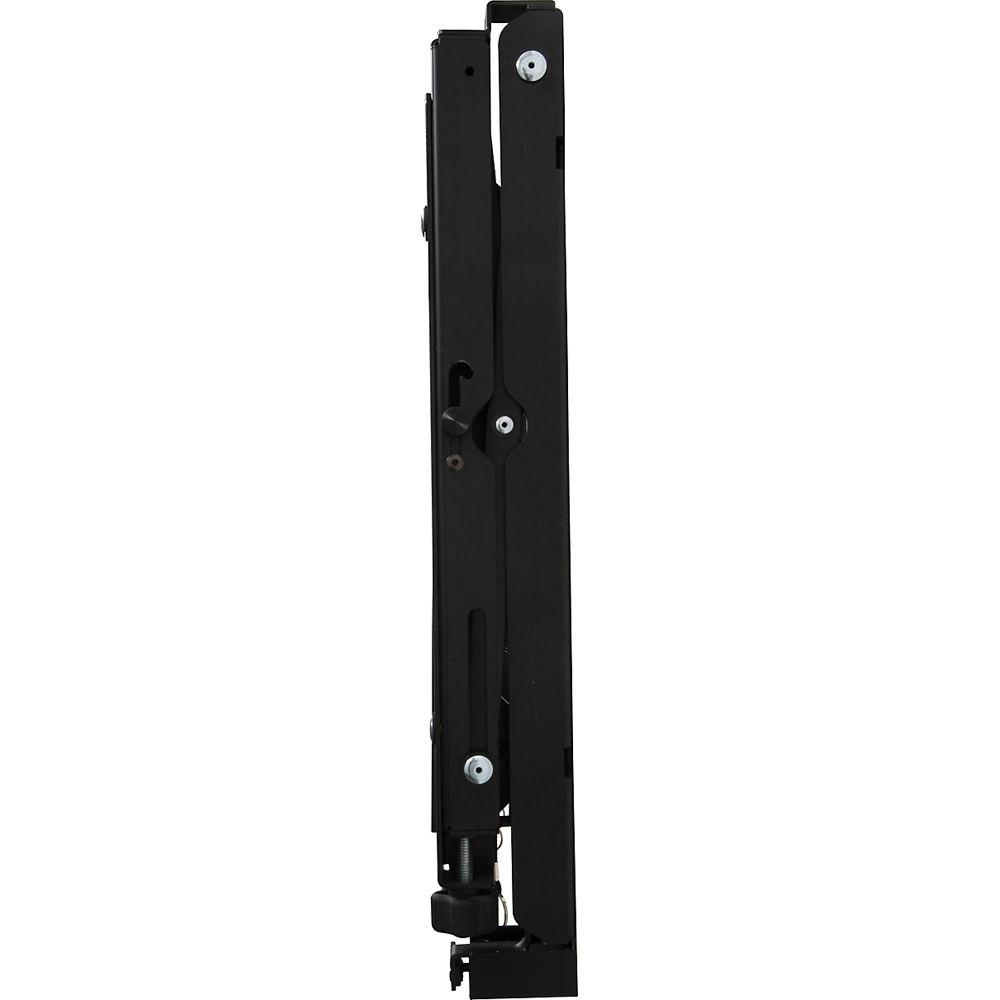

Product description Simplify your video wall installation with the black Peerless-AV SmartMount DS-VW765-LQR Video Wall Mount. It holds your 46 to 65" display weighing up to 125 lb in landscape orientation and is designed for quick service access in either traditional or recessed video wall applications. Quick-release functionality provides quick access to I/O ports to ease maintenance and installation efforts. The mount has a no-tool-required micro-adjustment feature designed to enable simple post-installation adjustments, even for uneven mounting surfaces. - Quick-release pop-out mechanism provides convenient display access in recessed applications
- Quick release can be disabled with a locking screw to prevent unintentional pop-outs
- Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick-release mechanism to activate with gentle force
- Tool-less micro-adjustments at eight points allow the mount to overcome uneven walls and help create a seamless video wall display
- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs simplify display-to-display cabling
- Accommodates displays in landscape orientation
- Modular mount for virtually unlimited video wall display configurations
- Optional custom wall plate spacers help eliminate guesswork and on-site installation calculations
UPC: 735029300847 In the Box Peerless-AV SmartMount DS-VW765-LQR Video Wall Mount for 46 to 65" Displays (Black, Landscape Orientation) Assembly Hardware Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV SmartMount DS-VW765-LQR Video Wall Mount for 46 to 65" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DS-VW765-LQR Specs | | | Supported Screen Sizes | 46 to 65" / 116.8 to 165.1 cm | | Supported Weight Capacity | 125 lb / 56.8 kg | | Mounting-Hole Pattern | 200 x 200 to 600 x 400 mm | | Number of Displays Supported | 1 | | | | Distance from Mounting Surface | 3.1 to 3.8" / 7.8 to 9.7 cm | | Dimensions | 35.6 x 21.4 x 3.1" / 90.4 x 54.3 x 7.8 cm | | Weight | 35.0 lb / 15.9 kg | | | | Package Weight | 41.65 lb | | Box Dimensions (LxWxH) | 36.0 x 23.0 x 5.0" |
