User Manual for Peerless-AV SmartMount DS-VW795-QR Video Wall Mount for 65 to 95" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV SmartMount DS-VW795-QR Video Wall Mount
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
|
User manual for the Peerless-AV SmartMount DS-VW795-QR Video Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

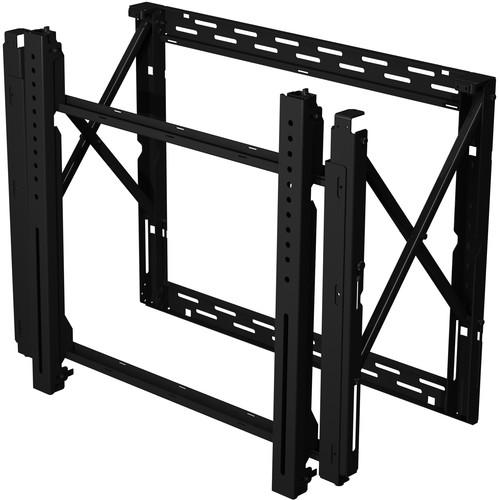

Product description Recess or install your display in a video wall array with the Peerless-AV SmartMount DS-VW795-QR Video Wall Mount. It supports 65 to 95" displays weighing up to 225 lb with mounting patterns ranging from 200 x 200 to 60 x 600mm. The mount features a quick release pop-out design that extends the display up to 16.2" from the wall to allow easy access to cabling. This mount supports portrait and landscape orientation and provides 8-point tool-less micro-adjustment to help achieve proper alignment. - Quick release pop-out mechanism provides convenient display access in recessed applications
- Quick release can be disabled with a locking screw to prevent unintentional pop-outs
- Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick release to activate with gentle force
- Tool-less micro-adjustments at eight points allow the mount to overcome uneven walls to help create a seamless video wall display
- Accommodates displays in landscape and portrait orientations
- Modular mount for a multitude of video wall display configurations
- Integrated cable management tie-backs simplify display-to-display cabling
- Optional reusable, custom wall plate spacers eliminate guesswork and on-site installation calculations
UPC: 735029301455 In the Box Peerless-AV SmartMount DS-VW795-QR Video Wall Mount for 65 to 95" Displays (Black) Assembly Hardware Mounting Hardware Limited 5-Year Warranty Brochure PDF 323.7kbwttzyvvectabzwqfqeqcwwvzutsvr Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV SmartMount DS-VW795-QR Video Wall Mount for 65 to 95" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DS-VW795-QR Specs | | | Supported Screen Sizes | 65 to 95" / 165.1 to 241.3 cm | | Supported Weight Capacity | 225 lb / 102.3 kg | | Mounting-Hole Pattern | 200 x 200 to 600 x 600 mm | | Number of Displays Supported | 1 | | | | Distance from Mounting Surface | 3.7 to 16.2" / 9.4 to 41.1 cm | | Dimensions | 32.73 x 28.04 x 3.68" / 831 x 712 x 93 cm | | Weight | 40.0 lb / 18.1 kg | | | | Package Weight | 46.6 lb | | Box Dimensions (LxWxH) | 34.5 x 28.5 x 3.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
