User Manual for Peerless-AV SmartMount Motorized Height-Adjustable 42-86" Flat Panel Cart Click to enlarge the picture
Contents of the user manual for the Peerless-AV SmartMount Motorized Height-Adjustable 42-86" Flat
- Product category: Flat Panel Carts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Flat Panel Carts
 |
User manual for the Peerless-AV SmartMount Motorized Height-Adjustable 42-86" Flat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

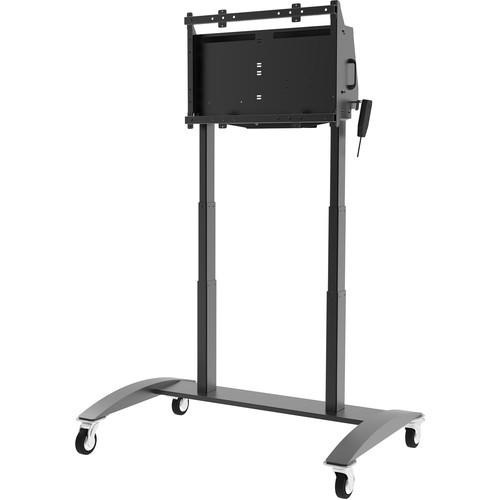

Product description Mount and transport your 42 to 86" display smoothly and securely with the SmartMount Motorized Height-Adjustable Flat Panel Cart from Peerless AV. This rigid cart is designed to mount an interactive touchscreen display, providing a rear enclosure for a display PC and for mounting Wi-Fi antennas. The mount supports standard VESA patterns and is adjustable from 34-60" from the floor via an electronic control box, and plumb/tilt can be finely adjusted by +2° / -4°. The electronic controls even have a safety feature if an obstacle is detected, which will automatically reverse direction, and corner bumpers protect the cart from damage. A set of preassembled 4" swivel casters affix to the bottom of the cart for quick assembly and smooth transport.
The cart is finished with a black powder coating to hide dust and fingerprints, and includes a 6-outlet surge protector and a cord wrap for cable management. -
- Mount 42 to 86" interactive touchscreen displays
- Rigid, stable, welded base with black powder-coated finish
- Vertical adjustment of 34-60" from floor with the touch of a button
- Plumb/tilt adjustment of +2° / -4° for fine-tuned leveling
- Easily maneuverable 4" swivel casters preassembled for quick setup
- Fits 200 x 200 to 600 x 400mm VESA patterns
- Corner bumpers to protect from damage

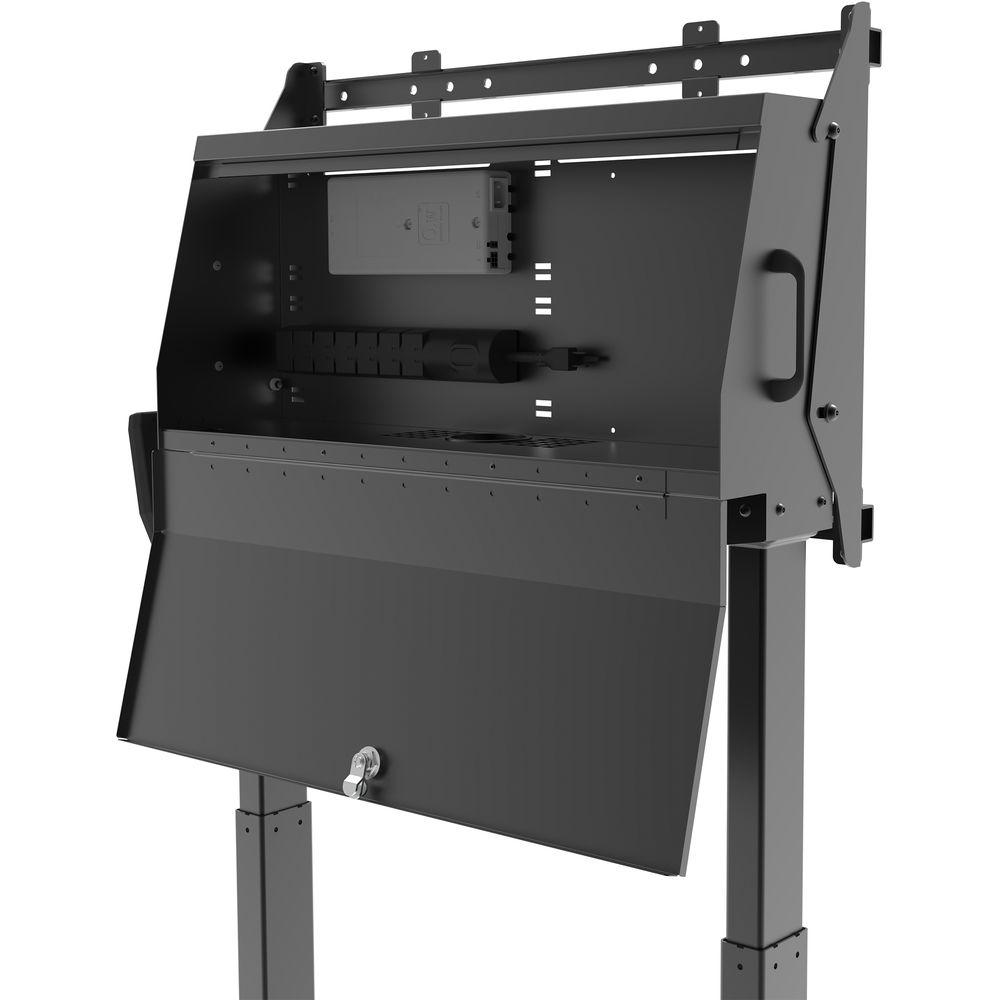

- Rear enclosure provides space for a display PC and external Wi-Fi antennas
- Safety limit switch reverses direction if collision is detected
- Includes 6-outlet surge protector and cord wrap
UPC: 735029322108 In the Box Peerless-AV SmartMount Motorized Height-Adjustable 42-86" Flat Panel Cart (Black) Base with Motorized Column and Casters Rear Enclosure Universal Display Adapter Control Box Control Switch 6-Outlet Surge Protector for Select Landscape Kiosks bybwbdzrbbq Assembly Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV SmartMount Motorized Height-Adjustable 42-86" Flat Panel Cart in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV SmartMount Specs | Color / Finish | Black powder coat | | Vertical Adjustment | 34 to 60" / 70 to 152 cm from floor
Display Height Range: 25.6" / 65 cm | | Plumb Adjustment | +2° / -4° | | VESA Mounting | 200 x 200 mm to 600 x 400 mm | | Load Capacity | 280 lb / 127 kg | | Certifications | UL 962, VESA, RoHS, ADA | | Dimensions | Full Cart: 3.9 x 5.8 x 2.5' / 1.2 x 1.8 x .76 m
Universal Display Adapter (W x L): 26 x 15.8" / 660 x 400 mm
Rear PC Enclosure: 10 x 8 x 4" / 254 x 203 x 102 mm
Pre-Assembled Casters: 4" / 102 mm diameter | | Weight | 110.5 lb / 50.1 kg | | | | Package Weight | 134.5 lb | | Box Dimensions (LxWxH) | 47.75 x 38.5 x 10.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
