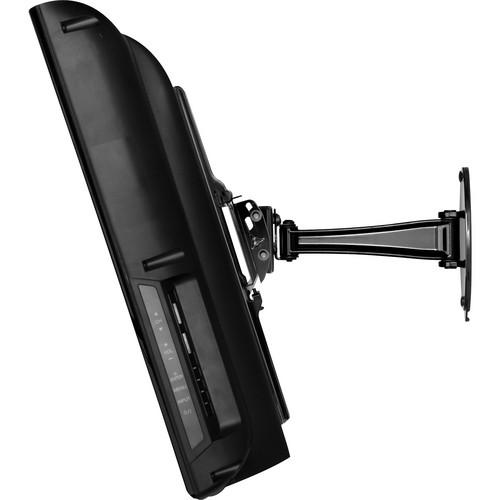

User Manual for Peerless-AV SP746PU Pivot Wall Mount Click to enlarge the picture
Contents of the user manual for the Peerless-AV SP746PU Pivot Wall Mount
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
|
User manual for the Peerless-AV SP746PU Pivot Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The Peerless Industries SP746PU Pivot Wall Mount is designed to give you the best viewing positions for your flat-panel displays ranging from 26 to 46" (66 to 116 cm) and weighing up to 80 lb (36 kg).
Pivoting functionality allow you to move the screen smoothly for a wide variety of adjustable screen positions, when full articulation is not required. The arm extends your screen up to 12.55" (31.9cm) from the wall and offers a side-to-side motion of 90º, enabling unlimited viewing positions. In addition, the mount features 1-touch tilt mechanism up to +15/-5° and up to ±5° roll support in screen leveling. Integrated cable management hides the cable, providing a clean clutter-free look to any installation. - Designed to give you the best viewing positions for your flat-panel displays ranging from 26 to 46" (66 to 116 cm)
- Load capacity up to 80 lb (36 kg)
- Pivoting functionality allow you to move the screen smoothly for a wide variety of adjustable screen positions, when full articulation is not required
- Extends your screen up to 12.55" (31.9cm) from the wall
- Offers a side-to-side swivel up to 90º
- Features 1-touch tilt mechanism up to +15/-5°
- ±5° roll support in screen leveling
- Integrated cable management hides the cable, providing a clean clutter-free look to any installation
- Compatibility with up to VESA 400 x 400 mm mounting hole pattern
UPC: 735029271918 In the Box Peerless-AV SP746PU Pivot Wall Mount Wall Mount 2 x Adapter Brackets 2 x Wood Screws 2 x Concrete Anchors 8 x Cable Ties 2 x Cable Tie Anchors 2 x Phillips Screw (8-32 x 1/4") 2 x Screw Cover #10-32 x 1/4" Flat Head Phillips Screw 2 x 5 mm Allen Wrench #3 Screwdriver Bit 5-year Warranty Brochure PDF 213.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV SP746PU Pivot Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV SP746PU Specs | | | Supported Weight Capacity | 80 lb / 36.3 kg | | Mounting-Hole Pattern | 200 x 100 to 400 x 400 mm | | Number of Displays Supported | 1 | | | | Distance from Mounting Surface | 3.7 to 12.6" / 9.5 to 31.9 cm | | Dimensions | 18.8 x 17 x 3.7" / 47.6 x 43.2 x 9.5 cm | | Weight | 7.2 lb / 3.3 kg | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 21.0 x 11.3 x 4.9" |
