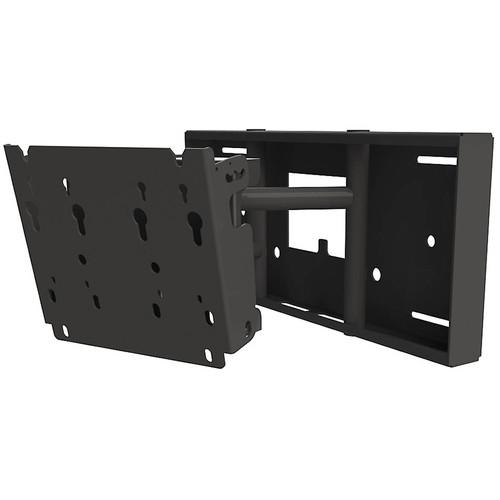

User Manual for Peerless-AV SP850-V2X2 Pull-Out Pivot Wall Mount for 26 to 65" Flat Panel Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV SP850-V2X2 Pull-Out Pivot Wall Mount
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
|
User manual for the Peerless-AV SP850-V2X2 Pull-Out Pivot Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The black SP850-V2X2 Pull-out Pivot Wall Mount from Peerless Industries combines the key features of a wall mount and a pivot arm. In the closed position, the SP850-V2X2 acts as a flat or tilting wall mount. At only 2.73" from the wall, the wall mount’s unique wall plate and built-in cable management neatly hide all components and cords. The sturdy arm construction smoothly glides the display out 11.18" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850-V2X2 Wall Mount is well suited for use in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall. - Built in pivot up to 90° (45° in each direction) allows for adjustable viewing angles
- Easy pull-out pivot provides quick maintenance access
- Provides easy access to the back of the display
- Dedicated VESA 200 x 200 mounting pattern
- 2.73" (69mm) deep when retracted, pivot arms extend up to 11.18" (284mm) when extended
- Hides cables within enclosed wall plate for a clutter-free installation
- IncreLok tilt provides tilt at 0°, 5°, and 10°
- ±1° of roll for horizontal display leveling during installation
- Prevent tampering or theft with unique LockKey installation brace and security screws on the adapter plate
- LockKey installation tool secures pivot arms for display installation
- Lock-out screw prevents unwanted extension
- Mounts to 16" wood studs, concrete and cinder block
- Suitable for in-wall or recessed applications
UPC: 735029283379 In the Box Peerless-AV SP850-V2X2 Pull-Out Pivot Wall Mount for 26 to 65" Flat Panel Displays (Black) LockKey Installation Tool Locking Tab Cable Management Sleeve Fastener Pack VESA 200 x 200mm Adapter Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV SP850-V2X2 Pull-Out Pivot Wall Mount for 26 to 65" Flat Panel Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV SP850-V2X2 Specs | | | Supported Screen Sizes | 26 to 65" / 664.0 to 165.1 cm | | Supported Weight Capacity | 149.9 lb / 68 kg | | Mounting-Hole Pattern | 200 x 200 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | 0 to +10
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
