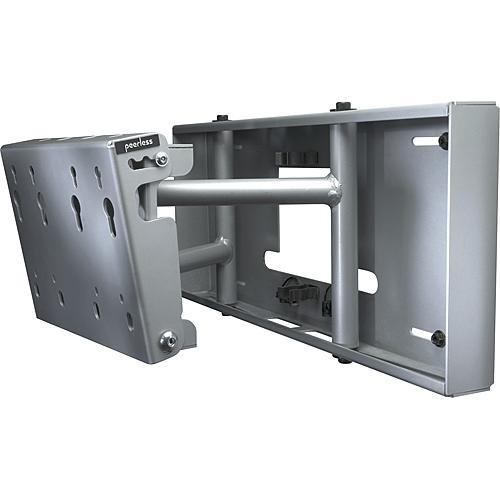

User Manual for Peerless-AV SP850S Pull-Out Swivel Wall Mount for 32 to 80" LCD and Plasma Flat Panel Screens Click to enlarge the picture
Contents of the user manual for the Peerless-AV SP850S Pull-Out Swivel Wall Mount
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
|
User manual for the Peerless-AV SP850S Pull-Out Swivel Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The silver SP850S Peerless Pull-Out Swivel Wall Mount for 32 to 80" LCD and Plasma Flat Panel Screens from Peerless combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount.At only 2.3" away from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the screen out 10.75" from the wall and allows the screen to pivot up to 45°. This feature not only enables the screen to be positioned for an optimal viewing angle but also provides easy access to the back of the screen for maintenance.The SP850 is also ideal in applications where the screen needs to be recessed into a cubby hole, custom frame, or aligned into a video wall. An adapter plate (sold separately) is required to complete this installation.Peerless is one of the leaders in the Audio-Visual equipment mounting field. For more than 40 years, Peerless has continually come up with solutions that focus on not only strength but quality as well. Whether you are mounting a TV, VCR, plasma, projector, or speakers, Peerless has the answer. - VESA 100 and 200 x 100 compatible 1
Please Note: PLP or LC model adapter plate required for non-VESA screens close - Pull-out swivel with up to 45° rotation depending on screen size
- Locking tab provides optional swivel restriction to one side
- 2.3" (5.8 cm) deep in closed position, up to 10.75" (27.3 cm) fully extended
- Built-in pivot up to 90° (45° in each direction) allows for adjustable viewing angles
- Easy pull-out pivot provides quick maintenance access
- 2.3" (5.9 cm) deep when retracted, pivot arms extend up to 10.7" (27.2 cm) when extended
- Clean profile design hides wiring and mount within the enclosed wall plate
- IncreLok tilt provides tilt at 0°, 5° and 10°
- +/-1° of roll for horizontal display leveling during installation
- Lock Key installation tool secures arms for display installation
- Lock-out screw prevents unwanted extension
- Mounts to 16.0" wood studs, concrete and cinder block
UPC: 735029240709 In the Box Peerless-AV SP850S Pull-Out Swivel Wall Mount for 32 to 80" LCD and Plasma Flat Panel Screens (Silver ) Mount Lock Key Installation Tool Locking Swivel Tab Mounting Hardware 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV SP850S Pull-Out Swivel Wall Mount for 32 to 80" LCD and Plasma Flat Panel Screens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV SP850-S Specs | | | Supported Screen Sizes | 32 to 80" / 81.3 to 203.2 cm | | Supported Weight Capacity | 150 lb / 68.2 kg | | Number of Displays Supported | 1 | | | | Tilt Adjustment | 0 to +10
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
