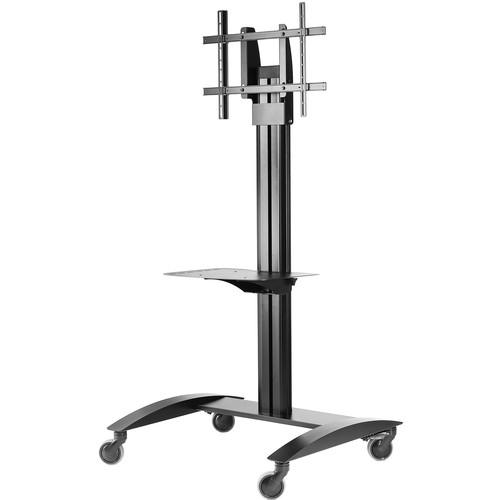

User Manual for Peerless-AV SR560M SmartMount Flat Panel Cart for 32-75" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV SR560M SmartMount Flat Panel Cart
- Product category: Flat Panel Carts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Flat Panel Carts
|
User manual for the Peerless-AV SR560M SmartMount Flat Panel Cart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The SR560M SmartMount Flat Panel Cart from Peerless-AV supports 32 to 75" flat panel displays and features a sleek design that blends well in corporate and academic settings. The 4-inch swivel casters–two of them lockable–allow you to comfortably move the cart between presentation rooms. If the cart will be a somewhat permanent fixture, you can replace the casters with four supplied plastic base pads.
The cart has an industry-standard VESA mount that directly supports virtually all displays. Moreover, you can attach your display in landscape or portrait orientation. If switching between landscape and portrait modes is a regular necessity for you, then you can add the optional Peerless Rotational Mount (MFR # RMI2C), which lets you switch between the two modes on the spot without removing the display. A component shelf is included for placing a remote control and other accessories on. Both the display and shelf can be vertically adjusted along the entire height of the column, which is about 60" tall.
The SR560M has a textured black powder coat finish that helps hide fingerprints and dust. An integrated cable management system keeps cables protected and almost entirely out of sight. Cables can be set to enter or exit anywhere along the column.
A variety of other add-on accessories are also available from Peerless for upgrading this cart as your needs require. These include safety belts, glass and metal shelves, a video-conferencing camera shelf, a laptop arm, an electrical outlet strip, and more. - Key Features
-
- Supports 32 to 75" flat panel displays
- 150 lb weight capacity
- 10 lb shelf weight capacity
- Includes component shelf
- Display and shelf can be adjusted along the entire length of the center column, which is approximately 60"
- Industry-standard VESA display mount
- Open frame adapter helps maintain access to your display's ports
- Supports landscape and portrait mounting (an optional Rotational Mount allows you to switch between these two modes on the spot)
- -5° plumb adjustment to keep even a heavy display level
- Pre-assembled base
- Four 4" casters, two lockable
- Casters are removable and replaceable with included base pads for more permanent installations
- Textured black powder coat finish helps hide fingerprints and dust
- Integrated cable management system
- Upgradeable with a variety of Peerless accessories
- UL/cUL certified
UPC: 735029247715 In the Box Peerless-AV SR560M SmartMount Flat Panel Cart for 32-75" Displays Component Shelf Assembly Hardware 2 x Swivel Casters 2 x Locking Casters 4 x Plastic Base Pads Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV SR560M SmartMount Flat Panel Cart for 32-75" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV SR560M-NEW Specs | Supported Screen Sizes | 32 to 75" / 81.3 to 190.5 cm | | Mounting-Hole Pattern | 200 x 200 to 600 x 400 mm | | Load Capacity | 150 lb / 68 kg | | Number of Shelves | 1 | | Construction Material | Aluminum | | Number of Casters | 4, 2 x Lockable | | Caster Size | 4" / 10.2 cm | | Dimensions | 35.0 x 68.4 x 29.0" / 88.9 x 173.7 x 73.7 cm | | Weight | 66 lb / 29.9 kg | | Warranty Length | Limited 5-Year Warranty | | | | Package Weight | 79.5 lb | | Box Dimensions (LxWxH) | 48.0 x 38.0 x 7.0" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
