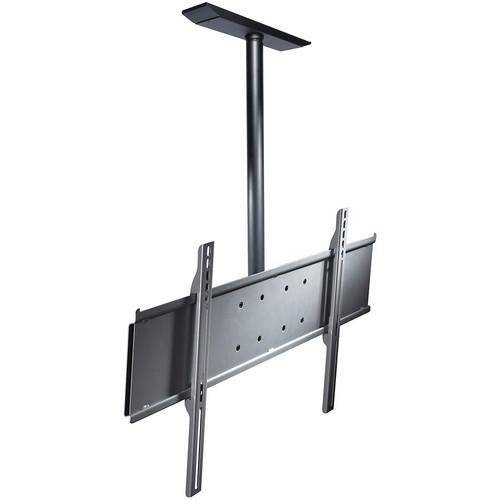

User Manual for Peerless-AV Straight Column Ceiling Mount for Flat Panel Screens Click to enlarge the picture
Contents of the user manual for the Peerless-AV Straight Column Ceiling Mount for
- Product category: Monitor Ceiling Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Ceiling Mounts
|
User manual for the Peerless-AV Straight Column Ceiling Mount for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The white Straight Column Ceiling Mount for Flat Panel Screens from Peerless Industries features a straight column from the ceiling attachment point to the flat panel screen. It is suitable for installation in sports facilities, airports, lobbies, or retail environments. It delivers 20° of adjustable tilt and 360° of swivel. This mount comes complete with a 2.5’ fixed length extension column, theft-resistant security fasteners, and a ceiling plate. The antimicrobial coating inhibits the growth of bacteria, mold, and fungus on the surface.
In case a different length is needed, a fixed or adjustable length extension column (sold separately) can be used with or in place of the 2.5' included extension column (accessory extension column connector required). Model-specific or universal-style PLP adapter plates are also available to match your screen make and model (both sold separately). - 0 to 20° adjustable tilt and 360° swivel
- Screen mounts vertically or horizontally (landscape mode only with UNL plate, sold separately)
- Uses a standard 1 1/2" - 11.5 NPT schedule 40 pipe
- Additional length can be added for lowering the mount 1
Please Note: By adding separately sold extension columns with or in place of the supplied column. close - Theft-resistant security fasteners secure the screen to the mount
- Comes with a ceiling plate
- Includes complete detailed installation instructions for wood and concrete structures
- VESA compliant mounting pattern
In the Box Peerless-AV Straight Column Ceiling Mount for Flat Panel Screens (White) Theft-Resistant Security Fasteners Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Straight Column Ceiling Mount for Flat Panel Screens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV PLCM-UNL-CP-AWQ Specs | Screen Size (Diagonal) | Minimum to Maximum: 32.0 to 65.0" (81.2 to 165.1 cm) | | VESA Hole Pattern | 600 x 400 mm | | Security Features | Security hardware | | Distance | 33.0" (83.8 cm) from ceiling | | Tilt | 0 to 20° adjustable | | Swivel | 360° | | Weight Capacity | 200.0 lb (90.7 kg) | | Dimensions | 30.75 x 42.34 x 4.3" (781.05 x 1075.43 x 109.22 mm) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
