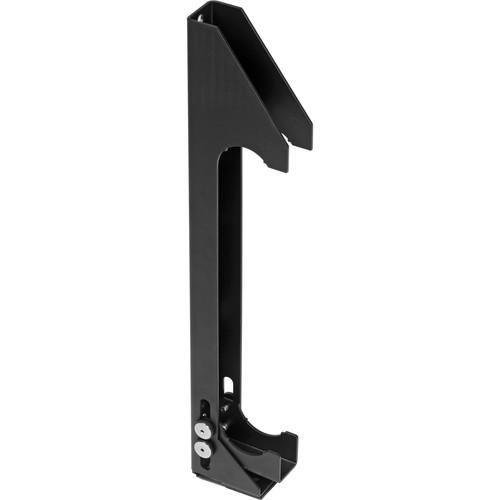

User Manual for Peerless-AV Truss Mount for 12" Truss Click to enlarge the picture
Contents of the user manual for the Peerless-AV Truss Mount for 12" Truss
- Product category: Monitor Pole & Truss Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Pole & Truss Mounts
|
User manual for the Peerless-AV Truss Mount for 12" Truss contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description Mount your displays on a standard 12" truss with this Truss Mount from Peerless-AV. This solution consists of a pair of truss mounts that have VESA connections. VESA 100 to 400 sizes are supported with a maximum weight restriction of 175 pounds. Displays can be mounted in landscape or portrait orientation with a simple turn of the adjustment knob. Separately available VESA-compliant adapters open up even more possibilities for display positioning. - Truss clamp can be quickly attached or removed from a truss without the use of tools
- Adjustable to various 12" truss manufacturers
- VESA compliant mounting patterns for attaching directly to the display
- Can be attached to the truss running vertically or horizontally
- Compatible with a select group of flat, tilt, pivot, and video wall mounts
- Ideal for rental and staging applications with repeated set up
UPC: 735029297949 In the Box Peerless-AV Truss Mount for 12" Truss (Pair) 2 x Hook on Adapter Bracket 4 x 1/4-20 x 1/2" Taptite Phillips Screws 2 x Knobs 4 x M8 x 16 mm Phillips Screws 4 x M6 x 12 mm Phillips Screws Limited 5-Year Warranty Brochure PDF 166.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Truss Mount for 12" Truss in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DSF290 Specs | Number of Displays | 1 | | Mounting-Hole Pattern | 100 x 100 mm, 120 x 180 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 200 mm, 600 x 400 mm, 800 x 200 mm, 800 x 400 mm | | Maximum Screen Size | 90" / 228.6 cm | | Minimum Screen Size | 40" / 101.6 cm | | Bracket Load Capacity | 175 lb / 79 kg | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Maximum Extension | None | | Dimensions (W x H x D) | 1.6 x 20.5 x 3.7" / 40.6 x 520.7 x 93.9 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 20.4 x 10.1 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
