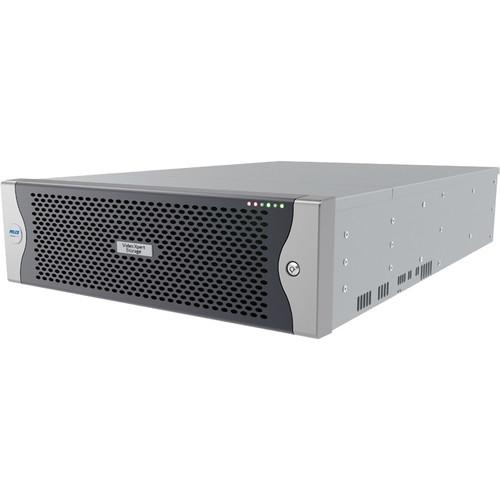

User Manual for Pelco 48TB VideoXpert E1-VXS Enterprise Storage Server Click to enlarge the picture
Contents of the user manual for the Pelco 48TB VideoXpert E1-VXS Enterprise Storage
- Product category: Dedicated Storage Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Dedicated Storage
|
User manual for the Pelco 48TB VideoXpert E1-VXS Enterprise Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description Maximize uptime and make sure you always have access to your mission-critical video data with the 48TB VideoXpert E1-VXS Enterprise Storage Server from Pelco. Designed for use with your VideoXpert system, this high-density, high-availability recording platform captures, stores, and serves video using the RAID 6 storage configuration to provide double-parity protection of recorded data. The hard drive bay is cooled by high-capacity redundant fans to ensure that the drives are kept at an optimal operating temperature while fully redundant power supplies guard against power supply failure.
The VideoXpert Storage server's operating system is contained in an SSD, freeing more space for video and maximizing performance and throughput. The RAID array's HDDs are front loading and hot swappable, making it easy to remove and replace failed drives. The server is designed to maintain performance levels in both normal and RAID error conditions to prevent dips in performance. The E1-VXS includes the dedicated VideoXpert Enterprise software, complete with a 3-year upgrade plan and Pelco support. The hardware platform does not require per-channel licensing and there are no recurring costs associated with recording cameras.
VideoXpert Storage maximizes support for recording groups within VideoXpert. It allows you to configure pre- and post-event recording periods within VideoXpert, so that you capture the appropriate amount of video for any event. You can also configure "bump-on-alarm" recording schedules. The server can be set to operate using unicast or multicast streams, which makes for easy integration into your surveillance network. VideoXpert Storage also supports failover and redundant recording schemes, ensuring your video remains available even if a single server in the cluster fails. Finally, the E1-VXS is ONVIF Profile S compliant, ensuring compatibility with a wide range of third-party IP and Pelco Optera cameras. - Recording throughput of up to 450 Mb/s (300 streams) for write-intensive applications
- RAID 6 storage configuration protects recorded data
- ONVIF Profile S compliant
- Supports 3rd party cameras without a translation interface
- Multicast recording support allows for recording of multicast data streams in restricted bandwidth scenarios
- Failover and redundant recording
- Serves up to 32 simultaneous playback streams independently of recording throughput
- Supports audio recording and playback for Pelco cameras
- Includes VideoXpert Enterprise-level software with 3-year upgrade plan and support
- Maintains performance levels during RAID error conditions
UPC: 700880337646 In the Box Pelco 48TB VideoXpert E1-VXS Enterprise Storage Server USB Drive Rackmount Kit Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco 48TB VideoXpert E1-VXS Enterprise Storage Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco VideoXpert Specs | | | Processor | Intel Xeon E3-1276 v3 | | RAM | 32 GB DDR3 ECC | | Operating System | Microsoft Windows Server 2012 | | SSD Storage (OS) | 200 GB | | RAID Level | RAID 6 | | Effective Capacity | 32.7 TB | | Drive Interface | SAS / SATA II | | USB Ports | 2 x USB 2.0, Front
2 x USB 2.0, Rear
2 x USB 3.0, Rear | | | | Interface | 2 x RJ45 1 Gb/s Ethernet Ports (1000Base-T) | | Throughput | Recording: 300 Streams / 450 Mb/s
Viewing: 32 Streams / 176 Mb/s | | | | Front Panel | Unit Status: Blue, Red, Off
Primary Network: Green, Off
Secondary Network: Green, Off
OS Drive (SSD) Status: Amber, Off
RAID Drives (HDD): Blue, Red, Off
Power Status: Green, Off
Power Fail Status: Red, Off | | | | Power Input | 100 to 240 VAC, 50/60 Hz, Autoranging | | Power Supply | Internal, Redundant | | Power Consumption | Operating Average:
At 120 VAC: 308 W, 2.57 A, 1051 BTU/Hour
At 240 VAC: 302 W, 1.26 A, 1031 BTU/Hour | | | | Operating Temperature | 32 to 95°F / 10 to 35°C at Air Intake | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Relative Humidity | Operating: 20 to 95%, Non Condensing
Non Operating: 5 to 95%, Non Condensing | | Operating Altitude | -50 to 10,000' / -16 to 3048 m | | Operating Vibration | 0.25 G at 3 to 200 Hz at Sweep Rate of 0.5 Octave/Minute | | | | ONVIF | ONVIF Profile S | | Certifications & Ratings | CE Class A, FCC Class A, ICES-003, UL/cUL Listed, C-Tick, CCC, and KCC | | | | Material of Construction | Cabinet: Steel and Plastic | | Rack Height | 3 RU | | Dimensions | 25.0 x 17.2 x 5.2" / 64.8 x 43.7 x 13.2 cm | | Weight | 78 lb / 35.5 kg |
