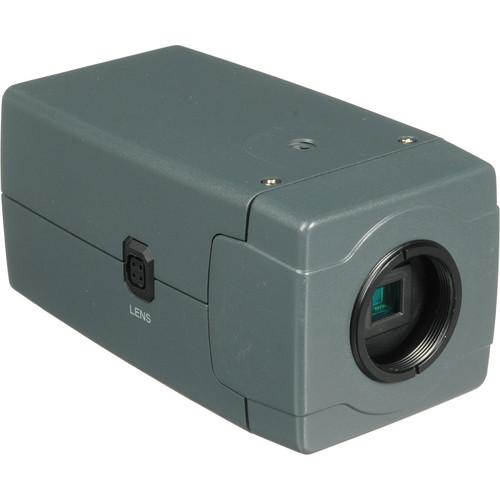

Product description The Pelco 650 TVL Digital Day/Night Color Box Camera is an ideal choice for capturing detailed images of a surveillance area with fixed lighting conditions. This camera provides high-resolution color images up to 650 TVL, and features the digital electronic day/night function that enables it to provide uninterrupted surveillance be it day or night. The camera also features motion detection for sensing movement in the scene. In addition, you can also block out certain confidential regions of the image for security reasons.
Using 2D-DNR, the box camera digitally corrects any video noise that could cause blurring or distortion in the images by minimizing the signal-to-noise ratio penalties. Automatic gain control adjusts the signal strength to maintain a constant brightness level. With BLC the camera will adjust the video gain to correct the exposure when the object being captured is in front of a bright light. The auto white balance adjusts the red and blue signals by taking a standard white color reference to get the most natural colors.
Since this camera conforms to NTSC standards, color video signals do not require any additional processing. Moreover, it comes with an UTP output for transmitting high-quality video.
A standard C- or CS-mount manual or DC iris lenses can be attached to this camera for reliable monitoring of the surveillance area. - 1/3" format CCD imager captures NTSC videos at a high resolution of up to 650 TVL
- Minimum illumination of 0.25 lux at f1/.2 and captures detailed color imagery in both day and night conditions
- Consists of a standard CS lens mount and can be used with fixed, manual, or auto iris (DC drive) lenses
- Improved DSP (digital signal processing) circuit offers a signal-to-noise ratio of 48 dB (or better) to ensure non-grainy images
- Digital Electronic Day/Night function for uninterrupted 24-hour surveillance
- Automatic Gain Control (AGC) provides clear images in low-light conditions by adjusting the signal level with the change in lighting conditions
- Backlight compensation adjusts the video gain to correct the exposure when the object being captured is in front of a bright light
- Automatic white balance adjusts the red and blue signals by taking a standard white color reference to get the most natural colors
- 2D noise reduction for digital noise correction to minimize blur or distortion in images
- Privacy zones function allows you to block certain portions of an image for security reasons
- Motion detection triggers an alarm when motion is detected in a designated portion of the video display
- Adaptive Tone Reproduction (ATR) to compensate for gradation of subjects to an optimum Level
- OSD (On-screen Display) offers an intuitive and convenient interface for easy operation
- Built-in Unshielded Twisted Pair (UTP) output saves wiring and installation costs
- Auto-sensing power (24 VAC or 12 VDC with internal synchronization)
UPC: 700880294956 In the Box Pelco 650 TVL Digital Day/Night Color Box Camera (No Lens) Installation Manual Lens Mounting Cap Hexagonal & Minus Wrench C Adapter Ring Auto Iris Lens Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco 650 TVL Digital Day Night Color Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco C20-CH-6 Specs | | | Imaging Device | Sony 1/3" EXview HAD CCD II, 960H | | Signal Processing | Sony new digital signal processor Effio-E | | Picture Elements | NTSC 976 (H) x 494 (V), approximately 480k | | Sensing Area | 0.19 x 0.12" (4.7 x 3.5 mm) | | Scanning System | NTSC 525 lines, 2:1 interlace | | Synchronization | Internal | | Horizontal Resolution | 650 TVL | | Auto-Iris Lens Support | DC drive | | Sensitivity | 0.25 lux, f/1.2, 30 IRE | | Signal-to-Noise Ratio | Electronic Day/Night Switch Signal-to-Noise Ratio
48 dB (>52 dB by parameter adjustment) | | Automatic Gain Control | On/Off 35 dB | | Backlight Compensation | Yes | | White Balance | ATW/push lock/manual/anti-CR/user2/user/push | | Color Correction | With white balance | | Gamma | Selectable (ATR) | | Video Output | 1 Vp-p, 75 ohms | | Auto White Balance Range | 2,500 to 9,500°K | | Digital Noise Reduction (DNR) | 2D | | Privacy Zone | Yes | | Motion Detection | Yes | | Camera Titles | Yes | | | | Lens Mount | CS mount | | Camera Mount | ¼" UNC-20 screw, top or bottom of camera housing | | Certifications | • CE, Class B
• FCC, Class B
• UL/cUL Listed | | | | Power Requirement | 12 VDC/24 VAC 10% to -15%, 60 Hz | | Power Consumption | 3.5 W | | Power Connector | 2-pin terminal block with push lock, or line cord on 220 VAC models | | Video Connector | BNC | | Auto Iris Control | 4-pin connector (miniature square) | | | | Operating Humidity | 20% to 90%, non-condensing | | Storage Humidity | 20% to 90%, non-condensing | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Dimensions (L x W x H) | 4.25 x 2.36 x 2.17" (108 x 60 x 55 mm) | | Weight | 0.66 lb (0.3 kg) | | | | Package Weight | 1.235 lb | | Box Dimensions (LxWxH) | 8.8 x 4.9 x 4.55" |
