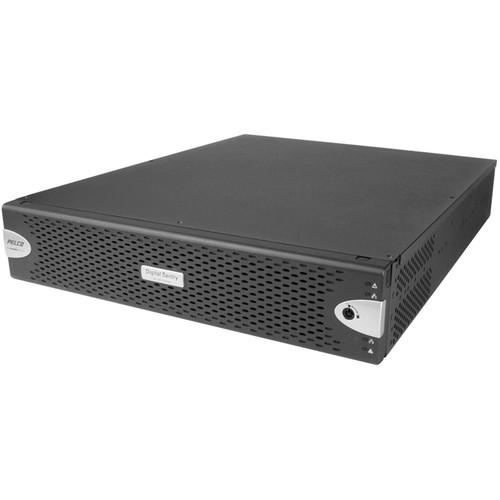

User Manual for Pelco DSSRV2-040DV-D Digital Sentry H.264 Network Video Recorder Click to enlarge the picture
Contents of the user manual for the Pelco DSSRV2-040DV-D Digital Sentry H.264 Network
- Product category: Network Video Recorders (NVRs) Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Network Video Recorders (NVRs)
|
User manual for the Pelco DSSRV2-040DV-D Digital Sentry H.264 Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The 4TB DSSRV2-040DV-D Digital Sentry H.264 Network Video Recorder from Pelco is optimized to deliver essential hardware support for the DS NVs video management software (VMS) without the risk of integrating hardware and software. Boosted by the 4th Generation Intel Xeon processor and 8GB of RAM, the Digital Sentry NVR provides an optimal combination of processing power and reliability to meet the demands of HD video recording and playback operations. The system is powered to support up to 128 combined IP and analog video streams, with up to 64 analog cameras supported via the optional ENC5416 directly attachable encoder (sold separately). Analog streams are also supported using Pelco and third-party encoders. The NVR delivers total available throughput of 300Mb/s for recording of analog and IP video streams as well as playback and export through the DS ControlPoint client. When determining the maximum number of cameras and the desired frame rate to host on every system, the number of concurrent client connections, the number of streams likely to be viewed in playback on each client, and the bandwidth required to support the client connections must be taken into consideration. The NVR functions as a stand-alone system or as part of a network of servers, monitored from the DS ControlPoint user interface. The system can be deployed solely as a network video recorder, as a digital video recorder (DVR), or as a hybrid NVR. Thanks to the 2 gigabit network ports, handy network architecture planning is facilitated by allowing 1 port to be dedicated to IP cameras, while the second network port is used for client connections. 2 DVI-D ports provide a convenient connection for high-resolution digital monitors for use with HD cameras. The NVR incorporates a SSD system drive. With increased read-write speeds and no moving parts, the SSD system drive increases the reliability, uptime, and responsiveness of the system. The 4TB SSD drive is hot-swappable when configured for internal RAID 5 storage with the optional RAID 5 controller card (sold separately). External storage is supported through USB attached storage or by using the DSSRV-SCSI interface card (sold separately) connected to DX8100HDDI storage of up to 24TB. The external storage can be configured for JBOD storage of software-controlled RAID 5 storage. The unit comes with a US power cord and a DVD±RW optical drive.Front panel LED displays on the recorder provide heads-up information on system operation. The LEDs are integrated with the new Digital Sentry System Information (DSSI) utility, providing critical, real-time statistics on system resource utilization, temperature, and throughput status. This NVR is DIACAP (Department of Defense (DoD) Information Assurance Certification and Accreditation Process) certified. - Digital Sentry Network Video Recorder with a 4TB internal SSD
- Unit can be rack mounted and requires 2RU of space
- 300Mb/s to support IP and analog video
- Supports up to 128 IP camera streams; up to 64 analog cameras
- Optimized to support pre-installed DS NVs software
- Records H.264, MJPEG, and MPEG-4 IP streams
- Supports Pelco and third-party IP cameras and network encoders
- Expandable by networking an unlimited number of servers and encoders (dependent on available network bandwidth
- Compatible with DS ControlPoint for simultaneous monitoring of all DS series and DX series products in a single client interface
- Network health and event monitoring support through simple network management protocol (SNMP) and new Digital Sentry System Information (DSSI) utility
- Compatible with the DS archive utility
- Recording rate configurable per individual camera
- Support for DS DataPoint integration
|
Upload User Manual
Have you got an user manual for the Pelco DSSRV2-040DV-D Digital Sentry H.264 Network Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco DSSRV2-040DV-D Specs | | | Supported Standards | NTSC/PAL | | Processor | Intel Xeon E3-1275 v3 | | Operating System | Windows 7 Ultimate 64-bit SP1 | | Throughput | 300 Mb/s | | Internal Memory | 8 GB DDR ECC RAM | | User Interface | DS ControlPoint | | Internal Storage | 4 TB | | External Storage | Pelco's DX8100HDDI or third-party SCSI targets (requires optional DSSRV-SCSI) Card sold separately. | | System Drive | SSD | | Storage | 4 x 3.5" hard drive bays | | Optical Drive | DVD
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
