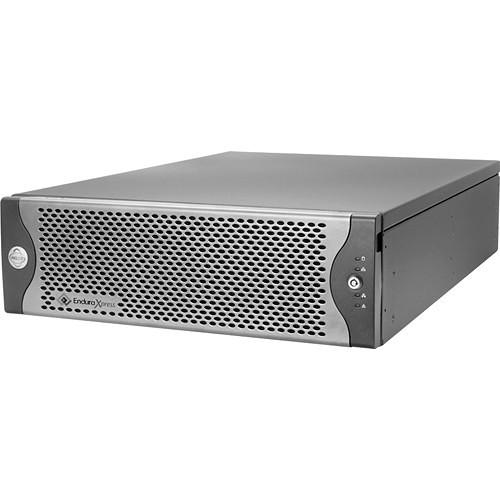

User Manual for Pelco EE564-12-US 64-Channel EnduraXpress Integrated Recording & Management Platform Click to enlarge the picture
Contents of the user manual for the Pelco EE564-12-US 64-Channel EnduraXpress Integrated Recording
- Product category: Network Video Recorders (NVRs) Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Network Video Recorders (NVRs)
|
User manual for the Pelco EE564-12-US 64-Channel EnduraXpress Integrated Recording contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco EE564-12-US 64-Channel EnduraXpress Integrated Recording and Management Platform delivers quality performance, reliability, and robustness of an enterprise-class, mission-critical storage management system. It offers ease of installation and management for delivering a cost-effective solution to small-scale installations. The custom hardware components of this recording and management platform have been specifically designed to deliver sustained high throughput for recording and playback. It can handle a maximum of 250 Mb/s of sustained write throughput across 64 streams and an additional 32 simultaneous playback streams. This performance is maintained whether the system is operating under normal conditions, dealing with disk drive errors, or rebuilding the RAID array.This Recording and Management Platform offers energy efficiency by consolidating disparate components into a single chassis. The integration of the recording server, recording software, and storage array into a highly optimized chassis can easily support standard resolution and Megapixel camera recording workloads. The purpose-built and optimized design reduces annual operating costs by eliminating the cost of additional servers and the associated heating, ventilation, and cooling requirements.A CompactFlash card (sold separately) hosts the operating system for higher reliability over traditional hard disk drives. To mitigate any downtime resulting from CompactFlash errors, the database is striped across the storage array.The RAID 6 storage configuration provides double parity protection of recorded data. The hard drive bay is cooled through the use of high capacity, redundant fans to ensure that the drives are kept at an optimum operating temperature. The fully redundant power supplies guard against any power supply failure.An easy access to the hard disk drives and the CompactFlash card is available from the front panel; while a unique rail system allows access to a failed fan, should it need replacement. Temperature sensors installed throughout the chassis detect possible airflow obstruction or clogged intake filters. The use of enterprise-class SAS technology provides good enclosure management and monitoring. Notifications of potential or actual issues are transmitted to the specified user interfaces for action through Simple Network Management Protocol (SNMP) messages and traps. If additional storage capacity is required, the capacity can be expanded using third-party storage arrays with an optional Fibre Channel interface.The EE564-12-US EnduraXpress Integrated Recording and Management Platform incorporates a wizard-driven installation procedure that guides the integrator through a step-by-step installation, which automates most processes. The integrated DHCP (Dynamic Host Configuration Protocol) server provides DHCP addresses to IP cameras or client workstations. The integrated network time protocol manager can be directed at a network time server, or it can act as the time source for all cameras and client workstations on the network. The deterministic performance of the hardware and software combination allows integrators to easily estimate, size, and configure the system to meet their storage and performance requirements.The cameras from the Pelco EE500 Series are viewed through a PC running the supplied Endura workstation client software, which provides access to all operation and configuration features in a unified, intuitive graphical user interface. The interface utilizes drag and drop operations, keyboard shortcuts, built-in ToolTips, and online help to enable the most direct, intuitive interactions with cameras and components distributed across the network. In addition, operators can add Endura viewing devices such as the VCD5202 (sold separately) for virtual-matrix style control and network decoders to build out a monitor wall for surveillance operations.The mapping interface of this recording and management platform allows for a comprehensive view of the entire facility with integrated alarm monitoring and visual verification capabilities. The software easily accommodates standard resolution, HD (High Definition), and Megapixel camera sources, decodes MPEG-4 and H.264 (Baseline, Main, and High profiles), includes support for Zone of Interest, direct PTZ control and digital zoom, alarm management; includes the option of utilizing camera sources with intelligent video content analysis at the edge, efficient search and export mechanisms, and a complete administration and configuration console.The EnduraXpress Integrated Recording and Management Platform includes built-in support for Pelco IP cameras, while third party cameras can be added using the UDI5000-CAM universal device interface (sold separately). Additional user interfaces, including network decoders and virtual console displays can be added to expand viewing capabilities into a full virtual matrix. This 12TB CCTV-Network Video Recorder doesn’t offer an expansion option. - Recording throughput up to 250 Mb/s meets demanding performance requirements for write-intensive applications
- Hardware designed to eliminate single points of failure, including redundant fans, power supplies, and RAID 6 storage for optimum reliability
- Built-in EnduraStor storage management increases storage efficiency by grooming recorded streams based on age and priority
- Ability to serve thirty-two simultaneous playback streams
- Performance levels maintained in normal and RAID error conditions
- Built-in diagnostic monitoring provides preventative maintenance and SNMP monitoring
- Software runs on a standard PC with Microsoft Windows XP Professional and 32-bit versions of Windows Vista Business, Ultimate, or Enterprise Operating Systems
- Support for standard and Megapixel resolution cameras
- Support for MPEG-4, H.264 Baseline, Main, and High-Profile Codecs
- Zone of Interest allows independent view and management of specified areas within a camera's field of view in live or playback views
- Digital zoom in live or playback views
- Convenient tear-off options to customize display
- EnduraView technology mitigates CPU processing requirements and network bandwidth consumption for multi-screen configurations
- Integrated configuration and administration interface provides full-management capability for all components
- On-screen PTZ (Pan / Tilt / Zoom) controls including click to center and PTZ to selected area
- Advanced search capabilities including Motion, Alarm, Event, and Camera
- Integrated event and alarm monitoring and management interface
UPC: 700880287101 In the Box Pelco EE564-12-US 64-Channel EnduraXpress Integrated Recording & Management Platform (12TB) 2 x Power Cord Rack Mount Kit (Brackets, Rails, Hardware) 2 x Endura WS5200 Software Licenses Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco EE564-12-US 64-Channel EnduraXpress Integrated Recording & Management Platform in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco EE564-12-US Specs | | | Operating System | Linux | | RAID Level | RAID 6 | | Effective Capacity | Up to 27.2 TB | | Storage | 12 TB | | Drive Interface | SAS / SATA | | PC Requirements | Web Browser: Internet Explorer 6.x (or later) with Adobe Flash Player 10 (or later) (recommended) | | | | Interface | 2, 1 Gb/s Ethernet RJ-45 ports (1000 Base-T) | | Auxiliary Interfaces | USB 2.0: 3 ports (2 rear, 1 front) | | | | Power | Blue Pelco badge | | Software | Green, amber, red (based on diagnostics) | | Ethernet Ports | Port 1: Green, redPort 2: Reserved | | Hardware | Status Indicator: Green, red | | Hard Drive | Status Indicator: Green, red | | | | Power Input | 100 to 240 VAC, 50 / 60 Hz, auto-ranging | | Power Supply | Internal, dual-redundant, hot swappable | | Power Consumption | 100 VAC: 262 W, 2.65 A, 895 BTU/H115 VAC: 263 W, 2.31 A, 895 BTU/H220 VAC: 254 W, 1.25 A, 868 BTU/H | | | | Temperature | Operating: 50 to 95°F (10 to 35°C) at unit air intakeStorage :–40 to 149°F (–40 to 65°C) | | Humidity | Operating: 20 to 80%, non-condensing | | Maximum Humidity Gradient | 10% per hour | | Operating Altitude | -50 to 10,000' (-16 to 3,048 m) | | Operating Vibration | 0.25 G at 3 to 200 Hz at a sweep rate of 0.5 octave per minute To prevent hard disk drive failure and unit damage, make sure the temperature at the air intake of the unit is continuously within the operating temperature range. | | Certifications & Ratings | CE, Class A: meets EN50130-4 standard requirements
FCC, Class A
UL / cUL listed
C-Tick
S-Mark for Argentina
CCC | | | | Construction | Steel cabinet | | Finish | Bezel: Gray metallic with black end capsChassis: Black matte finish | | Mounting Options | Rack, 3 RU per unit (rack rails and hardware are supplied) | | Dimension (D x W x H) | Without Rails: 24.3 x 17.0 x 5.2" (61.8 x 43.2 x 13.2 cm) | | Weight | Without Drives: 46.40 lb (21.04 kg)With Drives: 66.80 lb (30.29 kg) | | | | Package Weight | 79.0 lb | | Box Dimensions (LxWxH) | 30.0 x 23.5 x 16.0" |
