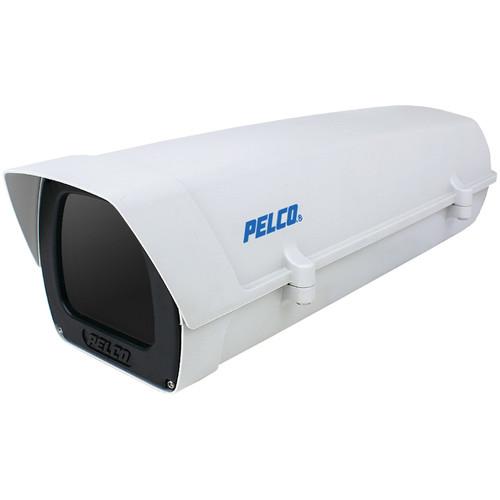

User Manual for Pelco EH14-2 24VAC Indoor Outdoor, Compact, Dust- & Moisture-Resistant Camera Enclosure Click to enlarge the picture
Contents of the user manual for the Pelco EH14-2 24VAC Indoor Outdoor, Compact,
- Product category: Housings Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Housings
|
User manual for the Pelco EH14-2 24VAC Indoor Outdoor, Compact, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The gray polyester powder coated EH14-2 Indoor/Outdoor, Compact, Dust- & Moisture-Resistant Camera Enclosure from Pelco offers 24 VAC power input to the camera. The enclosure is equipped with a heater/blower and is designed to operate in temperatures from –40 to 140°F (–40 to 60°C).The injection-molded enclosure is tight-fitting and IP66-rated for protection against dust and moisture. The polycarbonate plastic material is UV protected and flame-retardant. The EH14 enclosure is designed to accommodate analog cameras and IP megapixel cameras. It can be used in fixed mount applications or mounted to a PT570 Series medium duty pan/tilt (not included). - Multiple power supply options
- Temperature range from -40 to 140°F (-40 to 60°C)
- Anti-UV, flame-retardant polycarbonate plastic
- IP66 dust- and moisture-resistant
- Suitable for analog and IP network cameras
- Advanced optics for Megapixel camera support
- Equipped with heater/blower
- 24 VAC with 12 DC/24 VAC camera power (maximum 8 W)
UPC: 700880327579 In the Box Pelco EH14-2 24VAC Indoor/Outdoor, Compact, Dust- & Moisture-Resistant Camera Enclosure (Gray) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco EH14-2 24VAC Indoor Outdoor, Compact, Dust- & Moisture-Resistant Camera Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco EH14 Specs | Camera and Lens Specs | Accepts camera and lens combinations (including all wiring) up to L x W x H: 11.00 x 3.25 x 4.00" (27.94 x 8.25 x 10.16 cm) Assumes lens is fully extended. | | Viewing Window | Glass | | Latches | 2 captive Torx T25 screws | | Camera Interface Plate | 4 hex screws | | Cable Entry | 2 adjustable 0.5" (12.7 mm) NPT liquid-tight glands | | Input Power | 24 VAC | | Input Voltage | 24 VAC ±10% VAC | | Certifications | CE, Class A
Meets NEMA Type 4 and IP66 standards | | Construction | Polycarbonate plastic, UV protected and flame-retardant | | Finish | Gray polyester powder coat | | Environment | Indoor/outdoor | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -46 to 185°F (-50 to 85°C) | | Dimensions (W x H x D) | 5.82 x 4.53 x 15.75" (14.8 x 11.5 x 40.0 cm) | | Weight | 2.4 lb (1.1 kg) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 16.5 x 6.4 x 4.6" |
