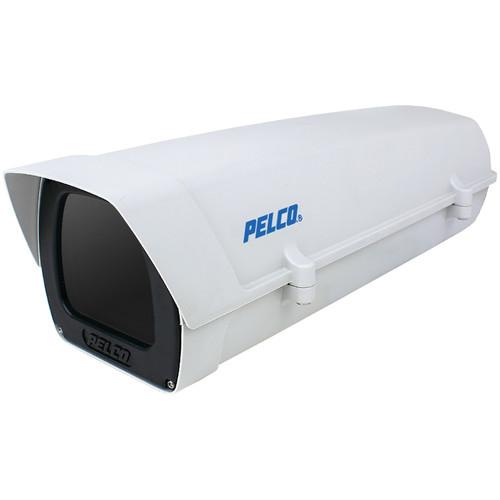

User Manual for Pelco EH14 Series Indoor Outdoor, Compact, Dust- & Moisture-Resistant Basic Enclosure Click to enlarge the picture
Contents of the user manual for the Pelco EH14 Series Indoor Outdoor, Compact,
- Product category: Housings Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Housings
|
User manual for the Pelco EH14 Series Indoor Outdoor, Compact, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The gray EH14 Series Indoor/Outdoor, Compact, Dust- & Moisture-Resistant Basic Enclosure from Pelco offers two integrated power supply options for 24VAC power input and 230VAC power input; both units supply 24VAC to the camera. The enclosure is designed to operate in temperatures ranging from -40 to 140°F (-40 to 60°C). This injection-molded enclosure is tight fitting and IP66 rated for protection against dust and moisture. The polycarbonate plastic material is UV protected and flame retardant. This EH14 series enclosure is designed to accommodate analog cameras and IP megapixel cameras. - Temperature range from -40 to 140°F (-40 to 60°C)
- Anti-UV, flame-retardant polycarbonate plastic
- IP66 dust and moisture resistant
- Suitable for analog and IP network cameras
- Input Power Options: 24 or 230VAC
- 24VAC camera power included with power supplies
- Advanced optics for megapixel camera support
UPC: 700880327562 In the Box Pelco EH14 Series Indoor/Outdoor, Compact, Dust- & Moisture-Resistant Basic Enclosure (Gray) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco EH14 Series Indoor Outdoor, Compact, Dust- & Moisture-Resistant Basic Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco EH14 Specs | Camera and Lens Specs | Accepts camera and lens combinations (including all wiring) up to 11.00 x 3.25 x 4.00" (27.94 x 8.25 x 10.16 cm) Assuming that the lens is fully extended | | Viewing Window | Glass | | Latches | 2 x Captivated Torx T25 screws | | Faceplate | 4 x Phillips screws | | Cable Entry | 2 x Adjustable 0.5" NPT liquid-tight glands | | Input Power | 24 or 230 VAC | | Input Voltage | 24 ± 10% VAC
230 ± 10% VAC | | Construction | Polycarbonate plastic, UV protected, and flame retardant | | Finish | Gray polyester powder coat | | Mounts | Ceiling: EM3000
Wall: EM1450, EM2400, EM1900U, EM22
Pedestal: EM1009U, EM1015U, MM22
Pipe/Pole: EM1109, EM2000, EM2200 Mounts are sold separately. | | Environment | Indoor/outdoor | | Certifications | CE, Class A
Meets NEMA Type 4 and IP66 standards | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Storage Temperature | -46 to 167°F (-50 to 75°C) | | Dimensions (L x W x H) | Excluding Protrusions: 15.75 x 5.82 x 4.53" (40.00 x 14.80 x 11.50 cm) | | Weight | 1.0 kg (2.2 lb) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 16.6 x 6.5 x 5.0" |
