User Manual for Pelco ENC5516 16-Channel H.264 Direct-Attached Video Encoder Click to enlarge the picture
Contents of the user manual for the Pelco ENC5516 16-Channel H.264 Direct-Attached Video
- Product category: Video Encoders & Decoders Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Video Encoders & Decoders
|
User manual for the Pelco ENC5516 16-Channel H.264 Direct-Attached Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|

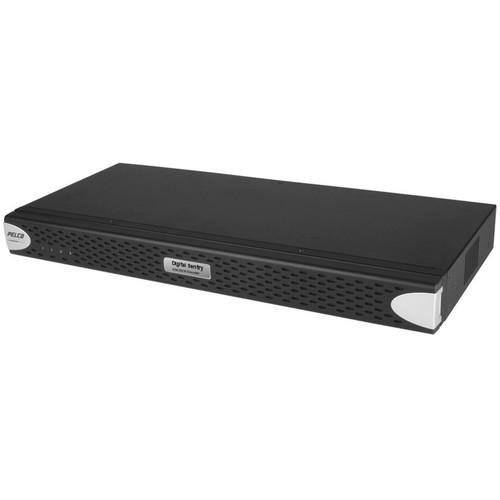

Product description The ENC5516 16-Channel H.264 Direct-Attached Video Encoder from Pelco is built to provide direct-attached support for analog cameras on the Digital Sentry network video recorder (NVR) platform. It also provides support for IP migration. The encoder unit is a convenient replacement for existing DVRs and lets customers leverage their existing analog wiring infrastructure.The encoder is used for capturing the BNC connections from other recording systems. Directly attach up to four ENC5516s through supplied cables to one DSSRV to accommodate up to 64 analog cameras. Addition of ENC5516 encoder to your DSSRV gives an integrated, high-performance IP migration platform. Note: The encoder requires an ENC5400-4PORT capture card (sold separately). - Provides direct-attached video support for Digital Sentry Network Video Recorder (sold separately)
- Supports 16 channels per encoder
- Provides 16 looping, auto-terminating video outputs
- H.264 hardware compression
- Up to 30/25 (NTSC/PAL) ips at CIF, 2CIF, and D1 per input
- Frame rates and resolutions configurable per channel
- 16 audio inputs, 16 alarm inputs, and 4 relay outputs
UPC: 700880328637 In the Box Pelco ENC5516 16-Channel H.264 Direct-Attached Video Encoder 12 VDC Power Adapter Power Cord 3 x 5-Pin Terminal Block 4 x 10-Pin Terminal Block 2 x Rack Mounting Bracket 4 x Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco ENC5516 16-Channel H.264 Direct-Attached Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco ENC5516-US Specs | | | Video Standards | NTSC/PAL | | Video Encoding | H.264, Main profile | | Video Resolutions | Analog Cameras
NTSC
D1: 720 x 480, 2CIF: 720 x 240, CIF: 352 x 240
PAL
D1: 720 x 576, 2CIF: 720 x 288, CIF: 352 x 288 | | Video Output | 2 x BNC connectors (1 for MUX and 1 for spot monitor); 16 x BNC looping video output | | Audio Input | 16 channels | | Audio Format | Pulse code modulation (PCM)
Sampling Resolution: 8- or 16-bit, Sampling Frequency: 4, 8, 16, or 32 kHz | | | | Interface | 2; RS-422, RS-485, video in | | Protocol | Pelco P, Pelco C, and Pelco D | | Alarm Relay Output | Alarms In: 16, Relays Out: 4 | | | | Input Voltage | 12 VDC (through supplied auto-ranging, 90 to 240 VAC power adapter) | | Current | 2130 mA | | Power | 25.56 W (maximum ±5%) | | Front Panel Indicators | PWR1: Green when the power source is connected
PWR2: Green when the power source is connected
LINK: Green when the host is turned on and a connection is made between the encoder and the host
INFO: Blinks green when the firmware is updating
Video Input (1 to 16 Channels): Green when detecting an active video signal on the corresponding video input connector | | | | Operating Temperature | 32 to 140°F (0 to 60°C) | | Operating Humidity | 85% maximum relative humidity, non-condensing | | Certifications | CE, Class A; meets EN50130-4 standard requirements, FCC, Class A, UL/cUL Listed, CCC, KCC, TUV | | | | Dimensions | 7.5 x 17.4 x 1.7" (18.9 x 44.2 x 4.4 cm) | | Weight | 6 lb (2.7 kg) | | | | Package Weight | 9.9 lb | | Box Dimensions (LxWxH) | 20.2 x 10.9 x 7.2" |
