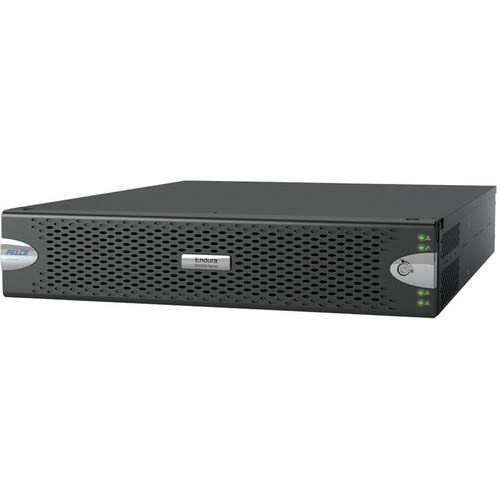

User Manual for Pelco Endura SM5200 System Manager Click to enlarge the picture
Contents of the user manual for the Pelco Endura SM5200 System Manager
- Product category: Network Video Recorders (NVRs) Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Network Video Recorders (NVRs)
|
User manual for the Pelco Endura SM5200 System Manager contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco Endura SM5200 System Manager is a network appliance that serves as the system management component of the Pelco Endura system. The SM5200 manages the discovery and registration of all Endura components and cameras on the network. When registering Pelco cameras and encoders, it acts as a secure key server. Acting as a secure public/private key exchange allows Pelco video encoders and cameras to securely sign compressed video. This can be used to authenticate video from the source as needed for law enforcement agencies or other evidentiary requirements.The SM5200 System Manager monitors the health and functionality of all components on the network. Device diagnostics are logged in its database. In addition, the system manager logs user activities such as logon, logoff, alarm response, and initiation of video export. As a management server, the SM5200 hosts user rights and permissions. Credentials are authenticated with the SM5200’s database before allowing a user to log onto any Endura client. Endura clients work in conjunction with user configurations stored in this distributed system management to expose functions and language preferences configured for each role and user account. This improves operator efficiency and minimizes training requirements. It can also interact with an LDAP server supported by Microsoft Active Directory for user authentication, providing single sign-on capability for security operators.The manager hosts the Endura Script Manager, allowing scripted responses to be executed on a given alarm condition, a programmed schedule, or by manual initiation. The unit also hosts an NTP server, enabling it to act as an NTP proxy between an atomic or GPS-based NTP server and the components on the Endura network. In the absence of an external NTP server, the system manager can act as the time source for Endura cameras and servers; however, the system will be subject to time drift inherent with COTS servers. It also provides a DHCP server that can issue and manage DHCP addresses and leases for Endura components and cameras on the network.The SM5200 is designed for the demands of a mission critical surveillance system. To ensure continuous uptime, the system manager is equipped with two solid state drives (SSD) containing the operating system in a RAID 1 configuration. In addition, redundant fans and the option of RAID 5 storage for exported video content provide insurance against hardware failures that could compromise data integrity. Users can also configure a series of up to 24 SM5200s to act in a failover capacity; the members of the failover cluster can be prioritized to take over system management responsibilities should the primary unit fall offline.Dual Gigabit Ethernet network ports allow the system manager to act as a proxy between two networks, enabling network administrators to manage the impact of surveillance video on shared network links. Network port 1 is available for Endura network traffic. Network port 2 supports IPv6 and is used for remote access only.The unit provides a browser-based interface for remote video viewing with minimal overhead. Administrators with appropriate permissions can enable or disable remote access to the system manager through the WS5200 Advanced System Manger (not included), and limit the bandwidth available from the server to remote browsers through the system manager’s web interface. This allows administrators to effectively manage the impact on shared networks. For security purposes, all remote access is initiated using HTTPS over a configurable, secure port. Administrators can also grant or limit user access to remote live view, search, playback, and export functions. A browser-based status dashboard provides vital diagnostic information on the health of the system. Administrators with the proper credentials can remotely view the status of the hardware and configure the SM5200 through a web browser.Integrated SNMP services can also provide network administrators with hardware and software status information. The system manager’s web interface allows users to stream live or recorded video in either motion JPEG or H.264 formats. Its online, real-time transcoder can convert up to 16 high resolution, high bit rate IP streams from megapixel cameras into MJPEG frames, enabling users to stream video from compatible browsers without installing additional software. Installing the Pelco Media Plugin allows users to stream full-quality H.264 video directly from the system manager through their browser. The system manager can serve up to 32 H.264 streams and 16 MJPEG streams simultaneously.A single user can view up to 16 streams of live video footage across network bandwidths as low as 256 kb/s. On networks limited to 128 kb/s, users can view up to four feeds in a 2 x 2 window. Users with appropriate credentials can also search for recorded video on Pelco NSM5200 units by camera, time, date, and recording triggers (manual, continuous, motion, or alarm). Search results can be viewed in a 1 x 1 interface with standard play, pause, fast-forward, and rewind functions, as well as a scrub bar to quickly pinpoint the segment of video required for an investigation. Recorded video segments can also be exported through the web interface. Video clips exported from the Endura network are automatically stored on the SM5200’s integrated storage array for safekeeping and future download. Videos are stored in the proprietary PEF format. This is the native format of the cameras involved and ensures that videos retain their original resolution and authentication signatures, supporting their use for evidentiary purposes. - Manages Endura IP video management system
- Administers rights and privileges for all Endura users
- Stores and administers secure keys for system level security
- Provides DHCP address management for Endura components
- Functions as a time server (NTP) for all devices on the Endura network
- Supports failover services for system redundancy
- Acts as a gateway, providing access to Endura over a public network
- Includes web interface for easy configuration 1
Please Note: The web interface is designed for light to moderate Endura users. When accessing Endura in installations with 1,500 cameras or more, the WS5200 client software should be used. close - Online video transcoder supports browser-based access to cameras and low bandwidth networks
- Browser interface supports live view, search, playback, and video export
- Includes 16 TB of storage in a RAID 5 configuration to host exported video
- Supports IPv6 over public-facing network interface
- Browser interface supports H.264 video using the Pelco Media Plugin (PMP) 2
Please Note: To view video using the Pelco Media Plugin (PMP), UDP port 57341 must be open and the client must be able to receive unobstructed UDP traffic directly from the system manager. close UPC: 700880330142 In the Box Pelco Endura SM5200 System Manager (4TB) 6' US Power Cord 2 x Bezel Key Rack Mount Kit USB Flash Drive for System Migration Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Endura SM5200 System Manager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco SM5200 Specs | | | Processor | Intel Xeon E3-1275 v3 | | Operating System | Embedded Linux | | Internal Memory | 16 GB DDR3 RAM ECC | | Internal Storage | SSD: 120 GB
HDD: 4 TB Drives 1 and 2 are SSD drives operating in a RAID 1 array, mirroring the operating system
Drives 3 to 6 are HDDs operating in a JBOD or RAID 5 configuration, depending on the number of drives | | USB Ports | 3 x USB 2.0 ports (1 x front, 2 x rear)
2 x USB 3.0 ports (rear) | | Network Interface | 2 x Gigabit Ethernet RJ-45 ports (1000Base-T) | | Supported Web Browsers | Microsoft Internet Explorer 9, Mozilla Firefox 8, Google Chrome 17 or later To access the system manager over IPv6 using Mozilla Firefox, the IPv6 address must be resolved through a DNS server or through the host file on the local machine. | | | | Buttons | Power | | Indicators | Power: Blue
Unit Status: Green, amber, red
Network Port 1: Green, amber, red
Network Port 2: Green, amber, red
Software Status: Green, amber, red
Drive Status (6X): Green, amber, red | | | | Power Input | 100 to 240 VAC, 50/60 Hz, autoranging All power cables are 3-prong, molded connector. | | Power Supply | Internal | | Power Consumption | 110 VAC / 60 Hz: 223 W, 2.03 A, 761.4 BTU/H
115 VAC / 60 Hz: 215.5 W, 1.87 A, 735.7 BTU/H
220 VAC / 60 Hz: 204.1 W, 0.93 A, 696.8 BTU/H | | | | Operating Temperature | 50 to 95°F (10 to 35°C) | | Storage Temperature | -40 to 149°F (-40 to 65°C) | | Operating Humidity | 20 to 80%, non-condensing | | Maximum Humidity Gradient | 10% per hour | | Operating Altitude | -50 to 10000' (-15 to 3048 m) | | Operating Vibration | 0.25 G at 3 Hz to 200 Hz at a rate of 0.5 octave/minute | | Certifications & Approvals | CE, Class A; meets EN50130-4 standard requirements, FCC, Class A, UL/cUL Listed, C-Tick, S-Mark for Argentina, CCC, KCC, U.S. Patent D527,390 | | | | Dimensions (D x W x H) | 20.0 x 17.1 x 3.5" (50.8 x 43.4 x 8.9 cm) | | Weight | 41.8 lb (18.9 kg) |
