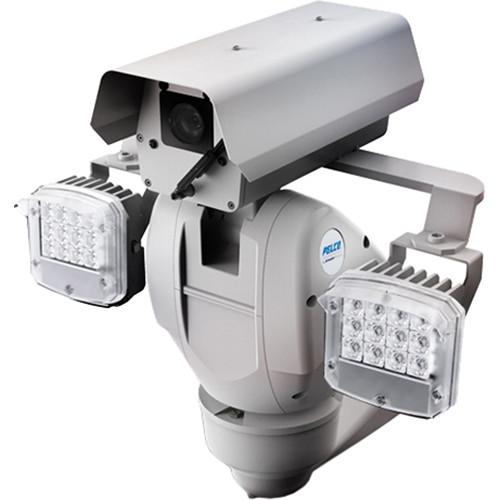

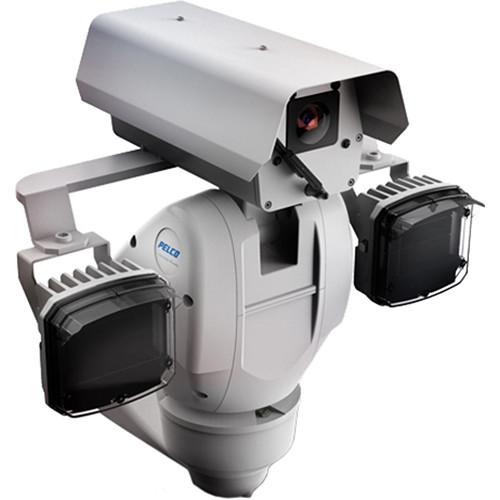

Product description Keep intruders at bay and watch over your property regardless of weather conditions with the USA-made-and-assembled Esprit Enhanced Series ES6230-12PUS 1080p Outdoor Pressurized PTZ Network Box Camera with Wiper from Pelco. Featuring a 1/2.8" CMOS sensor and a f/1.6-4.7mm 30x varifocal lens, this camera captures video at resolutions up to 1920 x 1080 at 60 fps in horizontal fields of view ranging from 63.7 to 2.3°. The camera delivers color images down to 0.008 lux at 250 ms, below which an integrated IR cut filter switches to B&W for ultra-low-light vision down to 0.001 lux. Moreover, the camera incorporates a high-speed pan/tilt system, allowing for 360° continuous panning and -90 to 40° tilting at up to 140° per second.
The ES6230-12PUS has an SD slot for edge storage and an audio input for connecting a separately available external microphone. H.264 and MJPEG configurable streams allow you to optimize storage and bandwidth use, while HPoE enables you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Integrated pressurized optics cartridge (IOC) with dry nitrogen pressurized to 10 psig (sea level, 70°F) to eliminate internal condensation and corrosion
- Internal IOC sensors for pressure reading
- IOC cartridge is IP66 rated for ingress protection
- Integrated window wiper with configurable delay and shut-off modes
- Wiper design allows for easy replacement of wiper blade
- Built-in heater, window defroster/defogger, and sun shroud
- SureVision 3.0 technology
- 130 dB wide dynamic range (WDR)
- Color vision down to 0.03 lux at 33 ms and down to 0.008 lux at 250 ms
- Maximum 1080p resolution at up to 60 fps video
- Defog mode provides three levels of fog removal within the frame for improved image quality during foggy or rainy weather conditions
- Vivid mode can be turned on/off to drastically improve contrast and color saturation
- Built-in video analytics with nine user-configurable behaviors (up to three can be run simultaneously): Abandoned object, adaptive motion detection, AutoTracker, camera sabotage, directional motion, loitering detection, object counting, object removal, and stopped vehicle
- Electronic image stabilization (EIS) to reduce impact of vibration on image quality
- Various white balance modes for handling difficult lighting conditions caused by external sources such as sodium vapor lamps
- High-speed pan/tilt mechanics
- Dual-stream H.264 smart compression
- 16 preset tours, 256 presets, 32 window blanks, 8 patterns, and 8 scans
- ONVIF Profiles S, G, and Q compliant
- 360° continuous pan rotation at up to 140° per second
- Powder-coated aluminum enclosure with stainless steel hardware
- IP66 rated for outdoor use
- Absolute operating temperature range of -50 to 140°F
- De-ice and operate from a temperature of -13°F within two hours of powering on
- Integrates with Pelco IP and hybrid video systems such as VideoXpert, Endura 2.0 (or later), Digital Sentry 7.3 (or later), and Digital Sentry NVS
- Universal mains power supply included
- Power-up recovery mode allows user to specify what operation the system will resume whenever the power is cycled
- Open collector auxiliary output for controlling external devices
UPC: 700880345368 In the Box Pelco Esprit Enhanced Series ES6230-12PUS 1080p Outdoor Pressurized PTZ Network Box Camera with Wiper (USA) Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Esprit Enhanced Series ES6230-12PUS 1080p Outdoor Pressurized PTZ Network Box Camera with Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Esprit Enhanced Specs | | | Sensor | 2.07 MP 1/2.8" CMOS | | Focal Length | 4.3 to 129mm | | Maximum Aperture | f/1.6 - f/4.7 | | Zoom | Optical: 30x
Digital: 12x | | Lens Field of View | Horizontal: 63.7 to 2.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/10,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps (8 Mb/s H.264) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X, Password Protection | | Supported Protocols | DHCP, DNS, FTP, HTTP, IGMP, IPv4/v6, NTCIP, NTP, ONVIF Profile G, ONVIF Profile Q, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco API | | Analytics | Abandoned Object, Adaptive Motion Detection, AutoTracker, Camera Sabotage, Directional Motion, Loitering Detection, Objet Counting, Object Removal, and Stopped Vehicle | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, 7 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, OS X 10.6 | | | | Recording Media | SD (Up to 2000 GB) | | Pan/Tilt | Manual Pan: 360° at 80°/s
Manual Tilt: 130° (-90 to 40°) at 40°/s
Programmed Pan: 360° at 140°/s
Programmed Tilt: 130° (-90 to 40°) at 140°/s | | Alarm I/O | 4 / 2 | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | VideoXpert, Endura, Digital Sentry, Digital Sentry NVS | | Supported Languages | Arabic
English
French
German
Italian
Korean
Portuguese
Russian
Spanish
Traditional Chinese
Turkish | | Certifications | FCC (Part 15 Class A), UL, as per Manufacturer | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3bt (100 W) | | Material of Construction | Aluminum | | Operating Temperature | -50 to 140°F / -45 to 60°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | Dimensions | H: 20.9 x W: 7.2 x L: 13.9" / H: 53.2 x W: 18.3 x L: 35.4 cm | | Weight | 30 lb / 13.6 kg |
