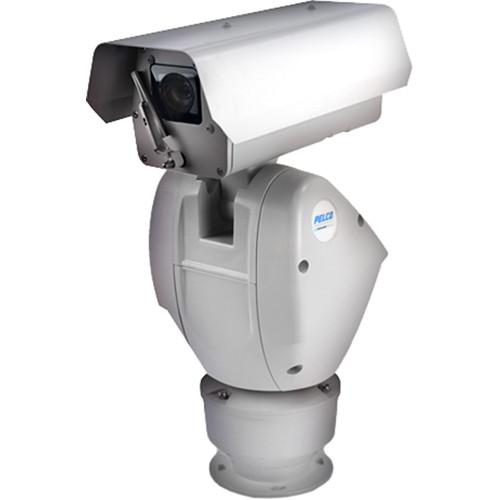

User Manual for Pelco Esprit Enhanced Series ES6230-15-R2 1080p Outdoor PTZ Network Box Camera with Night Vision & Wiper Click to enlarge the picture
Contents of the user manual for the Pelco Esprit Enhanced Series ES6230-15-R2 1080p
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Esprit Enhanced Series ES6230-15-R2 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description Keep intruders at bay and watch over your property regardless of weather conditions with the Esprit Enhanced Series ES6230-15-R2 1080p Outdoor PTZ Network Box Camera with Night Vision & Wiper from Pelco. Featuring a 1/2.8" CMOS sensor and a f/1.6-4.7mm 30x varifocal lens, this camera captures video at resolutions up to 1920 x 1080 at 60 fps in horizontal fields of view ranging from 63.7 to 2.3°. The camera is equipped with an IR cut filter and a Vari-Zoom illuminator for night vision with an effective range of up to 656'. Moreover, the camera incorporates a high-speed pan/tilt system, allowing for 360° continuous panning and -90 to 40° tilting at up to 140° per second.
The ES6230-15-R2 has an SD slot for edge storage and an audio input for connecting a separately available external microphone. H.264 and MJPEG configurable streams allow you to optimize storage and bandwidth use, while ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Integrated window wiper with configurable delay and shut-off modes
- Wiper design allows for easy replacement of wiper blade
- Built-in heater, window defroster/defogger, and sun shroud
- SureVision 3.0 technology
- 130 dB wide dynamic range (WDR)
- Vari-Zoom IR illuminator for night vision up to 656'
- Color vision down to 0.03 lux at 33 ms and down to 0.008 lux at 250 ms
- Maximum 1080p resolution at up to 60 fps video
- Defog mode provides three levels of fog removal within the frame for improved image quality during foggy or rainy weather conditions
- Vivid mode can be turned on/off to drastically improve contrast and color saturation
- Built-in video analytics with nine user-configurable behaviors (up to three can be run simultaneously): Abandoned object, adaptive motion detection, AutoTracker, camera sabotage, directional motion, loitering detection, object counting, object removal, and stopped vehicle
- Electronic image stabilization (EIS) to reduce impact of vibration on image quality
- Various white balance modes for handling difficult lighting conditions caused by external sources such as sodium vapor lamps
- High-speed pan/tilt mechanics
- Integrated optics package (IOP)
- Dual-stream H.264 smart compression
- 16 preset tours, 256 presets, 32 window blanks, 8 patterns, and 8 scans
- ONVIF Profiles S, G, and Q compliant
- 360° continuous pan rotation at up to 140° per second
- Powder-coated, aluminum enclosure with stainless steel hardware
- IP66 rated for outdoor use
- Absolute operating temperature range of -50 to 140°F; within two hours after power-up, the unit can de-ice and be operational from a temperature of -13°F
- Integrates with Pelco IP and hybrid video systems such as VideoXpert, Endura 2.0 (or later), Digital Sentry 7.3 (or later), and Digital Sentry NVS
- AC powered (100 to 240 VAC)
- Universal mains power supply included
- Power-up recovery mode allows user to specify what operation the system will resume whenever the power is cycled
- Open collector auxiliary output for controlling external devices
UPC: 700880345399 In the Box Pelco Esprit Enhanced Series ES6230-15-R2 1080p Outdoor PTZ Network Box Camera with Night Vision & Wiper Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Esprit Enhanced Series ES6230-15-R2 1080p Outdoor PTZ Network Box Camera with Night Vision & Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Esprit Enhanced Specs | | | Sensor | 2.07 MP 1/2.8" CMOS | | Focal Length | 4.3 to 129mm | | Maximum Aperture | f/1.6 - f/4.7 | | Zoom | Optical: 30x
Digital: 12x | | Lens Field of View | Horizontal: 63.7 to 2.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/10,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X, Password Protection | | Supported Protocols | DHCP, DNS, FTP, HTTP, IGMP, IPv4/v6, NTCIP, NTP, ONVIF Profile G, ONVIF Profile Q, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco API | | Analytics | Abandoned Object, Adaptive Motion Detection, AutoTracker, Camera Sabotage, Directional Motion, Loitering Detection, Object Counting, Object Removal, and Stopped Vehicle | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows XP, 7 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, OS X 10.6 | | | | Recording Media | SD (Up to 2000 GB) | | Pan/Tilt | Manual Pan: 360° at 80°/s
Manual Tilt: 130° (-90 to 40°) at 40°/s
Programmed Pan: 360° at 140°/s
Programmed Tilt: 130° (-90 to 40°) at 140°/s | | Alarm I/O | 4 / 2 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 656.17' / 200.00 m | | Video Management Software | VideoXpert, Endura, Digital Sentry, Digital Sentry NVS | | Supported Languages | Arabic
English
French
German
Italian
Korean
Portuguese
Russian
Spanish
Traditional Chinese
Turkish | | Certifications | FCC (Part 15 Class A), UL, as per Manufacturer | | Internal Storage | None | | Power Source | AC | | Material of Construction | Aluminum | | Operating Temperature | -50 to 140°F / -45 to 60°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | Dimensions | H: 20.9 x W: 7.2 x L: 13.9" / H: 53.2 x W: 18.3 x L: 35.4 cm | | Weight | 35 lb / 15.9 kg |
