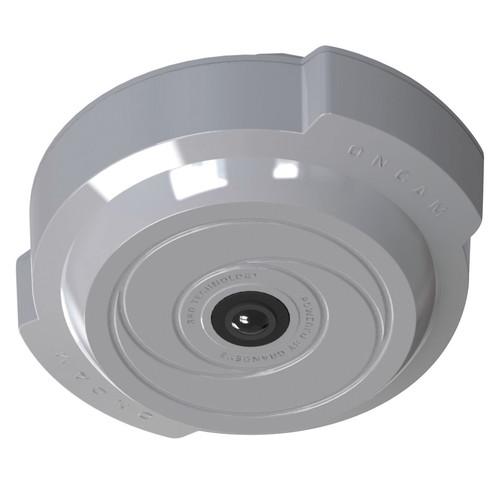

Product description The white Evolution 360 5MP Fisheye Camera from Pelco features a 5MP 1/2.5" CMOS sensor to capture 2592 x 1944 resolution video at up to 10 fps. Its 1.6mm fisheye lens provides a 360° field of view for a wide range of coverage. It has the ability to generate a number of video streams at a choice of resolutions using H.264 or MJPEG codecs, as well as configurable privacy zones and video motion detection within defined areas. This camera fully supports IEEE802.3af Class 2 PoE for installation convenience. This camera is IP54-rated, but intended for indoor use. - 360° Indoor IP Camera with a 5MP Sensor and No Moving Parts
- • 360° surveillance
• No moving parts and silent operation
• Up to 10 fps at 4MP and up to 15 fps at 0.25, 1, and 2MP
• 0.2 lux minimum illumination with enhanced WDR
• PoE or 12VDC powered - Advanced Event Management
- • Configurable actions based on motion or hardware triggers
• Configurable privacy regions
• Motion detection within defined areas
• Local alarm digital input and output
• Audio microphone input - Wall or Ceiling Mounting
- • Quick and easy installation
• Lightweight indoor enclosure
• Convenient surface-mounting enclosure
• Suitable for ceiling, wall, pole or pendant mounted applications - VMS Platforms and Retrospective Dewarping
- • Oncam 3D dewarping software
• Camera features are accessible via VMS platforms
• Optimises bandwidth and storage utilization
• Simultaneous multiple video streams with resolutions from 528 x 480 to 2144 x 1944
• H.264/MJPEG streaming with multiple quality levels
• Configurable password protection
• Intuitive web-based interface for viewing and configuration
• Integrated with Digital Sentry version 7.5 and other leading VMS platforms UPC: 700880329900 In the Box Pelco Evolution 360 5MP Fisheye Camera (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Evolution 360 5MP Fisheye Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco EVO05NID Specs | | | Video Streams | Streams 1 & 2:
Codec: H.264 high, level 5 / MJPEG (both streams configurable)
Compression Level: Multi-levels of compression adjustment
Pixel Resolution: Fisheye at 0.25 MP (528 x 480), 1 MP (1056 x 960), 2 MP (1488 x 1360), 4 MP (2144 x 1944)
Stream 3:
Codec: MJPEG
Compression Level: Multi-levels of compression and frame rate adjustment (maximum 15 fps)
Pixel Resolution: Fisheye at 0.25 MP (528 x 480) | | Image Controls | Settings: Brightness / contrast / saturation / exposure compensation, compression quality, wall/ceiling/table mount | | Image Enhancement | Electronic WDR 60 dB | | VMS Software | Integrated with Digital Sentry version 7.5 and other VMS platforms | | Web Browser | Internet Explorer IE9 (with ActiveX plug-in, supplied), Firefox 23, Chrome 29 using QuickTime version 7 and above | | Number of Users | Unicast: Up to 20 simultaneous users depending on the resolutions settings | | Bit Rate | Selectable options, constant bit rate control, capped bit rate control, constant quality control | | | | Image Sensor | 5 MP 1/2.5" CMOS sensor | | Field of View | 360° | | Angle of View | 180° hemisphere | | Lens | 185°, 1.6mm, f/2.0 | | Minimum Illumination | 0.2 lux; 50 IRE, f/2.0 (6500 K) | | Frame Rate | 10 fps typical at maximum resolution and up to 15 fps for all other resolutions | | Video Motion Detection | 12 regions of interest; VMD; configurable response; adjustable characteristics | | Storage | H.264:
@4 MP (2144 x 1944); 10 fps; constant bit rate (5 Mb/s): 54 GB
@2 MP (1488 x 1360); 15 fps; constant bit rate (3 Mb/s): 40 GB
@1 MP (1056 x 960); 15 fps; constant bit rate (1.5 Mb/s): 16 GB
@0.25 MP (528 x 480); 15 fps; constant bit rate (0.8 Mb/s): 8 GB
MJPEG:
@4 MP (2144 x 1944); 10 fps; average file size: 640 kB, average bit rate: 52.4 Mb/s: 552.96 GB
@2 MP (1488 x 1360); 15 fps; average file size: 350 kB, average bit rate: 43.0 Mb/s: 453.60 GB
@1 MP (1056 x 960); 15 fps; average file size: 188 kB, average bit rate: 23.1 Mb/s: 243.65 GB
@0.25 MP (528 x 480); 15 fps; average file size: 62 kB, average bit rate: 7.6 Mb/s: 80.35 GB All recordings are assumed to be 24 hours long and are based on the same scene, with constant average light conditions | | External | 1 x contact input
1 x contact output | | Security | Configurable password protection | | Advanced Event Management | Triggered by motion, external input or HTTP event, result configurable; external output, FTP/SMTP upload, (local recording, future feature via firmware update) | | Networking | TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP, RSTP, uPNP | | Privacy | 10 configurable privacy regions | | SD Card | Built-in SD card slot | | Audio Connections | Audio In: microphone input via 3.5 mm jack via RTSP using G711 codec (µ law, 8 k sample rate), via ONVIF Profile S | | Analog Video Out | BNC connection for test only | | Signal-to-Noise Ratio | 45 dB | | Auto White Balance Range | Auto white balance (2500 to 8000 K) | | Supports | Oncam Grandeye SDK integration pack, Evolution 5MP Camera Range, Evolution accessories, IP Configuration tool, 360° viewer, OnVu360 Mobile Apps (iOS, Android) | | | | Processor & Memory | Computer with 1 GHZ 32-bit (x86) or 64-bit (x64) processor and with minimum of 512 MB memory | | Operating System | Windows Vista 32-bit with service pack 2 (SP2) of higher / 64-bit with service pack (SP2) of higher | | Hard Drive Space | Windows Vista 32-Bit: Minimum 70 MB
Windows Vista 64-Bit: Minimum 120 MB | | Display | Super VGA (800 x 600) of higher-resolution monitor with 256 colors | | Peripherals Supported | 100 MB or greater network connection, mouse or compatible pointing device, keyboard | | | | Ports | RJ45 100Base-TX, 2.1 mm DC Input jack, 6-pin 1.5 mm Phoenix for external I/O, BNC for test video output | | Network Cable Type | CAT5 or better for 100Base-TX | | Power Input | 12 V, 1 A (minimum) "LPS or NEC Class 2" power supply or Power over Ethernet (PoE), IEEE standard 802.3af | | Power Consumption | 4.5 W (PoE)
3.2 W (12 VDC) | | | | Approvals | IEEE802.3af Class 2; EMC: (CISPR Class A) FCC; CE; ICES-003; KCC; SASO; GOST; S-MARK; C-TICK; UL and cUL-UL60950 | | Ingress protection | IP54-rated | | Camera Mount | Surface mount (or with a range of mounting accessories for mounting to a pole, wall, pendant) | | Enclosure | Metal back plate with polycarbonate dome bubble and cover trim enclosure | | Operating Temperature Range | -40 to 131°F (-40 to 55°C) | | Storage Temperature Range | -40 to 158°F (-40 to 70°C) | | Operating Humidity | Up to 98% (in accordance with BS EN 60068-2-30) | | Dimensions | 7 x 6.2 x 2" (17.9 x 15.7 x 5.2 cm) | | Weight | 1.08 lb (580 g) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 12.4 x 10.0 x 4.9" |
