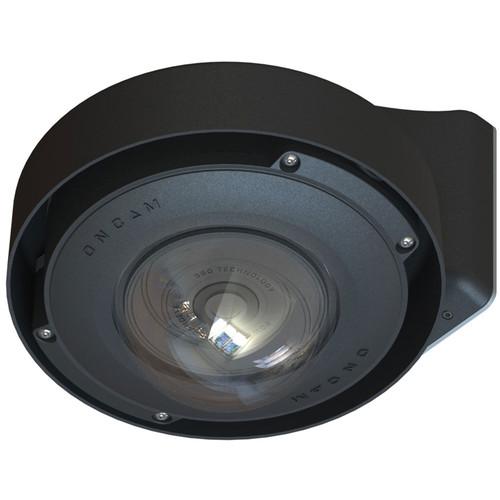

User Manual for Pelco Evolution EVO-05NND 5MP Outdoor Vandal-Resistant Dome IP Camera with Fisheye Lens Click to enlarge the picture
Contents of the user manual for the Pelco Evolution EVO-05NND 5MP Outdoor Vandal-Resistant
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Evolution EVO-05NND 5MP Outdoor Vandal-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The black Evolution EVO-05NND 5MP Outdoor Vandal-Resistant Dome IP Camera from Pelco features a 5MP sensor, fisheye lens, and no moving parts. The unit is designed for quick and easy installations outdoors where a rugged enclosure that can withstand harsh environmental conditions is required. The outdoor camera is vandal resistant and fully supports IEEE 802.3af Class 2 Power over Ethernet for installation convenience.The camera generates a number of video streams based on the choice of resolution (1/4, 1, 2, and 4MP), and offers configuration of privacy zones and video motion detection within defined areas of interest. The 360° field of view provides situational awareness.This dome IP camera can be ceiling, wall, or table mounted. A range of mounting accessories allows for easy ceiling, wall, pole, and pendant mounting options. Note: Mounting accessories are sold separately. Vandal-Resistant 360° IP Camera with a 5MP Sensor and No Moving Parts - Constant 360° surveillance; no blind spots
- Silent operation with no mechanical parts
- No moving parts means no regular maintenance due to wear and tear
- Quick and easy installation
- ONVIF Profile S conformant
Suitable When IP66 Standard Ingress Protection is Required - Fully supports IEEE802.3af Class 2 Power over Ethernet (PoE)
- Uses PoE or 12VDC power source
- Professional, rugged, and vandal-resistant (IP66 rated) enclosure to withstand harsh and humid environments
- Minimum illumination 0.2 lux, providing clarity in low-light environments
- Convenient surface-mounting enclosure
- Suitable for ceiling, wall, or table mounted applications
- A range of mounting accessories allows for ceiling, wall, pole, and pendant mounting
Onboard SD Card Slot and Advanced Event Management - Onboard SD card slot (card not included) for local recording and advanced event management
- Configurable privacy regions
- Video motion detection within defined areas of interest
- Local alarm digital input and output
Fully Integrated with Multiple VMS Platforms to Provide Live and Retrospective Dewarping - Compatible with Oncam Grandeye 3D dewarping software
- Optimizes bandwidth and storage utilization
- Simultaneous multiple video streams
- Video streams in multiple resolutions from 528 x 480 to 2144 x 1944
- 10 fps typical for full resolution and up to 15 fps for all other resolutions
- H.264/MJPEG streaming with multiple quality levels
- Configurable password protection
- Intuitive Web-based interface for viewing and configuration
- Integrated with Digital Sentry version 7.5 and other leading VMS platforms
UPC: 700880329931 In the Box Pelco Evolution EVO-05NND 5MP Outdoor Vandal-Resistant Dome IP Camera with Fisheye Lens (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Evolution EVO-05NND 5MP Outdoor Vandal-Resistant Dome IP Camera with Fisheye Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Evolution 360 Specs | | | Image Sensor | 1/2.5" CMOS | | Sensor Resolution | 5 MP
Active Array: 2592(H) x 1944(V) = 5,038,848 pixels | | Processor | TMS320DM368 DaVinci | | Angle of View | 180° hemisphere | | Field of View | 360° | | Lens | 185°, 1.6 mm / F2.0, 5 MP-rated fisheye lens | | Lens Mount | M12x0.5 thread | | Minimum Illumination | 0.2 lux = 50 IRE F/2.0 (6,500 K) | | Auto White Balance Range | 2,500 to 8,000 K | | Signal to Noise Ratio | 45 dB | | | | Input | Microphone input via 3.5 mm jack; via RTSP using G711 codec (μLaw - 8K sample rate); via ONVIF S | | | | Supported Resolutions | 1/4 MP (528 x 480)
1 MP (1056 x 960)
2 MP (1488 x 1360)
4 MP (2144 x 1944) | | Supported Frame Rates | 10 fps typical at maximum resolution and up to 15 fps for all other resolutions | | Storage Requirements | H.264:
1/4 MP (528 x 480), 15 fps @ 0.8 Mb/s constant bit rate, 24 hours = 8 GB
1 MP (1056 x 1056), 15 fps @ 1.5 Mb/s constant bit rate, 24 hours = 16 GB
2 MP (1488 x 1360), 15 fps @ 3 Mb/s constant bit rate, 24 hours = 40 GB
4 MP (2144 x 1944), 10 fps @ 5 Mb/s constant bit rate, 24 hours = 54 GB
MJPEG:
1/4 MP (528 x 480), 15 fps, 62 kB average file size @ 7.6 Mb/s average bit rate, 24 hours = 80.35 GB
1 MP (1056 x 1056), 15 fps, 188 kB average file size @ 23.1 Mb/s average bit rate, 24 hours = 243.65 GB
2 MP (1488 x 1360), 15 fps, 350 kB average file size @ 43.0 Mb/s average bit rate, 24 hours = 453.60 GB
4 MP (2144 x 1944), 10 fps, 640 kB average file size @ 52.4 Mb/s average bit rate, 24 hours = 552.96 GB 4 MP is factory / default setting; GB values are based on the same scene with constant average light conditions. | | Transmission Speed | 15 fps, all resolutions, using MJPEG and H.264
10 fps (4 MP) MJPEG and H.264
Streaming at user-defined frame rate | | Video Compression Format | MJPEG: 85 different compression levels for all fisheye image resolutions
H.264: 100 different compression levels for all fisheye image resolutions | | Image Controls | Automatic exposure control
Automatic white balance
50 Hz and 60Hz mains frequency flicker control
Sharpness control setting
EV compensation control setting
Wide dynamic range setting (>90 dB) Compression quality
Wall/ceiling/table mount
Pictures down to 0.2 lux at 50 IRE / F2.0 (6,500 K) | | Compression levels | Video Stream 1 & 2:Multiple levels of compression adjustment
Video Stream 3: Multiple levels of compression and frame rate adjustment (maximum 15 fps) | | Pixel Resolution | Video Stream 1 & 2: Fisheye at: 1/4 MP (528 x 480), 1 MP (1056 x 960), 2 MP (1488 x 1360), 4 MP (2144 x 1944)
Video Stream 3: Fisheye at 0.25 MP (528 x 480) | | Codec | Video Stream 1 & 2: H.264 High, Level 5 / MJPEG (both streams configurable)
Video Stream 3: MJPEG | | Bitrate Control | Constant bit rate control, capped bit rate control, constant quality control (selectable options) | | Video Motion Detection | 12 regions of interest; configurable response; adjustable characteristics | | Analog Video Output | BNC connection (selectable between PAL or NTSC, used for test only) | | Privacy Masking | 10 configurable regions | | | | VMS Software | Integrated with Digital Sentry version 7.5 and other leading VMS platforms | | | | Port | RJ45 for 100Base-TX | | Network Cable Type | CAT5 or better for 100Base-TX | | Supported Protocols | TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP, RSTP, IPv4 | | User support | Up to 20 simultaneous Unicast users depending on the resolutions settings | | Security | Configurable password protection | | | | Input / Output | 6-way (4 for alarm and 2 for RS-485), 3.5 mm pitch, Phoenix Contact socket with screw down terminals | | | | Processor | 1GHz 32-bit (x86) or 64-bit (x64) processor | | RAM | 512 MB | | Disk Space | 70 MB (Windows Vista 32-bit), 120 MB (Windows Vista 64-bit) | | Display | Super VGA (800 x 600) with 256 colors | | Operating System | Windows Vista Service Pack 2 (32/64-bit) | | Web Browser | Compatible with Internet Explorer 9 (with ActiveX plug-in, included), Firefox 23, Chrome 29 (using Quicktime, minimum version 7) | | Other | 100 Mb/s network connection, mouse or compatible pointing device, keyboard | | | | Power Terminal | 2.1 mm DC input jack at the rear | | Power Input | 12 VDC, 1.0 A minimum LPS or NEC Class 2 power supply or Power over Ethernet (PoE), IEEE standard 802.3af Class 2 standard | | Power Consumption | 8 W maximum | | | | Operating Temperature Range | -40 to 131°F (-40 to 55°C) | | Storage Temperature Range | -40 to 158°F (-40 to 70°C) | | Operating Humidity | Up to 98% (in accordance with BS EN 60068-2-30) | | | | Approvals and Compliance | EMC to CISPR Class A, FCC, CE, ICES-003
Safety: UL60950
ONVIF Profile S Conformant | | Ingress protection | IP66 standard | | Vandal Resistant | IK10 standard | | Shock and Vibration | In accordance with BS EN 60068-2-64 and BS EN 60068-2-27 | | | | External I/O Terminals | 1 x contact input
1 x contact output | | Advanced Event Management | Triggered by motion, external input or HTTP event, result configurable external output, FTP/SMTP upload Local recording, future firmware upgrades via SD card (sold separately) | | SD Card Slot | Built-in | | Mount Type | Surface mount Can be mounted to a pole / wall / pedant using a range of separately sold mounting accessories. | | Construction | Die-cast aluminum alloy housing
Bubble and trim ring made of polycarbonate polymers with UV inhibiters | | Cable Entry | Side and rear, sealed IP66 rated | | Dimensions (LxWxH) | 6.97 x 6.22 x 3.86" (177.00 x 158.00 x 98.00 mm) | | Weight | 2.03 lb (0.92 kg) | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 12.5 x 10.0 x 4.8" |
