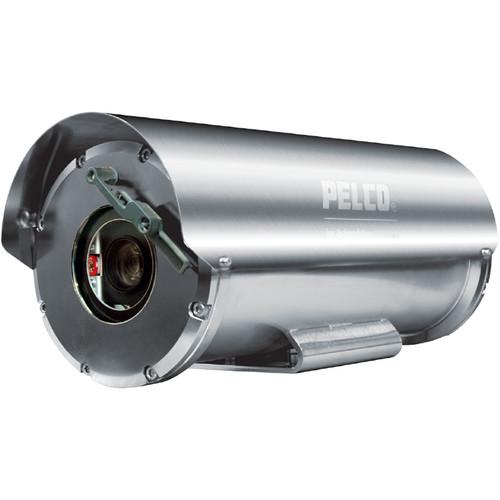

User Manual for Pelco ExSite Enhanced EXF1230-4N 2.1MP Explosionproof Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Pelco ExSite Enhanced EXF1230-4N 2.1MP Explosionproof
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco ExSite Enhanced EXF1230-4N 2.1MP Explosionproof contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The ExSite Enhanced EXF1230-4N 2.1MP Explosionproof Network Bullet Camera from Pelco can record 1920 x 1080 video at up to 60 fps. A 4.3-129mm lens provides 30x optical zoom. It features a microSD card slot for up to 2TB of local storage. This camera is designed for use in rugged environments including oil and LNG facilities, refineries, on and offshore drilling rigs, and onboard marine applications. It has dual-entry ports, allowing for separate transmission and power cable, and is adaptable to most transmission methods via SFP/FSFP modules. A 48 VDC power connector enables installation in DC-only facilities. This camera comes with a wiper and a sun shroud so it can capture video regardless of the weather. - Rugged 316L stainless steel construction for extreme conditions of temperature, moisture, ice, and dust
- System can operate from -76 to 140°F while maintaining compliance to the T6 surface temperature specifications
- Dual stream H.264 IP video with smart compression
- SureVision 3.0 technology
- 130 db wide dynamic range and low-light imaging performance down to 0.03 lux
- Image defog capability increases video quality in poor visibility conditions
- Anti-bloom, 3D noise filtering, and enhanced tone mapping
- Standard IP Ethernet connection and integrated transmission options including fiber, Ethernet-over-coax, and UTP extension
- Electronic image stabilization
- Efficient installation with a safety attachment point and simple wire termination methods
- Sun shroud and heater/window defroster
- Configurable onscreen displays
- Autofocus with manual override
- Dual cable entries for multiple data and power configurations
- Compatible with third-party explosionproof wash systems
- Remote hard-reset capability allows for maintenance without physical access to the camera
UPC: 700880339640 In the Box Pelco ExSite Enhanced EXF1230-4N 2.1MP Explosionproof Network Bullet Camera (48 VDC) Mounting Hardware Power Connector 20-Pin Alarm/Relay Connector 2 x Ground Ring Terminals Ferrite for Power Cable 2 x Ferrites for Alarms/Relays and Ethernet Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco ExSite Enhanced EXF1230-4N 2.1MP Explosionproof Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco ExSite Enhanced Fixed Specs | | | Sensor | 2.1 MP 1/2.8" CMOS | | Focal Length | 4.3 to 129mm | | Maximum Aperture | f/1.6 - f/4.7 | | Zoom | Optical: 30x
Digital: 12x | | Lens Field of View | Horizontal: 63.7 to 2.3° | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/10,000 to 1 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 180° | | | | Streaming Resolution | 1920 x 1080 | | Supported Video Compression | H.264 | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, Password Protection | | Supported Protocols | DHCP, DNS, FTP, HTTP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile Q, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco, ONVIF | | Analytics | Abandoned Object, Adaptive Motion Detection, Camera Sabotage, Directional Motion, Loitering Detection, Object Counting, Object Removal, Stopped Vehicle | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 2000 GB) | | Pan/Tilt | None | | Alarm I/O | 4 / 2 | | I/O Connections | 1 x RJ45
2 x SFP
1 x Power | | IR Illuminators | None | | Certifications | ATEX, FCC (Part 15 Class A), ICES-003 Class A, IEC60068-2-6, IECEx, KC, RCM, UL, cUL, as per Manufacturer | | Internal Storage | None | | Power Source | DC | | Power Consumption | DC: 74 W
DC: 62 W (With Heater) | | Material of Construction | Stainless Steel | | Operating Temperature | -76 to 140°F / -60 to 60°C | | Storage Temperature | -76 to 140°F / -60 to 60°C | | Operating Humidity | 10 to 100% | | IP Rating | IP68 | | Dimensions | H: 7.7 x W: 7.5 x L: 18.3" / H: 19.6 x W: 19.1 x L: 46.5 cm | | Weight | 38 lb / 17.2 kg |
