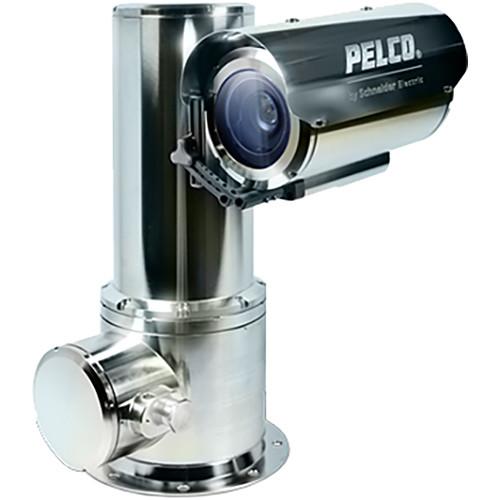

User Manual for Pelco ExSite Enhanced EXP1230-4N 2.1MP PTZ Explosionproof Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Pelco ExSite Enhanced EXP1230-4N 2.1MP PTZ
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco ExSite Enhanced EXP1230-4N 2.1MP PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The ExSite Enhanced EXP1230-4N 2.1MP PTZ Explosionproof Network Bullet Camera from Pelco can record 1920 x 1080 video at up to 60 fps. A 4.3-129mm lens provides 30x optical zoom. It features a microSD card slot for up to 2TB of local storage. This camera is designed for use in dangerous environments including oil and LNG facilities, refineries, on and offshore drilling rigs, and onboard marine applications. It has dual-entry ports, allowing for separate transmission and power cable, and is adaptable to most transmission methods via SFP/FSFP modules. A 48 VDC power connector enables installation in DC-only facilities. This camera comes with a wiper and a sun shroud so it can capture video regardless of the weather. - Rugged 316L stainless steel construction for extreme conditions of temperature, moisture, ice, and dust
- System can operate from -76 to 140°F while maintaining compliance to the T6 surface temperature specifications
- Dual stream H.264 IP video with smart compression
- SureVision 3.0 technology
- 130 dB wide dynamic range and low-light imaging performance down to 0.03 lux
- Image defog capability increases video quality in poor visibility conditions
- Antibloom, 3D noise filtering, and enhanced tone mapping
- Upright or inverted installation with automatic orientation detection
- Low latency electronics for improved pan/tilt drivability and safety
- Standard IP Ethernet connection and integrated transmission options including fiber, Ethernet-over-coax, and UTP extension
- Electronic image stabilization
- Efficient installation with a safety attachment point and simple wire termination methods
- Sun shroud and heater/window defroster
- Configurable onscreen displays
- Autofocus with manual override
- Auto iris with manual override
- Dual cable entries for multiple data and power configurations
- Compatible with third-party explosionproof wash systems
- Direct drive motor control automatically accommodates for high vibration and windy environments to ensure continuous precision control
- Keeps position and executes PTZ commands even in high wind conditions such as hurricanes or tropical storms
- Alarms can be individually configured for three priority levels, to initiate a stored tour, or to go to an associated preset when received
- Continually decreases pan and tilt speeds in proportion to depth of zoom
- Auto Flip supports operation when mounted in an inverted position
- Remote hard-reset capability allows for maintenance without physical access to the camera
UPC: 700880339626 In the Box Pelco ExSite Enhanced EXP1230-4N 2.1MP PTZ Explosionproof Network Bullet Camera (48 VDC) Mounting Hardware Custom Spanner Wrench Power Connector 20-Pin Alarm/Relay Connector Ground Ring Terminal Ferrite for Power Cable 2 x Ferrites for Alarms/Relays and Ethernet Cables 12-28 AWG Splicing Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco ExSite Enhanced EXP1230-4N 2.1MP PTZ Explosionproof Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco ExSite Enhanced PTZ Specs | | | Sensor | 2.1 MP 1/2.8" CMOS | | Focal Length | 4.3 to 129mm | | Maximum Aperture | f/1.6 - f/4.7 | | Zoom | Optical: 30x
Digital: 12x | | Lens Field of View | Horizontal: 63.7 to 2.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/10,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps (8 Mb/s ) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, Password Protection | | Supported Protocols | DHCP, DNS, FTP, HTTP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile Q, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | FSFP, Third-Party MSA-Compliant, ONVIF | | Analytics | Abandoned Object, Adaptive Motion Detection, Camera Sabotage, Directional Motion, Loitering Detection, Object Counting, Object Removal, Stopped Vehicle | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Recording Media | microSD (Up to 2000 GB) | | Pan/Tilt | Programmed Pan: 360° at 200°/s
Programmed Tilt: 180° (-90 to 90°) at 200°/s | | Alarm I/O | 4 / 2 | | I/O Connections | 1 x RJ45
2 x SFP
1 x Power | | IR Illuminators | None | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | DC | | Power Consumption | DC: 166 W | | Material of Construction | Stainless Steel | | Operating Temperature | -76 to 140°F / -60 to 60°C | | Storage Temperature | -76 to 140°F / -60 to 60°C | | Operating Humidity | 10 to 100% | | Dimensions | H: 18.9 x W: 10.5" / H: 48.0 x W: 26.7 cm | | Weight | 66.8 lb / 30.3 kg |
