User Manual for Pelco FD2-IRV IR Illumination Indoor Fixed Dome Camera Click to enlarge the picture
Contents of the user manual for the Pelco FD2-IRV IR Illumination Indoor Fixed
- Product category: Wired Analog & HD Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired Analog & HD Cameras
|
User manual for the Pelco FD2-IRV IR Illumination Indoor Fixed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|

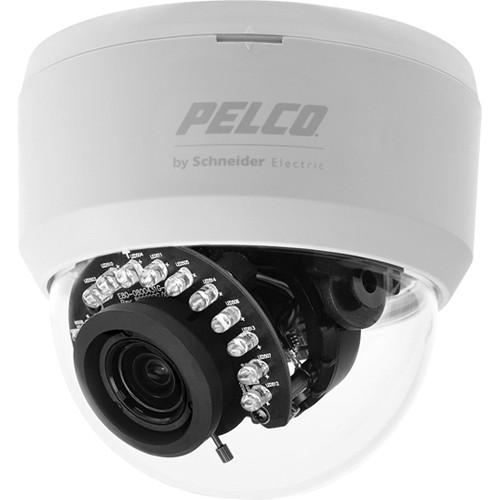

Product description The Pelco FD2-IRV IR Illumination Indoor Fixed Dome Camera (NTSC) is designed to provide good picture quality over a wide range of conditions with a high resolution of 650 TVL color camera and 2.8 to 10.5mm varifocal lens. The camera’s size, combined with its features, makes it a suitable camera for indoor applications. This dome camera integrates a camera and lens package into a small, versatile indoor enclosure that can be mounted directly to a ceiling or wall. It features a 3-axis camera and lens positioning system that is capable of a wide variety of pan and tilting angles.The FD2-IRV Camera features a high resolution (650 TVL) color camera with varifocal lens. This camera is equipped with high performance IR compensation. It can be set manually to adjust IR illumination levels, enabling you to change the levels of luminance and contrast according to the shooting environment. This function reduces the blooming effect and delivers clear images when objects get closer to the camera. The IR camera option uses a group of IR LEDs for supplemental lighting. This allows the camera to function under 0 lux illumination when the IR is on, creating an effective IR illumination distance up to 82.02’ (25.00m). Application examples include outdoor environments with difficult lighting conditions that need a supplemental IR light source.The camera has built-in analytical capabilities such as privacy zones, motion detection, and camera titles that adds to its functionality and makes it suitable for many applications. It comes completely assembled, making installation fast and easy. - 0.1 lux sensitivity (no IR), zero lux (with IR)
- Sony 1/3" EXview HAD CCD II
- Infrared (IR) illumination day / night high resolution
- Auto-sensing power (24VAC / 12VDC with internal synchronization)
- Certifications: CE, Class B, FCC, Class B, UL/cUL Listed
UPC: 700880295076 In the Box Pelco FD2-IRV IR Illumination Indoor Fixed Dome Camera (NTSC) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco FD2-IRV IR Illumination Indoor Fixed Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco FD2-IRV Specs | Image Sensor | Sony 1/3" EXview HAD CCD II | | Signal Processing | Sony DSP, Effio-E | | Effective Pixels (H x V) | 976 x 494 | | Scanning Area | H x V: 0.22 x 0.18" (5.58 x 4.67 mm) | | Scanning System | 525 lines, 2:1 interlace | | Scanning Frequency | Horizontal: 15.734 kHz
Vertical: 59.94 Hz | | Synchronization | Internal | | Horizontal Resolution | 650 TVL | | Minimum Illumination | f/1.2; 2,850°K; 30 IRE
Color: 0.1 lux
Mono: 0.0 lux (with IR) | | IR Cut Filter | Day/Night switch | | Illumination Distance | IR: 82.02' (25.00 m) | | IR Sensitivity Range | >40% at 850 nm, peak response | | Technology | Low Light: ICR and LEDs | | Shutter | 1/60 to 1/10,000 sec | | Video Output | 1 Vpp, NTSC composite, 75 Ω, BNC connector | | White Balance | ATW / Manual / Push / Push Lock / User1 / User4 / Anti CR | | Signal-to-Noise Ratio | 48 dB (>52 dB by parameter adjustment) | | Lens | Varifocal | | F-Number (f) | f/1.2 | | Focal Length | 2.8 to 10.5 mm | | Focus Range | Infinity to 1.00' (3.08 m) | | Angle of View | Horizontal: 101.8° at 2.8 mm wide zoom
27.4° at 10.5 mm telephoto zoom
Vertical: 73.7° at 2.8 mm wide zoom
20.6° at 10.5 mm telephoto zoom | | Adjusting Angle | Panning Range: ±180°
Tilting Range: 90 to 0°
Rotation Range: ±180° | | Noise Reduction | 2D | | Motion Detection | 4 areas | | Privacy Zone | 8 zones | | Alarm Out | 1 | | Power Requirement | 12 VDC/24 VAC 10 to -15%, 60 Hz | | Power Consumption | 4 W | | Connector | Power: 2-pin terminal block with screw terminals
Video: BNC | | Alarm Output | 2-pin terminal block with screw terminals | | Temperature | Operating: -14 to 122°F (-10 to 50°C)
Storage: -40 to 140°F (-20 to 60°C) | | Humidity | Operating: 20 to 80%, non-condensing
Storage: 20 to 90%, non-condensing | | Construction | Back Box: ABS plastic | | Type | Bubble: Lightly obscured | | Dimensions (H x W) | 4.30 x 5.32" (10.92 x 13.51 mm) | | Weight | 0.66 lb (0.30 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 6.6 x 6.6 x 6.4" |
