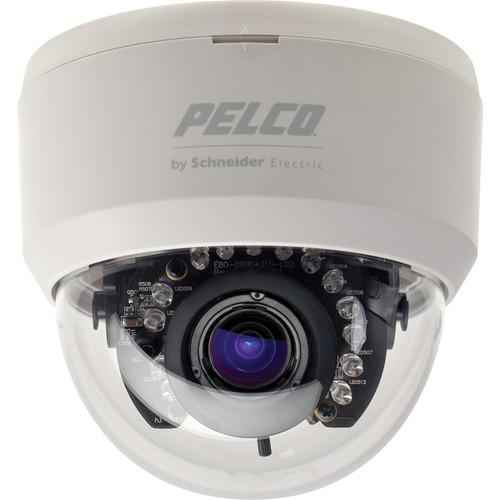

User Manual for Pelco FD2-V 650 TVL Dome Camera with 2.8-10.5mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Pelco FD2-V 650 TVL Dome Camera
- Product category: Wired Analog & HD Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired Analog & HD Cameras
|
User manual for the Pelco FD2-V 650 TVL Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco FD2-V 650 TVL Dome Camera offers a 650 TVL resolution and is suitable for indoor applications. Featuring a 2.8-10.5mm varifocal lens, the camera features wide and telephoto zoom capabilities.
With an auto iris lens and electronic day/night functions the camera is designed to provide clear and crisp images at all times in a variety of light environments. The camera has built-in analytical capabilities, such as privacy zones, motion detection, and camera titles, which all add to its functionality and makes it suitable for many applications.
The camera can be wall- and ceiling-mounted. It features a 3-axis gimbal that allows you to manually point the lens anywhere you want during setup. - Auto-sensing power (24VAC / 12VDC with internal synchronization)
- Certifications: CE, Class B, FCC, Class B, UL/cUL Listed
UPC: 700880295052 In the Box Pelco FD2-V 650 TVL Dome Camera with 2.8-10.5mm Varifocal Lens Limited 3-Year Warranty Brochure PDF 428.4kbtasravstvudvrsutswxyrt Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco FD2-V 650 TVL Dome Camera with 2.8-10.5mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco FD2-V Specs | Image Sensor | Sony 1/3" EXview HAD CCD II | | Signal Processing | Sony DSP, Effio-E | | Effective Pixels (H x V) | 976 x 494 | | Scanning Area (H x V) | 0.22 x 0.18" (5.58 x 4.67 mm) | | Scanning System | 525 lines, 2:1 interlace | | Scanning Frequency | Horizontal: 15.734 kHz
Vertical: 59.94 Hz | | Synchronization | Internal | | Horizontal Resolution | 650 TVL | | Minimum Illumination | f/1.2; 2850K; 30 IRE
Color: 0.1 lux
Mono: 0.1 lux | | Technology | Low Light: ICR and LEDs | | Shutter | 1/60 to 1/10,000 sec | | Video Output | 1 V p-p, NTSC composite, 75 Ohms, BNC connector | | White Balance | ATW / Manual / Push / Push Lock / User1 / User4 / Anti CR | | Signal-to-Noise Ratio | 48 dB (>52 dB by parameter adjustment) | | Lens | Varifocal | | F-Number (f) | f/1.2 | | Focal Length | 2.8 to 10.5mm | | Focus Range | Infinity to 1.00' (3.08 m) | | Angle of View | Horizontal: 101.8° at 2.8 mm wide zoom
27.4° at 10.5 mm telephoto zoom
Vertical: 73.7° at 2.8 mm wide zoom
20.6° at 10.5 mm telephoto zoom | | Adjusting Angle | Panning Range: ±180°
Tilting Range: 90 to 0°
Rotation Range: ±180°
*Adjustment is manual and done during setup. | | Noise Reduction | 2D | | Motion Detection | 4 areas | | Privacy Zone | 8 zones | | Alarm Out | 1 | | Power Requirement | 12 VDC / 24 VAC 10 to -15%, 60 Hz | | Power Consumption | 2.5 W | | Connector | Power: 2-pin terminal block with screw terminals
Video: BNC | | Temperature | Operating: -14 to 122°F (-10 to 50°C)
Storage: -40 to 140°F (-20 to 60°C) | | Humidity | Operating: 20 to 80%, non-condensing
Storage: 20 to 90%, non-condensing | | Construction | Back Box: ABS plastic | | Type | Bubble: Lightly obscured | | Dimensions (H x W) | 4.30 x 5.32" (10.92 x 13.51 mm) | | Weight | 0.68 lb (0.31 kg) | | | | Package Weight | 1.295 lb | | Box Dimensions (LxWxH) | 6.6 x 6.5 x 6.4" |
