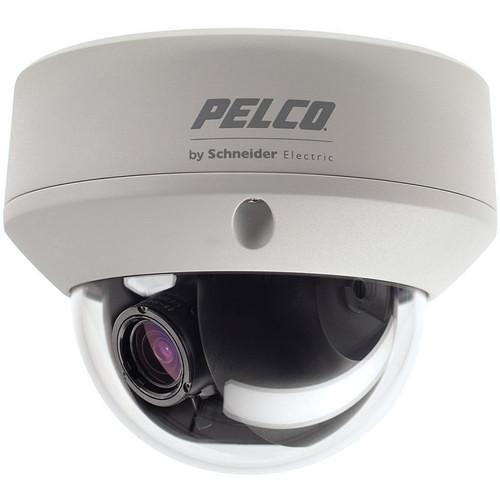

Product description The FD5 Environmental FD5-DWV22-6 Outdoor True Day/Night Fixed Dome Camera with 9 to 22mm Lens from Pelco features a 1/3" EXview HAD CCD II 960H Sensor that captures excellent images up to a resolution of 650 TVL. The WDR option expands the video dynamic range of the camera and improves the visibility of images even in high contrast environments. The camera can also switch automatically from color to mono mode in a low-light environment by removing the IR cut filter, and digital slow shutter (DSS) allows for low-light capability.This camera is suitable for general outdoor applications in most fixed lighting conditions. Its full features ensure that images are clear and crisp at all times under consistent light. It features ATR technology, which can provide dynamic range by selecting different gamma levels. In addition, built-in analytical capabilities such as privacy zones, motion detection, and camera titles add to its functionality and make it suitable for most applications.The rugged, outdoor design with IK10 impact protection standard provides vandal resistance. In addition, the IP66-rated weatherproof housing ensures good outdoor performance even in harsh weather conditions. This dome camera operates under a wide temperature range (–22 to 122°F), which makes it an ideal solution for most rugged outdoor applications like boundary surveillance.This dome camera integrates a camera and lens package into a small, versatile outdoor enclosure that can be mounted directly to a ceiling or wall. With a 3-axis camera and lens positioning system, the outdoor camera is capable of a wide variety of pan and tilt angles. - 1/3" EXview HAD CCD II sensor captures excellent images up to a resolution of 650 TVL
- Digital Signal Processing (DSP)
- Built-in low-light technology for capturing clear images in low light conditions
- True Day/Night functionality
- Features a 9 to 22mm varifocal lens
- Captures color images at illumination as low as 0.008 lux and up to 0.002 lux in b&W
- Autosensing power from 18 to 32 VAC/12 VDC with internal synchronization (Revision A)
- Rugged, vandal-resistant design (IK10)
- IP66-rated weatherproof housing for good outdoor performance in harsh weather conditions
- Environmental capability with a wide operating temperature
- Ships assembled, easy to install
In the Box Pelco FD5 Environmental FD5-DWV22-6 Outdoor True Day/Night Fixed Dome Camera with 9 to 22mm Lens (NTSC) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco FD5 Environmental FD5-DWV22-6 Outdoor True Day Night Fixed Dome Camera with 9 to 22mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco FD5DWV226 Specs | Imaging Sensor | Sony 1/3" Super HAD CCD II 960H | | Signal Processing | Sony DSP, Effio-P | | Effective Pixels (H x V) | 976 x 494 | | Scanning Area (H x V) | 0.24 x 0.2" (6.00 x 5.0 mm) | | Scanning System | 525 lines, 2:1 interlace | | Scanning Frequency | Horizontal: 15.734 KHz
Vertical: 59.94 Hz | | Synchronization | Internal | | Horizontal Resolution | 650 TVL | | Minimum Illumination | f/1.5; 2850 K; 30 IRE
Color (17 ms): 0.15 lux
Color (500 ms): 0.008 lux
Mono (17 ms): 0.05 lux
Mono (500 ms): 0.002 lux | | IR Cut Filter | D/N switch | | Dynamic Range | 120 dB Dual-scan WDR | | Low Light Capability | ICR, DSS | | Shutter | Auto: 1/60 to 1/100,000 sec
Manual: 1/50 to 1/10,000 sec Slow shutter support is 2 to 256x | | Video Output | 1 Vpp, NTSC composite, 75 Ω, BNC connector | | White Balance | ATW/Push/Push Lock/User1/User2/Anti CR | | Signal to Noise Ratio | 48 dB (>52 dB by parameter adjustment) | | Lens | Varifocal | | F Number | f/1.5 | | Focal Length | 9 to 22 mm | | Focus Range | ∞ to 1.7' (∞ to 0.5 m) | | Angle of View | Horizontal: 31° at 9 mm wide zoom; 13° at 22 mm telephoto zoom
Vertical: 23° at 9 mm wide zoom; 10° at 22 mm telephoto zoom | | Adjusting Angle | Panning Range: ±180°
Tilting Range: 75 to 0°
Rotation Range: ±180° | | Noise Reduction | 3D | | Motion Detection | Included (4 areas) | | Privacy Zone | Included (15 sizeable windows) | | Camera Titles | Included | | Alarm Out | 1 | | | | Power Requirement | 18 to 32 VAC 60 Hz / 12 VDC 10 to -15% (Revision A) | | Power Consumption | 4 W (without heater)
16 W (with heater on) | | Power Connector | 2-pin terminal block with screw terminals | | Video Connector | BNC | | | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | 20 to 80%, noncondensing | | Storage Humidity | 20 to 90%, noncondensing | | Impact Resistance | IK10 | | Certifications | CE, Class B
FCC, Class B
UL/cUL Listed
Meets IP66 standards | | Back box | Die-cast aluminum | | Bubble | Lightly obscured | | Weight | 1.65 lb (0.75 kg) |
