User Manual for Pelco FD5 Series 650 TVL Day Night IR Fixed Dome Outdoor Camera with 2.8 to 10.5mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Pelco FD5 Series 650 TVL Day
- Product category: Wired Analog & HD Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired Analog & HD Cameras
|
User manual for the Pelco FD5 Series 650 TVL Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|

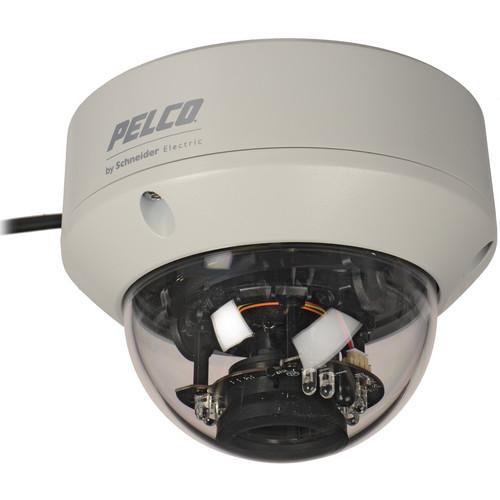

Product description The PelcoFD5 Series 650 TVL Day/Night IR Fixed Dome Outdoor Camera features a high-resolution (650 TVL) color Camera with auto iris and varifocal Lens. It is designed to provide good picture quality over a wide range of conditions. The Camera’s size, combined with its numerous features, makes it suitable for many outdoor applications.
This dome camera integrates a camera and lens package into a small, versatile outdoor enclosure that can be mounted directly onto a ceiling or a wall. It features a 3-axis camera- and lens-positioning system that is capable of a wide variety of pan and tilt angles.
This FD5-IRV IR camera is equipped with high-performance IR (Infrared) compensation. The Camera can be set manually to adjust IR illumination levels, enabling you to change the levels of luminance and contrast according to the shooting environment. This function reduces the blooming effect and delivers clear images when objects get closer to the camera. The IR camera option uses a group of IR LEDs for supplemental lighting. This allows the camera to function under 0 lux illumination when IR is on, creating an effective IR illumination distance up to 82.02’ (25m). This camera is suitable for use in outdoor environments with difficult lighting conditions that need a supplemental IR light source.
This camera also features ATR technology, which can provide dynamic range by selecting different gamma levels. It also has built-in analytical capabilities such as privacy zones, motion detection, and camera titles that add to its functionality and make it suitable for many applications.
The FD5-IRV IR Illumination Environmental Outdoor Fixed Dome Camera has a rugged, vandal-resistance design and an impact resistance that meets the IK10 standard. This camera has a wide operating temperature of -22 to 122°F (-30 to 50°C), which makes it suitable for most rugged outdoor applications. It also meets weathertight IP66 standards. It comes completely assembled, making installation fast and easy. - 0.1 lux and 0 lux (with IR On) sensitivity
- Sony 1/3" EXview HAD CCD II imager
- DSP (Digital Signal Processing)
- IR (Infrared) illumination day/night high resolution
- Auto-sensing power (24VAC/12VDC with internal synchronization)
- Rugged & vandal-resistant design (IK10)
- Environmental capability with a wide operating temperature
- Weathertight outdoor operation (IP66)
- Certifications: CE, Class B, FCC, Class B, UL/cUL listed, and meets IP66 standards
UPC: 700880282700 In the Box Pelco FD5 Series 650 TVL Day/Night IR Fixed Dome Outdoor Camera with 2.8 to 10.5mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco FD5 Series 650 TVL Day Night IR Fixed Dome Outdoor Camera with 2.8 to 10.5mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco FD5-IRV Specs | Image Sensor | Sony 1/3" EXview HAD CCD II 960H | | Signal Processing | Sony DSP, Effio-E | | Effective Pixels (H x V) | 976 x 494 | | Scanning Area (H x V) | 0.22 x 0.18" (5.58 x 4.67 mm) | | Scanning System | 525 lines, 2:1 interlace | | Scanning Frequency | Horizontal: 15.734 kHz
Vertical: 59.94 Hz | | Synchronization | Internal | | Horizontal Resolution | 650 TVL | | Minimum Illumination | f/1.2; 2,850°K; 30 IRE
Color: 0.1 lux
Mono: 0.0 lux | | IR Cut Filter | Day/Night switch | | Dynamic Range | Gamma selectable (ATR) | | IR Illumination | Distance: 82.02' (25.00 m) | | IR Sensitivity Range | >40% at 850 nm, peak response | | Technology | Low Light: ICR and LEDs | | Shutter | 1/50 to 1/10,000 sec | | Video Output | 1 Vpp, NTSC/PAL composite, 75 Ω, BNC connector | | White Balance | ATW/Manual/Push/Push Lock/User1/User4/Anti CR | | Signal-to-Noise Ratio | 48 dB (>52 dB by parameter adjustment) | | Lens | Varifocal | | F-Number (f) | f/1.2 | | Focal Length | 2.8 to 10.5 mm | | Focus Range | Infinity to 1.0' (0.3 m) | | Angle of View | Horizontal
101.8° at 2.8 mm wide zoom
27.4° at 10.5 mm telephoto zoom
Vertical
73.7° at 2.8 mm wide zoom
20.6° at 10.5 mm telephoto zoom | | Adjusting Angle | Panning Range: ±180°
Tilting Range: 55 to 0°
Rotation Range: ±180° | | Noise Reduction | 2D | | Motion Detection | 4 areas | | Privacy Zone | 8 zones | | Alarm Out | 1 | | Power Requirements | 12 VDC/24 VAC 10 to -15%, 60 Hz | | Power Consumption | 4 W (IR On, without heater)
47 W (IR On, with heater On) | | Connector | Power: 2-pin terminal block with screw terminals
Video: BNC | | Temperature | Operating: -22 to 122°F (-30 to 50°C)
Storage: -22 to 140°F (-30 to 60°C) | | Humidity | Operating: 20 to 80%, non-condensing
Storage: 20 to 90%, non-condensing | | Impact Resistance | IK10 | | Construction | Back Box: ABS plastic | | Type | Bubble: Lightly obscured | | Dimensions (H x W) | 4.30 x 5.32" (10.92 x 13.51 mm) | | Weight | 1.65 lb (0.75 kg) | | | | Package Weight | 2.395 lb | | Box Dimensions (LxWxH) | 6.65 x 6.55 x 6.4" |
