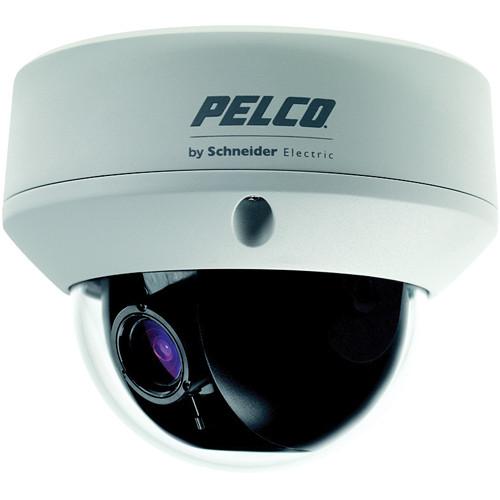

Product description The FD5 Series 650 TVL True Day/Night Fixed Dome Outdoor Camera from Pelco features a 1/3" EXview HAD CCD II 960H Sensor that captures excellent images up to a resolution of 650 TVL. The camera offers high quality pictures even in lighting conditions with a minimum illumination of 0.1 lux (color). Thanks to AWB (Automatic White Balance), the camera is able to handle difficult lighting conditions and the 2D digital noise reduction removes noisy signals to provide blur-free images. Using a removable IR (Infrared)-cut filter, the camera is able to switch between color and black & white modes as environmental lighting conditions change, and when the need for infrared sensitivity is realized. The rugged, outdoor design with IK10 impact protection standard provides vandal resistance. In addition, the IP66-rated weatherproof housing ensures good outdoor performance even in harsh weather conditions. This dome camera operates under a wide temperature range (–22 to 122°F), which makes it an ideal solution for most rugged outdoor applications like boundary surveillance. - 1/3" EXview HAD CCD II 960H Sensor captures excellent images up to a resolution of 650 TVL (NTSC)
- 2.8 to 10.5mm varifocal lens for clear image capture
- Automatic White Balance adjusts the red and blue signals by taking a standard white color reference to get the most natural colors
- 2D digital noise reduction removes any noisy signals providing blur-free images
- True day & night surveillance with integrated ICR (removable IR-cut filter)
- IK10 impact resistance standard suitable for vandal resistance
- IP66-rated weatherproof housing for good outdoor performance in harsh weather conditions
- Built-in analytical capabilities such as privacy zones, motion detection, and camera titles add to the functionality
- Autosensing power (24 VAC / 12 VDC with internal synchronization)
- Ideal for applications like outdoor boundary surveillance
UPC: 700880295106 In the Box Pelco FD5 Series 650 TVL True Day/Night Fixed Dome Outdoor Camera with 2.8 to 10.5mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco FD5 Series 650 TVL True Day Night Fixed Dome Outdoor Camera with 2.8 to 10.5mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco FD5DV106 Specs | Imaging Sensor | Sony 1/3" EXview HAD CCD II 960H | | Signal Processing | Sony DSP, Effio-E | | Effective Pixels (H x V) | 976 x 494 | | Scanning Area (H x V) | 0.22 x 0.18" (5.58 x 4.67 mm) | | Scanning System | 525 lines, 2:1 interlace | | Scanning Frequency | Horizontal: 15.734 KHz
Vertical: 59.94 Hz | | Synchronization | Internal | | Horizontal Resolution | 650 TVL | | Minimum Illumination | f/1.2; 2,850°K; 30 IRE
Color: 0.1 lux
Mono: 0.04 lux | | IR Cut Filter | Yes, D/N switch | | Low Light Capability | ICR | | Shutter | 1/50 to 1/10,000 sec | | Video Output | 1.0 Vpp, composite, 75 ohms, BNC connector | | White Balance | ATW/Manual/Push/Push Lock/User1/User3/Anti CR | | Signal to Noise Ratio | 48 dB (>52 dB by parameter adjustment) | | Lens | Varifocal | | F Number | f/1.2 | | Focal Length | 2.8 to 10.5 mm | | Focus Range | 1' (∞ to 0.3 m) | | Angle of View | Horizontal: 101.8° at 2.8 mm wide zoom;
27.4° at 10.5 mm telephoto zoom
Vertical: 73.7° at 2.8 mm wide zoom;
20.6° at 10.5 mm telephoto zoom | | Adjusting Angle | Panning Range: ±180°
Tilting Range: +90 to 0°
Rotation Range: ±180° | | Noise Reduction | 2D | | Motion Detection | Included (4 areas) | | Privacy Zone | Included (8 zones) | | Camera Titles | Included | | Alarm Out | 1 | | Power Requirement | 12 VDC/24 VAC 10 to -15%, 60 Hz | | Power Consumption | 2.5 W (without heater); 43 W (with heater on) | | Power Connector | 2-pin terminal block with screw terminals | | Video Connector | BNC | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | 20 to 80%, noncondensing | | Storage Humidity | 20 to 90%, noncondensing | | Impact Resistance | IK10 | | Certifications | CE, Class B
FCC, Class B
UL/cUL Listed
meets IP66 standards | | Back box | ABS plastic | | Bubble | Lightly obscured | | Dimensions (Diam. x Depth) | 5.32 x 4.30" (13.51 x 10.92 cm) | | Weight | 1.61 lb (0.73 kg) | | | | Package Weight | 2.39 lb | | Box Dimensions (LxWxH) | 6.6 x 6.55 x 6.4" |
