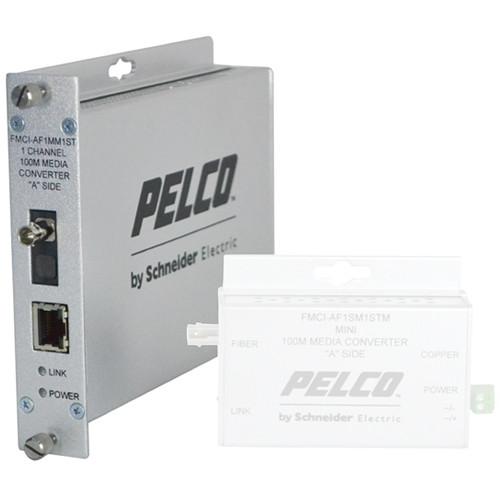

User Manual for Pelco FMCI Series FMCI-AF1MM1ST 10 100 Mbps Ethernet-Optical Fiber Media Converter with ST Connector Click to enlarge the picture
Contents of the user manual for the Pelco FMCI Series FMCI-AF1MM1ST 10 100
- Product category: Ethernet Media Converters Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Ethernet Media Converters
|
User manual for the Pelco FMCI Series FMCI-AF1MM1ST 10 100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The FMCI Series FMCI-AF1MM1ST 10/100 Mbps Ethernet-Optical Fiber Media Converter from Pelco is designed to transmit 10/100 Mbps data over multimode optical fiber with ST optical connector. The electrical interface will auto-negotiate to a 10 Mbps or 100 Mbps Ethernet rate without any adjustments and the optical interface operates at a 100 Mbps Ethernet rate. This FMCI series media converter is environmentally hardened to operate in extreme temperatures. LED indicators are provided for rapidly ascertaining equipment operating status and monitoring critical operating parameters. - 10/100 Mbps Ethernet (10Base-T/100Base-TX electrical port; 100Base-FX optical port)
- Electrical port supports auto-negotiation for 10 Mbps or 100 Mbps, full-duplex or half-duplex data
- Optical port supports 100 Mbps full-duplex data
- Automatic MDI/MDI-X (medium dependent interface/medium dependent interface crossover) operation
- Multimode fiber support for distances up to 2 miles
- Transparent to data encoding/compatible with major data protocols
- Designed to meet NEMA TS 1/TS 2, and Caltrans traffic signal control equipment environmental standards
- Flexible option for operating AC/DC power
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- No performance adjustments required
- LED status indicators for monitoring all critical and normal operating parameters
- Standard size is hot-swappable in the card cage
- Compliant with IEEE 802.3 standard
UPC: 700880322802 In the Box Pelco FMCI Series FMCI-AF1MM1ST 10/100 Mbps Ethernet-Optical Fiber Media Converter with ST Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco FMCI Series FMCI-AF1MM1ST 10 100 Mbps Ethernet-Optical Fiber Media Converter with ST Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco FMCI-AF1MM1ST Specs | | | Number of Channels | 1 | | Data Interface | Ethernet | | Data Rate | 10/100 Mbps | | Operating Mode | Electrical Port: Full duplex or half duplex Optical Port: Full duplex | | | | Connector | ST | | Number of Fibers | 1 | | Mode | Multimode | | Wavelength | 1310/1550 nm | | Power Budget | 10 dB | | Transmission Distance | 2 miles (3 km) | | | | Power Input | 8 to 24 VDC | | Current Protection | Automatic resettable (solid state current limiter) | | MTBF | >100,000 hours | | LED Indicators | Optical link, data; electrical link, data; power | | | | Connectors | Power: Terminal block
TCP/IP: Port RJ-45 | | Number of Rack Slots | 1 | | Certifications | CE, Class A; FCC, Class A; UL/cUL listed; C-Tick; RoHS; IEEE 802.3; designed to meet NEMA TS 1/TS 2 and Caltrans traffic signal control equipment environmental standards | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 0 to 95%, non-condensing | | Dimensions | 6.1 × 5.3 × 1.1" (15.5 × 13.5 × 2.8 cm) | | Weight | 1.0 lb (0.5 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.7 x 6.4 x 3.3" |
