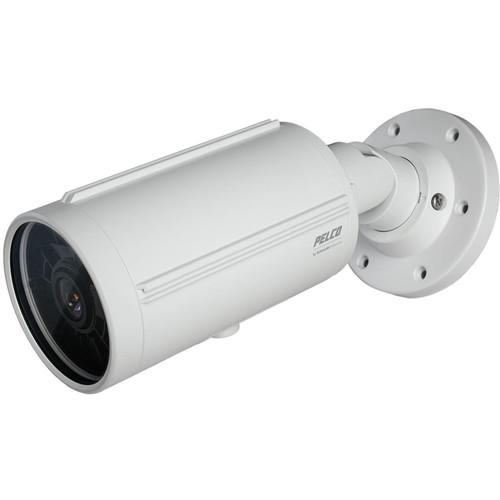

Product description The white IBP322-1I Sarix IBP Series 3MP Network Bullet Camera from Pelco features a 9-22mm remote zoom lens for wide angle or long range surveillance needs. Autofocus ensures the camera can be automatically refocused. Additionally, the camera offers optimal color accuracy and features a mechanical IR cut filter for continuous day/night surveillance. - Camera Highlights
-
- Offers frame rates up to 30 fps at 3 MP
- Autofocus motorized remote zoom lens
- Operating temperature up to 131°F
- Power over Ethernet (PoE) Class 3 input
- Supports 24 VAC/12 VDC dual voltage operation
- IK10-rated enclosure for vandal resistance
- Video Streaming
-
- Supports up to two simultaneous video streams and a third service stream
- Simultaneous video streams can be compressed with H.264 (High or Main profiles) or MJPEG formats
- Streams can be configured to a variety of frame rates and bit rates to optimize image quality for bandwidth and storage efficiency
- Edge Storage
-
- Offers up to 64GB onboard edge storage with a microSD card slot (card not included)
- Video clips of varying lengths can be stored to the card when an alarm is triggered
- Continuous footage can be recorded to the card in case of network outage
- Stored videos can be retrieved from the card through the FTP or by using an ONVIF Profile G enabled client
- Motion Detection
-
- Motion detection feature allows the camera to record or trigger an alarm when any motion is detected in a selected zone or within the scene
- Alarm Trigger
-
- A camera sabotage alarm is triggered if the lens is obstructed or when the camera is repositioned
- Open and Integrated
-
- Connects to Pelco video management systems such as VideoXpert, Endura version 2.0 (or later), and Digital Sentry version 7.3 (or later)
- Can be integrated with third-party systems through the open Pelco API or the ONVIF Profile S and Profile G standards
- Standard Web Interface
-
- Uses a standard web browser interface for remote setup and administration
- Controls are optimized for one-step camera configuration of features including color, exposure, flicker control, and streaming
UPC: 700880338223 In the Box Pelco IBP322-1I Sarix IBP Series 3MP Network Bullet Camera with 9-22mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco IBP322-1I Sarix IBP Series 3MP Network Bullet Camera with 9-22mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IBP Specs | | | Imaging Sensor | 1/2.8" CMOS progressive scan | | Maximum Resolution | 2048 x 1536 (3 MP) | | Electronic Shutter | 1/5 to 1/45,000 sec | | Wide Dynamic Range | 75 dB | | White Balance | 2,000 to 10,000K | | 3DNR | Yes (On/Off selectable) | | Signal to Noise Ratio | ≥50 dB | | Minimum Illumination | Color:
0.25 lux at f/1.2, 33 ms
0.02 lux at f/1.2, 200 ms
B&W:
0 lux with IR on | | Mechanical IR Cut Filter | Yes (Auto/Manual selectable), with different set points on lux | | | | Lens Type | Built-in; varifocal | | Focal Length | 9-22mm | | Aperture | f/1.4 | | Focus | Autofocus, motorized | | Zoom | Remote | | Auto Iris | DC drive lens | | Field of View | Diagonal: 41.5 to 17.1°
Horizontal: 32.7 to 13.7°
Vertical: 24.3 to 10.3° | | | | Video Streams | Up to 2 simultaneous streams and 1 service stream
Secondary stream is variable based on the setup of the primary stream | | Text Overlay | Camera name, time, date, and customizable text with multiple languages supported | | Available Resolutions | 2048 x 1536 | | Aspect Ratio | 4:3 | | Frame Rates | 30, 25, 20, 16.67, 15, 12.5, 10, 7.5, 5, 3, 2, 1 fps
These frame rates are selectable for each independent stream depending on the coding, resolution, and stream configuration. | | Video Encoding | H.264 High, Main, and Baseline profiles; and MJPEG | | Bit Rate Control | Constant bit rate (CBR)
Constrained variable bit rate (CVBR) with configurable maximum value | | View Mode | Corridor Mode:
Electronic Image Flip and Mirror: 180°, 90° and 270° (H.264 only) | | Streaming Mode | Secondary Stream: 640 x 480 or 640 x 352; 2 ips, JPEG | | Privacy Masking | 4 configurable windows | | | | Streaming | Dual-channel | | Input | Line in/terminal block | | Encoding | G.711 A-law/G.711 U-law | | | | Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), ICMP, IPv4, IPv6, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS, GB28181 | | Users | Unicast 1 administrator, up to 4 viewers
Multicast Unlimited users H.264 | | Security Access | Multiple user access levels with password protection | | | | Video Management Software | VideoXpert
Endura (version 2.0 or later)
Digital Sentry (version 7.3 or later)
Third-party VMS through Pelco API (version 1.0)
ONVIF Profile S, G, and Q | | Mobile Application Support | Pelco Mobile | | Analytics | Simple motion detection and camera sabotage detection | | Local Storage | Capture 1-, 5-, or 10-second video clips on camera sabotage, motion detection, or alarm input
Rrecord video continuously in the case of network outage with option to overwrite
Access video through FTP protocol and ONVIF Profile G | | Discovery | Discover cameras and upgrade firmware using Pelco Device Utility 2 version 2.2 or later
Cameras discovered and firmware upgraded through Endura Utilities | | Web Browser Support | Microsoft Internet Explorer 9.0, Apple Safari 7.0.6, Mozilla Firefox 31.0, Google Chrome 37.0.2062.124 m and later | | UI Language | English, French, German, Italian, Portuguese, Arabic, Russian, Spanish, Turkish, Korean, Simplified Chinese | | | | Network Port | RJ45 connector for 100Base-TX | | Power Input | PoE (IEEE 802.3af, Class 3)
24 VAC nominal, 18 to 32 VAC range, 12 VDC | | Power Consumption | <6 W | | Local Storage | Up to 64 GB on microSDHC or microSDXC card | | Alarm | Input: 1
Output: 1; PhotoMOS relay (30 V, 1 A)
Triggers: Unsupervised mode that detects switch closures (NO and NC) | | | | Operating Temperature | -14 to 131°F (-10 to 55°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | 15 to 85%, RH condensing | | Storage Humidity | 5 to 90%, RH non-condensing | | | | Construction | Die cast aluminum, cylindrical | | Vandal Resistance | IK10 (20J impact) per IEC 62262 | | Finish | White, RAL 9003 | | Certifications | CE - EN 55022 (Class A), EN 50130-4, EN 60950-1
FCC (Class A) - 47 CFR Part 15
UL and cUL Listed - UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
UL/IEC 60950-22
ICES-003 (Class A)
RCM
KC
ONVIF Profile S, G, and Q conformant | | Dimensions (Ø x L) | 10.3 x 4.53" (26.3 x 11.5 cm) | | Weight | 4.42 lb (2 kg) |
