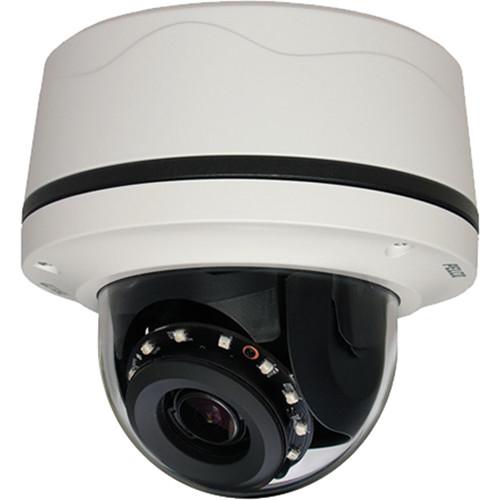

User Manual for Pelco IMP321-1ES 3MP Outdoor Network Mini Dome Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the Pelco IMP321-1ES 3MP Outdoor Network Mini
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco IMP321-1ES 3MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The IMP321-1ES from Pelco uses a 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at up to 30 fps. IR LEDs provide up to 82' of night vision. A 3-10.5mm motorized varifocal lens delivers an 88-30° horizontal field of view. Two-way audio communication is possible thanks to an audio line in and a line out. An onboard memory card slot accepts microSD cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by transferring power and data through a single cable.
This camera is ONVIF-compliant for profiles S, G, and Q, making it compatible with a wide range of surveillance devices. It is equipped with a heater ring, and its enclosure is rated IP66 and IK10 for outdoor use in areas at risk of vandalism. - IR cut filter for day and night functionality
- Up to 2 simultaneous streams and a service stream
- H.264 and MJPEG video compression
- Pelco's Smart Compression Technology reduces bandwidth and storage requirements by up to 70%
- Unicast with 1 admin and up to 4 viewers
- Multicast with unlimited users in H.264
- Camera pivots up to 370° horizontally & up to 90° vertically
- Wide dynamic range, backlight compensation, white balance, and 3D-DNR
- Motion and camera sabotage detection
- Electronic image flip & mirror for 180, 90, and 270°
- Window blanking for 8 configurable windows
- Alarm trigger has an unsupervised mode that detected switch closures (NO/NC)
- Pelco mobile app for iOS and Android
- Compatible with Microsoft Internet Explorer 9.0, Safari 7.0.6, Firefox 31.0, Chrome 37.0.2062.124 m or later, VideoXpert, Endura 2.0 or later, Digital Sentry 7.3 or later, third-party VMS via Pelco API & ONVIF profiles S, G, and Q
UPC: 700880338360 In the Box Pelco IMP321-1ES 3MP Outdoor Network Mini Dome Camera with Night Vision & Heater Limited 3-Year Warranty Specification PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco IMP321-1ES 3MP Outdoor Network Mini Dome Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IMP Specs | | | Sensor | 3.1 MP 1/2.8" CMOS | | Focal Length | 3 to 10.5mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 3.5x | | Lens Field of View | Horizontal: 88 to 30°
Vertical: 52 to 16°
Diagonal: 115 to 34° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.03 Lux
B&W: 0 Lux | | Shutter Speed | 1/45,000 to 1/5 Seconds | | | | Streaming Resolution | 2048 x 1536 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711 | | | | Security | HTTPS, Password Protection | | Supported Protocols | DNS, FTP, GB28181, HTTP, ICMP, IGMP, IPv4/v6, LDAP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco API, ONVIF Profiles S, G, and Q | | Analytics | Motion Detection
Camera Sabotage Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 82.02' / 25 m | | Video Management Software | VideoXpert
Endura 2.0 or Later
Digital Sentry 7.3 or Later
Third-Party VMS via Pelco API & ONVIF Profiles S, G & Q | | Supported Languages | Arabic
English
French
German
Italian
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Turkish | | Internal Storage | None | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | 16 W (With Heater) | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 5 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
