User Manual for Pelco Indoor Medium Size High Security Enclosure with Tamper Switch Click to enlarge the picture
Contents of the user manual for the Pelco Indoor Medium Size High Security
- Product category: Housings Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Housings
|
User manual for the Pelco Indoor Medium Size High Security contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|

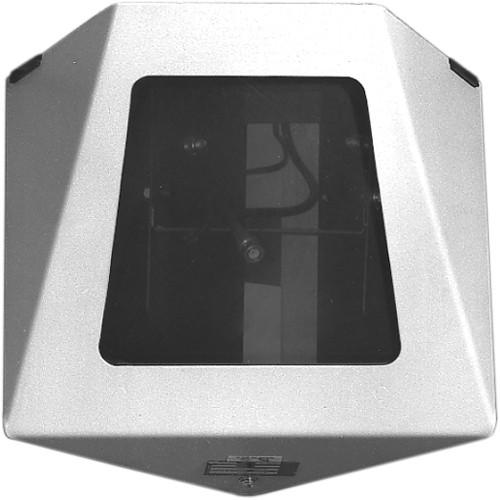

Product description The Pelco Indoor Medium Size High Security Enclosure with Tamper Switch is intended for applications which require utmost protection from vandalism, like parking garages, classrooms, elevators, etc. The Enclosure is designed for installation in the corner of a ceiling. An optional hood (HS1500H) is offered with the High Security Enclosure for getting it mounted on the wall without any compromise to the security. In addition to its heavy gauge steel construction, this unit incorporates a Lexan viewing window, resistant to impact and scratching. The mounting hardware which secures the High Security enclosure to its mounting surface remains concealed. The enclosure can be opened only after removing the tamper-resistant screw from the bottom using a specially designed tool (included). This prevents handling of the Enclosure by unauthorized personnel.
Another major feature of this enclosure is its built-in tamper switch that incorporates a "pull-to-cheat" mechanism connected to an 125VAC, N.O./N.C. switch contact. When connected to an alarm or other external device, this tamper switch will alert an operator to a possible camera tampering. - Indoor, Corner Mount Applications
- No Exposed Mounting Hardware
- Tamper Switch Standard Feature
UPC: 700880015988 In the Box Pelco Indoor Medium Size High Security Enclosure with Tamper Switch Allen Wrench 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Indoor Medium Size High Security Enclosure with Tamper Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco HS1500 Specs | Indoor/Outdoor | Indoor | | Mount Type | Corner ceiling | | Compatible Cameras | Fixed CCTV camera | | Clear or Tinted | Clear | | Maximum Camera/Lens Size | (WxHxD) 4 x 4 x 8" (10.2 x 10.2 x 20.3cm) | | Construction | Body: 0.134" (3.40 mm) formed, 10-gauge steel
Window: 0.50" (12.7 mm) thick Lexan
Tamper Switch: Plunger type door switch with "pull-to-cheat" feature. DM electrical rating 10A, 125 VAC. N.O./N.C. switch contact | | Operating Temperature | Indoor; 32 to 120°F (0 to 49°C) | | Dimensions (WxHxD) | 13.1 x 10 x 12.3" (33.4 x 25.4 x 31.1cm) | | Weight | 17.4 lbs (7.9kg) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 11.5 x 11.5 x 11.5" |
