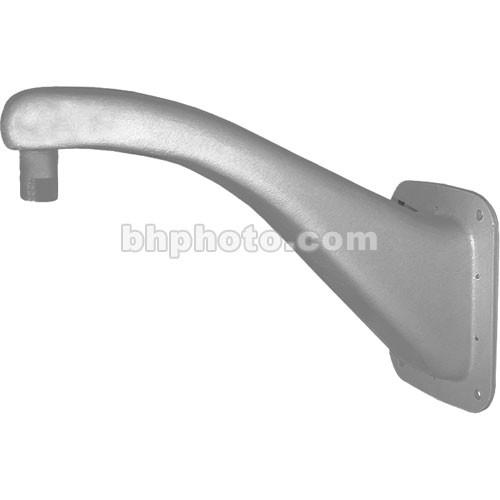

User Manual for Pelco IWM Series IWM-GY Wall Mount for Spectra, DF5, DF8, & Sarix IE Series Domes Click to enlarge the picture
Contents of the user manual for the Pelco IWM Series IWM-GY Wall Mount
- Product category: Mounting Hardware Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Mounting Hardware
|
User manual for the Pelco IWM Series IWM-GY Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The gray IWM Series IWM-GY Wall Mount from Pelco is designed primarily for use with Pelco Spectra, DF5, DF8, and Sarix IE series pendant domes. It can also be used with other pendant domes that require 1.5" NPT pipe thread for installation and accepts a variety of Pelco pendant back box models. The mount can support up to 75 lb and can be attached directly to any vertical load-bearing surface. It features a feed-through opening in the mounting surface for easy routing of video and power cables. The mount is constructed of cast aluminum and comes in a gray finish. Note: Requires the IE-P pendant mount adapter (available separately) for use with Sarix IE series dome cameras. - Sturdy & Convenient
- For use with Spectra, DF5, DF8, and Sarix IE Series Domes
- Can also be used with other pendant domes using 1.5" NPT threaded pipe
- Threaded pipe for mounting
- Constructed of cast aluminum
- Mounts directly to vertical load-bearing surface for wall mount applications
- Features cable feed-through hole
- Gray polyester powder-coat finish
UPC: 700880017593 Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco IWM Series IWM-GY Wall Mount for Spectra, DF5, DF8, & Sarix IE Series Domes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco IWM Specs | Mounting | Secure with four 3/8" fasteners suitable for the mounting surface
Dome screws directly into mount Fasteners available separately. | | Cable Entry | One cable feed-through hole in mounting plate | | Weight Capacity | 75 lb (34 kg) | | Effective Projected Area (EPA) | Approximately 48 in2 (309.7 cm2) | | Construction | Cast aluminum | | Environment | Indoor / outdoor | | Certifications & Ratings | UL/cUL listed
Meets NEMA Type 4 standards | | Dimensions | 14.7 x 8.0 x 5.5" (37.2 x 20.3 x 14.0 cm) | | Weight | 2.46 lb (1.12 kg) | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 19.3 x 9.2 x 8.3" |
