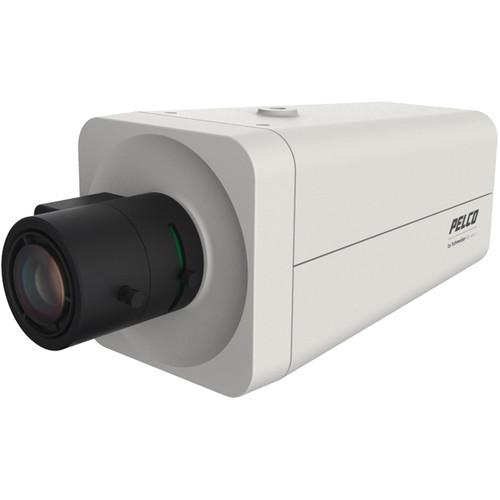

User Manual for Pelco IXP31 Sarix 3 MP H.264 Indoor Day Night Fixed Box IP Camera with Auto Back Focus Click to enlarge the picture
Contents of the user manual for the Pelco IXP31 Sarix 3 MP H.264
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco IXP31 Sarix 3 MP H.264 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco IXP31 Sarix 3 MP H.264 Indoor Day/Night Fixed Box IP Camera with Auto Back Focus comes equipped with a 1/3" CMOS sensor that capture clear images up to resolution of 3 MP. The box camera features an auto back focus (ABF) mechanism to accommodate standard CS-mount MP lenses for wide-angle or long-range surveillance needs. Additionally, the Sarix IXP camera features advanced color science and a mechanical IR cut filter for increased sensitivity in low-light installations.The camera supports up to two simultaneous video streams and a third service stream. The two streams can be compressed with efficient H.264 high or main profiles or MJPEG formats. The streams can be configured to a variety of frame rates and variable bit rates to optimize image quality with bandwidth and storage efficiency.The camera features onboard edge storage to a microSD card (not included). Video clips of varying lengths can be stored to the card upon alarm, or video can be written continuously to the SD card in the case of network outage. Video can be retrieved from the card through the FTP protocol, and the solution will support ONVIF Profile G in the future for integration with video management systems.The camera incorporates a simple motion detection algorithm, allowing the camera to record or send an alarm when there is motion in a selected zone or within the entire scene. A camera sabotage alarm is triggered if the lens is obstructed or when the camera is repositioned.The camera seamlessly connects to Pelco video management systems such as Endura version 2.0 (or later) and Digital Sentry version 7.3 (or later). The camera integrates with major third-party video management systems through the Pelco API and other third-party software and systems through the open ONVIF Profile S standard.The camera deploys a standard web browser interface for easy remote setup and administration. Controls are optimized for convenient one-step camera configuration for features including color, exposure, flicker control, and streaming. A one-click shutter allows you to capture sharp JPEG snapshots of the live view for documenting, positioning, or easy event recording. Note: Lens is sold separately. - 3 MP resolution with up to 20 images per second (ips) at 1080p
- Multiple CS-mount lens options 1
Please Note: Lens is sold separately. close - Accessible edge storage with microSD card (not included)
- Motion detection and camera sabotage analytics
- Operating temperature from 14 to 122°F (-10 to 50°C)
- Power over Ethernet (PoE) and 24 VAC power input
- Compatible with Pelco and 3rd party video systems
- ONVIF Profile S Conformant
UPC: 700880324936 In the Box Pelco IXP31 Sarix 3 MP H.264 Indoor Day/Night Fixed Box IP Camera with Auto Back Focus Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco IXP31 Sarix 3 MP H.264 Indoor Day Night Fixed Box IP Camera with Auto Back Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco IXP31 Specs | | | Imaging Device | 1/3" | | Resolution | 2048 x 1536 (3 MP) | | Imager | CMOS | | Imager Readout | Progressive scan | | Electronic Shutter | 1/5 to 1/10,000 sec | | Dynamic Range | 65 dB | | White Balance | 2,500 to 8,000°K | | Digital Noise Reduction (DNR) | Yes (ON/OFF selectable) | | Minimum Illumination | f/1.2
Color: 33 ms: 0.3 lux, 200 ms: 0.02 lux
Mono: 33 ms: 0.1 lux, 200 ms: 0.01 lux | | Mechanical IR Cut Filter | Yes (AUTO/MANUAL selectable), with different set points on lux | | Lens Mount | CS mount; adjustable Lens is not included. | | Auto Iris | DC drive | | Focus | Auto back focus | | | | Video Streams | Up to 2 simultaneous streams, plus service stream; the secondary stream is variable based on the setup of the primary stream | | Video Overlay | Camera name, time, date | | Available Resolutions | 4:3 Aspect Ratio
2048 x 1536 (3.1 MP), 1600 x 1200 (1.9 MP), 1280 x 960 (1.2 MP), 800 x 600 (0.5 MP), 640 x 480 (0.3 MP), 320 x 240 (0.1 MP)
16:9 Aspect Ratio: 1920 x 1080 (2.1 MP), 1280 x 720 (0.9 MP), 1024 x 576 (0.6 MP), 320 x 180 (0.1 MP) | | Frame Rates | 20 (full), 16.67, 15, 12.5, 10, 5, 1 ips Available frame rates are selectable for each independent stream depending on the coding, resolution, and stream configuration. | | Video Encoding | H.264 high or main profiles; and MJPEG | | Bit Rate | Constrained bit rate (CBR), variable bit rate (VBR) with target range | | Streaming | 320 x 240 or 320 x 180; 2 ips, MJPEG | | Snapshot | JPEG capture at resolution of live view stream | | Masking | 4 configurable windows | | | | Port | RJ-45 connector for 100Base-TX | | Power Input | PoE (IEEE 802.3af, Class 3), 24 VAC nominal, 18 to 32 VAC range | | Power Consumption | 8 W | | Local Storage | Up to 32 GB on Micro SDHC or SDXC card (sold separately) | | Alarm | Input: 1
Output: 1; PhotoMOS relay (30 V, 1 A)
Triggers: Unsupervised mode that detects switch closures (N.O. and N.C.) | | | | Streaming | Dual-channel | | Input | Line in/terminal block | | Output | Line out/terminal block | | Encoding | G.711 A-law/G.711 U-law | | | | Supported Protocols | TCP/IP, UDP, ICMP, IPv4, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, and LDAP | | Users | Unicast: 1 administrator, up to 4 viewers
Multicast: Unlimited users H.264 | | Security Access | Multiple user access levels with password protection | | | | Video Management Software | Digital Sentry 7.3 (or later); Endura 2.0 (or later); Third-party VMS through Pelco API 1.0 and ONVIF Profile S | | Mobile Application Support | Integrated to Pelco Mobile App | | Analytics | Simple motion detection and camera sabotage | | Local Storage | Capture 5- or 10-second video clips on camera sabotage, motion detection, or alarm input; record video continuously in the case of network outage with option to overwrite; access video through FTP protocol | | Firmware | Cameras discovered and firmware upgraded through Pelco Device Utility 2 version 2.2; cameras discovered and firmware upgrade through Endura Utilities | | Web Browser | Microsoft Internet Explorer 8.0 and later | | Certifications | CE - EN 55022 (Class A), EN 50130-4, EN 60950-1
FCC (Class A) - 47 CFR Part 15
UL and cUL Listed - UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
ICES-003
KCC
NOM | | | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | 15 to 85%, RH noncondensing | | | | Construction | Aluminum and polycarbonate | | Finish | White, RAL 9003; satin texture | | Dimensions (Ø x L) | 2.75 x 5.51" (7 x 14 cm) | | Weight | 3.89 lb (1.76 kg) without lens |
