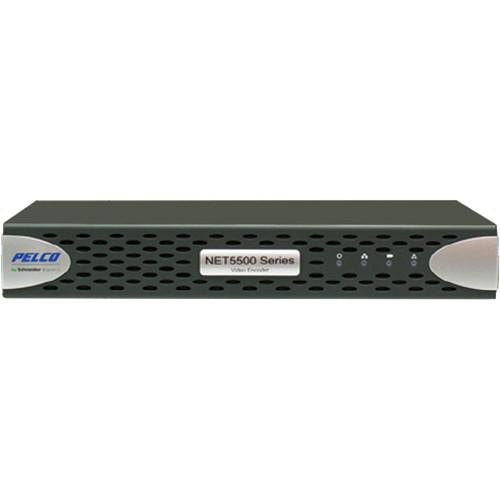

User Manual for Pelco NET5500 Series NET5504US 4-Channel H.264 Based Network Video Encoder Click to enlarge the picture
Contents of the user manual for the Pelco NET5500 Series NET5504US 4-Channel H.264
- Product category: Video Encoders & Decoders Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Video Encoders & Decoders
|
User manual for the Pelco NET5500 Series NET5504US 4-Channel H.264 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The NET5500 Series NET5504US 4-Channel H.264 Based Network Video Encoder from Pelco is a high performance, single-channel to multi-channel video encoder that integrates analog cameras and positioning systems into an IP video surveillance system. The NET5504US encoder delivers clear images while drastically reducing the network bandwidth and storage requirements for IP video surveillance applications.The NET5504US Encoder is capable of compressing a single video input into two streams, each up to D1 (720 x 480 for NTSC and 720 x 576 for PAL) and 30/25 ips. With individually configurable streams, each channel of the encoder can be configured to meet differing bandwidth, resolution, and frame rate requirements.The High profile H.264 compression option delivers remarkable picture quality at a low bandwidth. While H.264 compression provides significant bit rate savings over JPEG compression schemes, High profile H.264 enables further reduction of bit rate, also improving picture quality under certain scene conditions. The NET5504US Encoder provides Baseline, Main, and High profile H.264 compression to optimize the cost of deploying IP video surveillance while also improving image quality. The encoder includes analytics capabilities such as Motion and Sabotage detection. - 4-channel rack mount chassis
- Open standards-based architecture
- MJPEG and H.264 Baseline, Main, or High profile compression
- Dual-stream at up to D1; 30/25 images per second (ips) per stream
- Integrated Coaxitron and Pelco D and Pelco P PTZ protocols
- ONVIF Profile-S Conformant
UPC: 700880332474 In the Box Pelco NET5500 Series NET5504US 4-Channel H.264 Based Network Video Encoder Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco NET5500 Series NET5504US 4-Channel H.264 Based Network Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco NET5504US Specs | Operating System | Linux | | Media Player | Pelco Media Player 1.9.5.1 or QuickTime | | Video Standard | NTSC/PAL | | Video Encoding | MJPEG and H.264 Baseline, Main, and High profiles | | Interoperability | ONVIF Profile S | | Video Streams | 3 interdependent configurable video streams per video channel; up to 2 unicast streams; unlimited multicast streams | | Supported Resolutions | D1: 720 x 480
4CIF: 704 x 480
2CIF: 704 x 240
CIF: 352 x 240 | | Frame Rates | Up to 30 fps | | Video Input | BNC, 1 Vpp ±10%; Hi-Z / 75 ohms | | Video Looping | Yes | | Audio Inputs | 4 | | Audio Encoding | G.711 | | Audio Bit Rate | 64 kb/s | | Audio Input Connectors | Line-in 3.5 mm connector | | Alarm Inputs | 4 | | Relay Outputs | 1 | | Analytics | Motion and Sabotage | | PTZ | Coaxitron, RS-422, RS-485 | | PTZ Protocols | Pelco D and Pelco P, Coaxitron, Extended Coaxitron | | Indicators | Power: Green when powered on
Status: Green, amber, red (based on diagnostics)
Ethernet: Green, amber, red
Video: Green, red, off | | Network Interface | RJ-45 100 Mb/s | | Network Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, LDAP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, and 802.1x (EAP) | | Video Management Software | Digital Sentry 7.3 (or later); Endura 2.0 (or later);
Third-party VMS through Pelco API and ONVIF Profile S | | Web Browser | Microsoft Internet Explorer 8 or later, Firefox, Chrome, Safari | | Input Power | 12 VDC, 1.25 A adapter | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -58 to 185°F (-50 to 85°C) | | Operating Humidity | 0 to 80%, non-condensing | | Construction | Metal, plastic | | Finish | Gray polyester powder coat | | Dimensions (D x W x H) | 6.3 x 9.5 x 1.7" (16 x 24 x 4.4 cm) | | Weight | 2.36 lb (1.07 kg) | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 11.732 x 8.74 x 6.85" |
